Home ProductsIP68 & IP69K Nylon (Polyamide / Plastic) Cable Glands

PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic)

Good quality IP69K / IP68 Metal Brass Cable Glands (Cord Grips) for sales
Good quality IP69K / IP68 Metal Brass Cable Glands (Cord Grips) for sales
I'm Online Chat Now

PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic)

China PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic) supplier
PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic) supplier PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic) supplier

Large Image :  PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic)

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, ROHS, PAHS, REACH, SGS, IP68, IP69K
Model Number: M10x1~M75x2 / PG7~PG48

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: very competitive prices
Packaging Details: standard export packing (special packing also available on request)
Delivery Time: normally 5-8 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 5000000pcs / month
Contact Now
Detailed Product Description
Size: Full Sizes Protection Level: IP68
Material: UL-recognized Polyamide 66, 94V-2 Standard Colors: Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request)
Thread System: PG Thread (according To DIN40430) & Metric Thread (according To EN60423) Quality Grade: High Quality (8-15 Years Of Long Life For Indoor Application)
Main Advantages: Waterproof & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, UV Stabilized, An

PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic)

Applications:
PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic) are widely applied for connecting and securing cables or wires to provide effecitve protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.

Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.

About us:
We are one of the most professional manufacturer of Cable Glands in China. Currently we manufacture and export Nylon Cable Glands & Metal Cable Glands with PG, Metric, NPT, G, BSC & BSP Threads. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!

Descriptions:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic)
Sizes available:

* PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48

* M10x1, M12x1.5, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M24x1.5, M25x1.5, M27x1.5, M30x1.5, M32x1.5, M36x1.5, M40x1.5, M50x1.5, M63x1.5, M75x2

Raw material: UL-approved new Polyamide 66, flammability 94V-2 for Sealing Nut, Locknut & Body (94V-0 material is optional)
NBR or weatherproof EPDM rubber for Seal & Washer (O-ring)
Standard colors: Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request)
Certifications: CE, ROHS, PAHS, REACH, SVHC, SGS, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the Washer or O-ring)
Thread lengths: Short thread & long thread are available
Thread system: PG: according to the standard DIN40430 & Metric: according to the standard EN60423
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
Quality grade: High quality can last 8-12 years of long service life for indoor applications (ordinary quality is available on request)
OEM service: Yes, available
Supply capability: 5,000,000 pieces per month
Minimum quantity: 500 pieces
Samples available: Free samples available upon request
Delivery time: Normally 5-7 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing: 100 pieces / bag, 100pieces /color box, special packing can be customized as requested

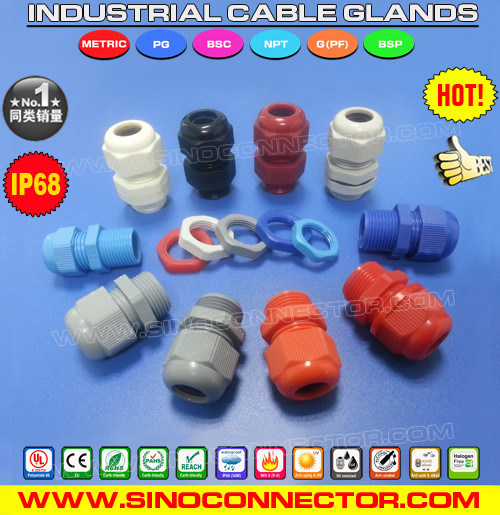

Pictures:

PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic)

Product Packing:
PG and Metric Cable Cord Grips IP68 / IP69K Polyamide (Nylon / Plastic)
