| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| Model Number: | PG, Metric, NPT series |
| Minimum Order Quantity: | 500 pieces |
| Price: | at very competitive prices from direct factory |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 5000000 units / month |
| Material: | UL-approved Nylon, 94V-2 | Standard Colors: | Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request) |
|---|---|---|---|
| Size: | Full Sizes | Protection Level: | IP68 |
| Connection Thread Type: | PG Thread, Metric Thread, NPT Thread | Quality Grade: | High Quality (8-15 Years Of Long Life For Indoor Application) |
| Main Advantages: | Waterproof & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, UV Stabilized, An |
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |

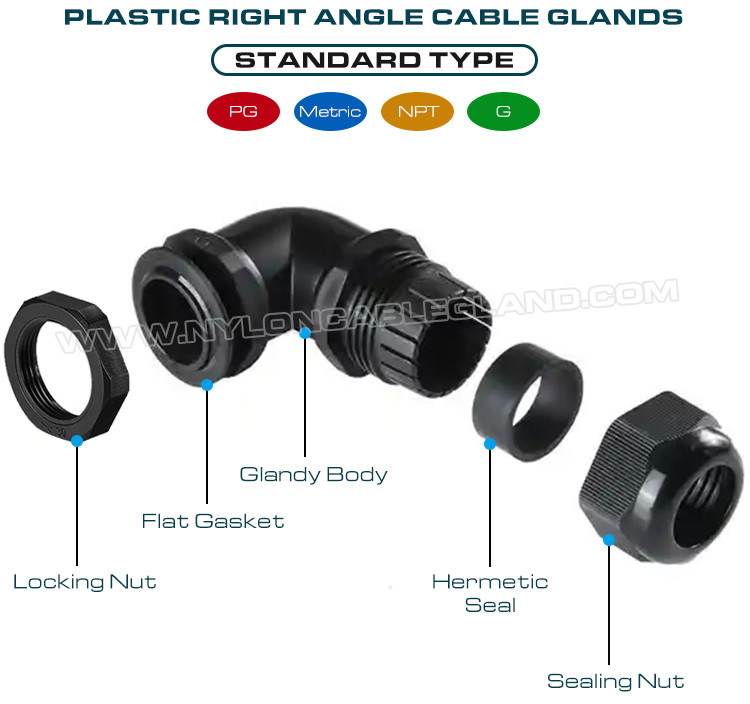

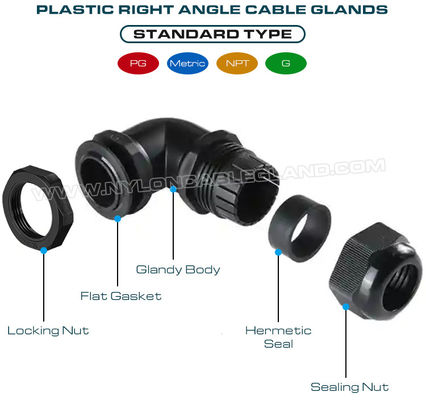

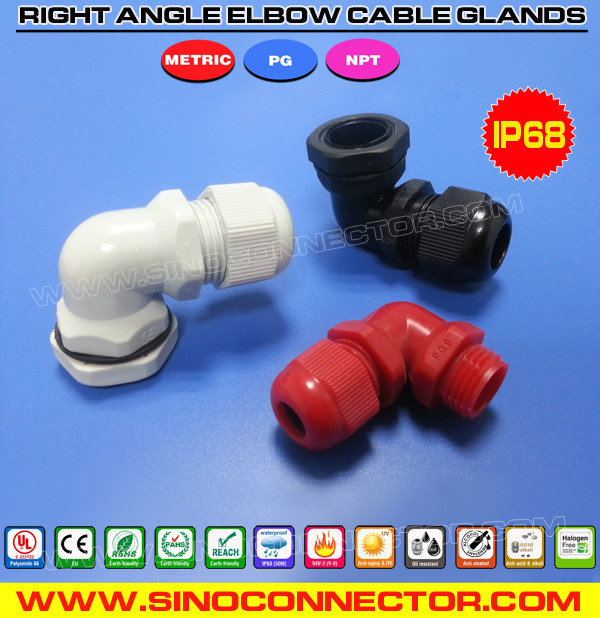

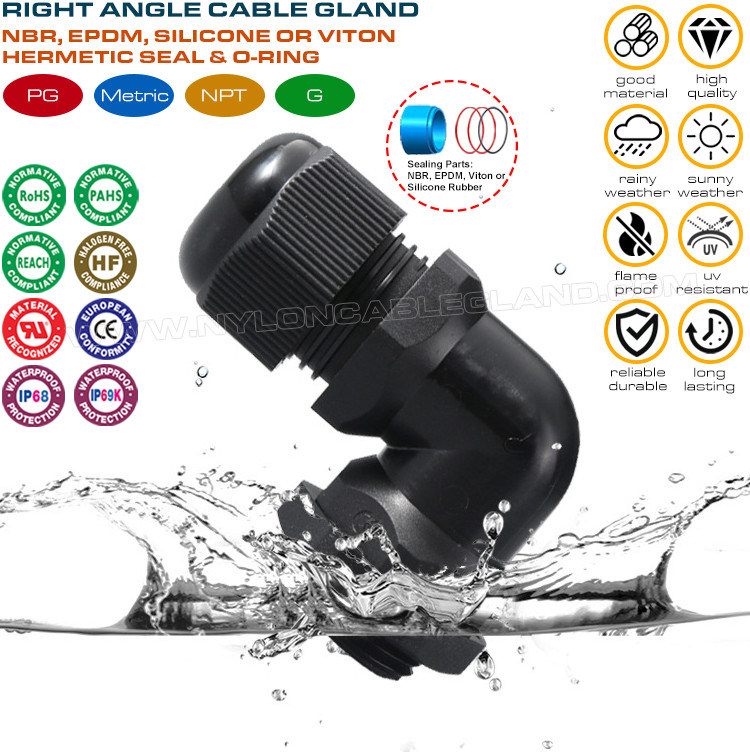

| Product name: | IP68 Right Angle (Elbow) Plastic Cable Glands PG9~PG29 / M16~M32 / NPT3/8"~NPT1" with PG, Metric & NPT Threads |
| Sizes available: | * PG9, PG11, PG13.5, PG16, PG21, PG29. * M16x1.5, M18x1.5, M20x1.5, M22x1.5, M25x1.5, M32x1.5. * NPT3/8", NPT1/2", NPT3/4", NPT1". |
| Raw material: | UL-approved new Polyamide 66, flammability 94V-2 for Spiral Protector, Locknut & Body (contact us for 94V-0 material). |
| NBR rubber or Weatherproof EPDM rubber for Seal & Washer (O-ring) | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (special colors can be customized according to customer's request) |
| Main advantages: | Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer / O-ring) |
| Thread lengths: | Normal lengths are available |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications. |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
