IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief

Good quality IP68 & IP69K Metal (Brass) Cable Glands for sales
Good quality IP68 & IP69K Metal (Brass) Cable Glands for sales
I'm Online Chat Now

IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief

China IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief supplier
IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief supplier IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief supplier

Large Image :  IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, SGS, IP68
Model Number: NPT & G Series

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: very competitive prices
Packaging Details: standard export packing (special packing also available on request)
Delivery Time: normally 8-10 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 2000000pcs / month
Contact Now
Detailed Product Description
Material: Seal & O-ring: NBR ( EPDM Or Silicon Rubber Is Optional) Colors: Metallic Silver
IP Rated: IP68 (when The Cable Diameter Is Within The Cable Range And Assemble The O-ring)

IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief !

Applications areas:
IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief is mainly used for connecting and securing flexible cables or wires to provide an extra protection against pull-out & traction, dust, water, oil, etc. With its outstanding ability in weather resistance, wide clamping range, strong strain relief, high sealing performance, such glands are widely used in the electrical distribution boxes/ cabinets, moving machines parts, automatic control, plant engieering, etc.


How to use:
Mount gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position, finally tighten the two clamping screws.


Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.

About us:
We are one of the most professional manufacturer of Cable Glands in China. Currently we manufacture and export Nylon Cable Glands & Metal Cable Glands with PG, Metric, NPT, G, BSC & BSP Threads. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!

Description:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief
Sizes available:

* NPT3 / 8", NPT1 / 2", NPT3 / 4", NPT1", NPT1-1/4", NPT1-1/2"

* G1 / 4", G3 / 8", G1 / 2", G3 / 4", G1", G1-1 / 4", G1-1 / 2", G2"

Raw material: Nickel-plated Brass for Locking Nut, Sealing Nut & Body
UL-approved nylon 66, 94V-2 for Clamping Claw
NBR for Seal & O-Ring (also available in weatherproof EPDM rubber or Silicone rubber)
Standard colors: Metallic color
Main advantages: Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, SGS, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths: Short thread & long thread are available
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
OEM service: Yes, available
Supply capability: 2,000,000 pieces per month
Minimum quantity: 200 pieces
Samples available: Free samples available upon request
Delivery time: Normally 8-10 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air
Export packing: 100 pieces / bag, 50pieces /color box, special packing can be customized as requested

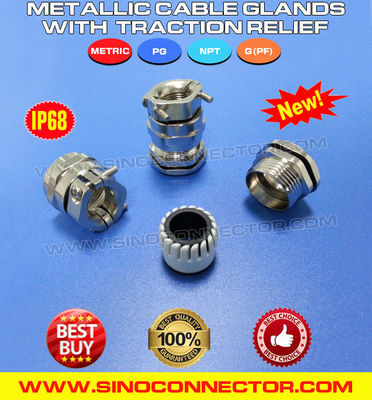

Pictures:
IP68 Waterproof Brass Cable Gland with Stress Relief / Tension Relief
