| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| Model Number: | NCG Series |
| Minimum Order Quantity: | 500pcs |
| Price: | very competitive prices |
| Packaging Details: | 100pcs per bag & 50pcs per bag & 10pcs per bag |
| Delivery Time: | normally 8-10 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 5000000pcs / month |
| Raw Material: | UL-approved Polyamide 66, 94V-2 (available In 94V-0) | Seal & Washer (O-ring): | Oil-resistant NBR (available In Weatherproof EPDM Or Silicone Rubber) |
|---|---|---|---|
| Standard Colors: | Light-grey RAL7035, Black RAL9005 (other Colors Can Be Customized On Request) | Sizes: | G1/4", G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2" |
| IP Protection: | IP68 (when The Cable Diameter Is Within The Cable Range And Assemble The Washer Or O-ring) | Thread: | According To ISO228-1/JIS B 0202 |
| Test Standard: | In Accordance With EN50262 | Quality Grade: | High Quality, It Can Last 6-12 Years For Outdoor Use |

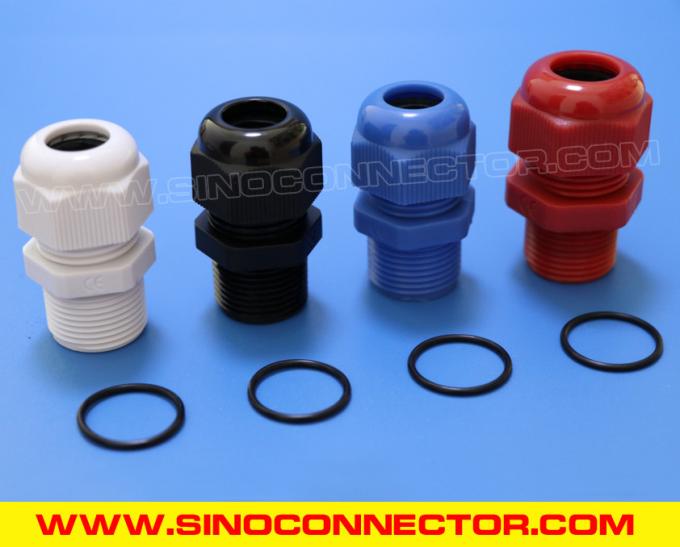

Our Cable Glands are manufactured from high quality materials including Nylon, Nitrile, EPDM, Viton, FKM Rubber. Produced in a variety of thread sizes including Metric, PG, NPT, G, BSC and BSP, these cable glands are supplied with matching locknuts, are available in a range of RAL colours including Black, Grey, White, Blue, Red, Yellow & Green.
These Cable Sealing Glands are used to prevent ingress of water, they are an excellent cable management product with an IP68 waterproof rating, simultaneously protecting cables and preventing ingress.
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | IP68 Version Watertight Non-Armoured Insulated Straight Electrical Cable Glands with G Screw Thread |
| Sizes available: | G1/4", G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2" |
| Raw material: | UL-approved new Polyamide 66, 94V-2 for Sealing Nut, Locknut & Body (contact us for 94V-0 material) |
| NBR rubber for Seals & Washers | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Main advantages: | Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range, the anti-vibration sealing nut making a "click" sound provides anti-vibration mechanism and firmly holds and protects cables from becoming loose during the operation. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | Short thread and long thread are available |
| Thread system: | According to ISO228-1/JIS B 0202 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 or 50 pieces / bag, 100pieces /color box, special packing can be customized as requested |
