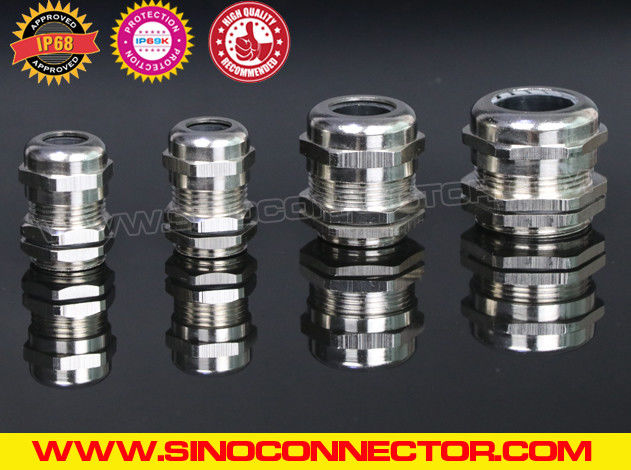

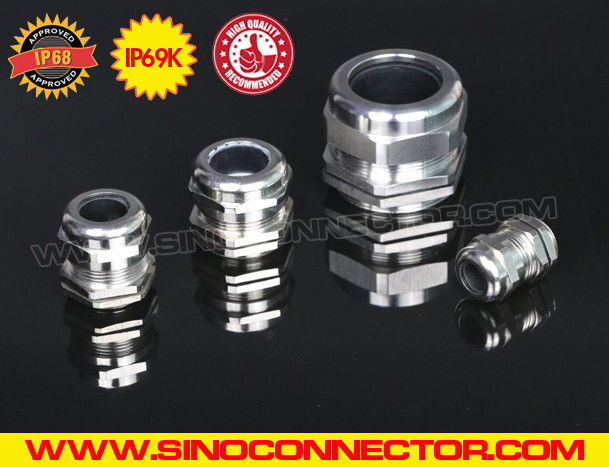

Cable Glands Metallic Standard IP69K / IP68 with Metric Connection Thread
Application Areas:
Cable Glands Metallic Standard IP69K / IP68 with Metric Connection Thread have the features of high impact resistance, wide clamping range, optimum strain relief, high sealing performance & high security and stability, they are widely applied in the fields of electrical and electronic technologies, telecommunications, wireless networking ODUs, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, machineries, meters and instruments, etc.
About Us:
We are one of the most professional manufacturer of Cable Glands & Cable Accessories in China. Currently we manufacture and export Nylon Cable Glands and Metal Cable Glands with PG, Metric, NPT, G, BSC and BSP Threads. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions.
Descriptions:
| Brand name: |
Sino Cable Gland Factory |
| Place of origin: |
Zhejiang, China |
| Product name: |
Cable Glands Metallic Standard IP69K / IP68 with Metric Connection Thread |
| Sizes available: |
M8,M10,M12,M16,M18,M20,M22,M25,M30,M32,M35,M40,M50,M63,M75,M80,M90,M100 |
| Raw material: |
Nickel-plated brass for Locking Nut, Sealing Nut and Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw |
| NBR for Seal and O-Ring (available in EPDM or Silicone rubber) |
| Standard colors: |
Metallic silver color |
| Certifications: |
CE, SGS, IP68, IP69K |
| IP protection: |
IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Lengths of thread: |
Short thread and long thread are available |
| Thread system: |
According to EN60423 |
| Operation temp.: |
Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM services: |
Yes, available |
| Supply capability: |
3000000 pieces per month |
| Minimum quantity: |
200 pieces |
| Samples available: |
Free samples are available upon request |
| Delivery time: |
Normally 5-7 days after confirmation of orders |
| Payment terms: |
T/T in advance, Western Union, L/C at sight |
| Shipment terms: |
Shipment by EMS / TNT / DHL / UPS / FEDEX, by sea or by air |
| Export packing: |
100 pieces per bag, 50 pieces per color box, special packing can be customized as requested |
