| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, REACH, IP68, IP69K |
| Model Number: | Metric series |
| Minimum Order Quantity: | 200 pieces |
| Price: | very competitive prices from factory |
| Packaging Details: | standard packing (special packing is also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 3000000 pieces per month |
| Features: | Weather And Ultraviolet Resistance, Acid & Corrosion Resistance, Etc | Material: | Brass Or Copper |
|---|---|---|---|
| Seal & O-ring: | NBR, EPDM Or VITON Rubber | Plastic Insert: | UL-approved PA6, 94V-2 |
| Surface: | Nickel-plating | Color: | Metallic Tone |
| Protection: | IP68 / IP69K | Product Name: | Brass Cable Gland / Metal Cable Gland |
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |

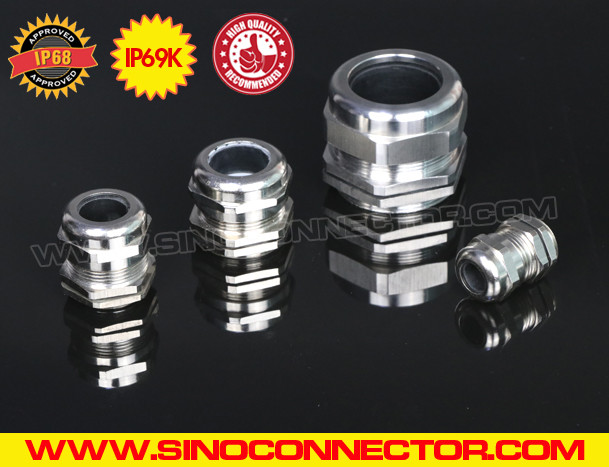

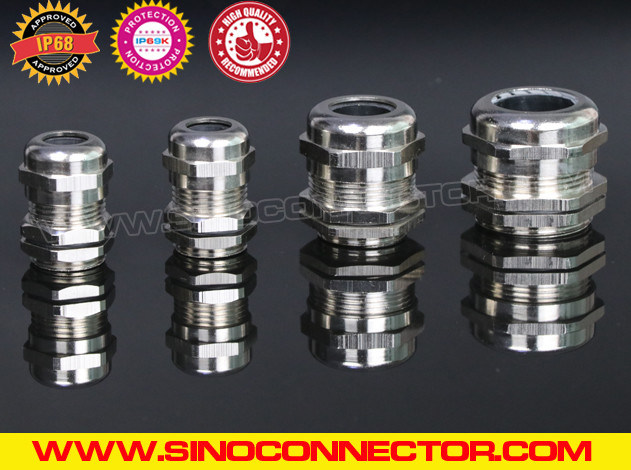

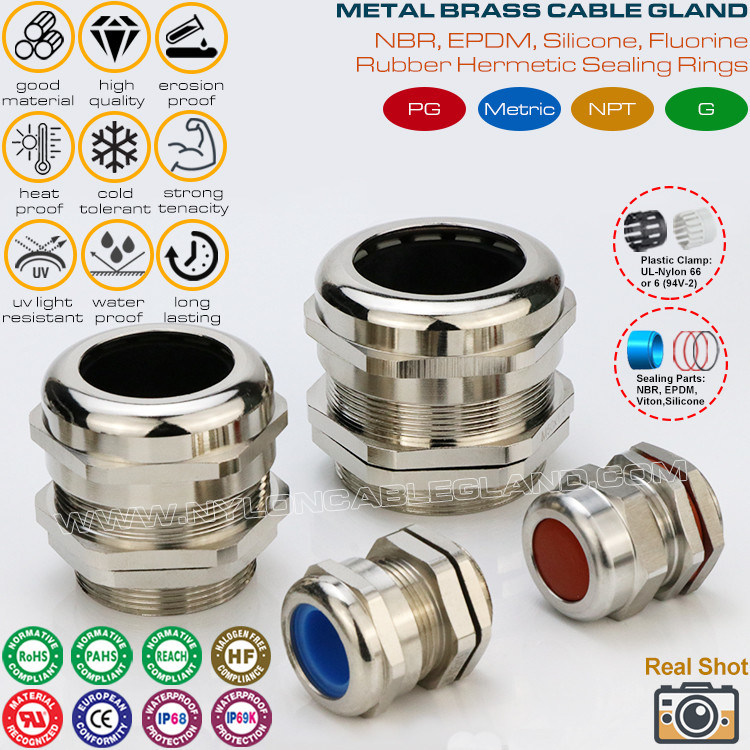

| Product name: | Metallic Cable Glands, Metric Thread, M6x1.0~M150x2, Brass Nickel-Plated, IP68/IP69K, BCG Series |
| Sizes available: | M6, M8, M10, M12, M16, M18, M20, M22, M25, M30, M32, M35, M40, M50, M63, M75, M80, M90, M100, M110, M120, M125, M150 |

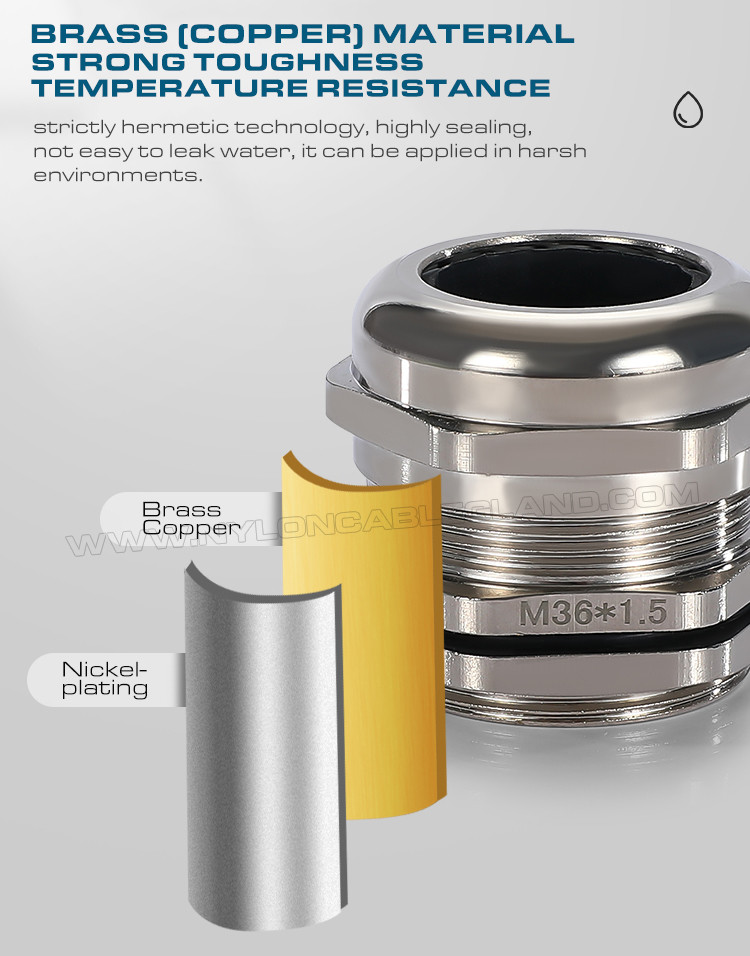

| Raw material: | Nickel-plated brass for metallic parts |
| UL-approved nylon 66, 94V-2 for plastic insert | |
| NBR for rubber seals (available in EPDM or Silicone rubber) | |
| Standard colors: | Metallic silver color |
| Certifications: | CE, ROHS, REACH, IP68, IP69K |

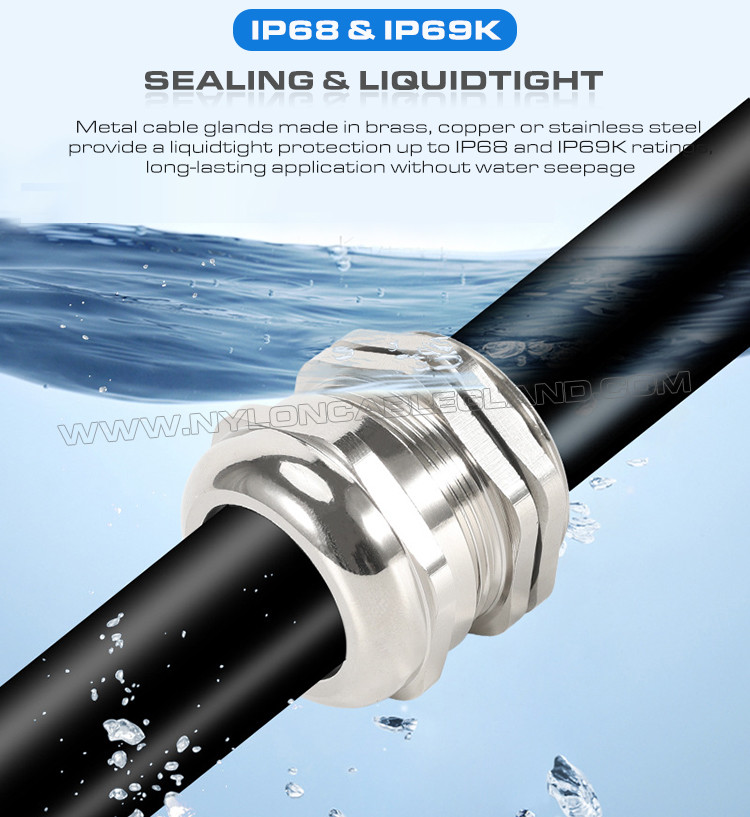

| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Lengths of thread: | Short thread or long thread is available |
| Thread system: | According to the standard EN60423 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. |
| OEM services: | Yes, available |
| Supply capability: | 3000000 pieces per month |
| Minimum quantity: | 200 pieces |
| Samples available: | Free samples are available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | Shipment by EMS / TNT / DHL / UPS / FEDEX, by sea or by air |
| Export packing: | 100 pieces per bag, 50 pieces per color box, |
