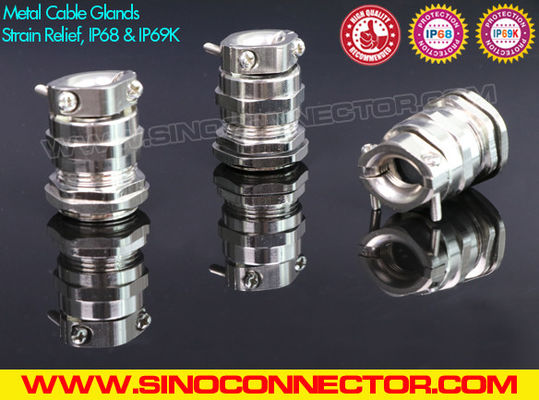

Brass Cable Glands (Cord Grips) IP68 & IP69K with Metal Cable Clamp

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, SGS, IP68, IP69K
Model Number: PG & Metric Series
Minimum Order Quantity: 200pcs
Price: at very competitive prices
Packaging Details: standard export packing (special packing is also available on request)
Delivery Time: normally 8-10 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 2000000pcs / month
Detail Information
Material: Nickel-plated Brass Color: Metallic Silver
IP Protection: IP68, IP69K Features:: Waterproof, Acid Resistant, Pullout Resistance, UV Resistant, Anti-aging, Durable, Good Performance, Long-life.
Advantage: Provide An Extra Resistance To Pull-out And High Strain Relief

Product Description

Brass Cable Glands (Cord Grips) IP68 & IP69K with Metal Cable Clamp​​

Applications areas:
Brass Cable Glands (Cord Grips) IP68 & IP69K with Metal Cable Clamp are mainly used for connecting and securing flexible cables or wires to provide an extra protection against pull-out & traction, dust, water, oil, etc. With its outstanding ability in weather resistance, wide clamping range, strong strain relief, high sealing performance, such glands are widely used in the electrical distribution boxes/ cabinets, moving machines parts, automatic control, plant engieering, etc.

Our advantages:
(1) At the prices from direct factory.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 & IP69K waterproof protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.

About us:
We are one of the most professional manufacturer of Cable Glands in China. Currently we manufacture and export Nylon Cable Glands & Metal Cable Glands with PG, Metric, NPT, G, BSC & BSP Threads. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!


Descriptions:

Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: Brass Cable Glands (Cord Grips) IP68 & IP69K with Metal Cable Clamp
Sizes available: * PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48.
* M12, M14, M16, M18, M20, M22, M24, M25, M27, M30, M32, M36, M37, M40, M42, M47, M48, M50, M54, M56, M60, M63, M64.
Raw material: Nickel-plated Brass for Locknut, Sealing Nut & Body
UL-approved nylon 66 for Clamping Claw (94V-2)
NBR for Seals & O-Ring (also available in weatherproof EPDM or Silicone rubber)
Standard colors: Metallic silver color
Main advantages: Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, SGS, IP68, IP69K
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths: Short thread and long thread are available
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
OEM service: Yes, available
Supply capability: 2,000,000 pieces per month
Minimum quantity: 200 pieces
Samples available: Free samples are available upon request
Delivery time: Normally 8-10 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: Shipped by EMS / TNT / DHL / UPS / FEDEX, shipped by sea or by air
Export packing: 100 pieces / bag, 50 pieces / color box, special packing can be customized as requested































Brass Cable Glands (Cord Grips) IP68 & IP69K with Metal Cable ClampCable Glands (Cord Grips) Strain Relief Brass Metal IP68 & IP69K
