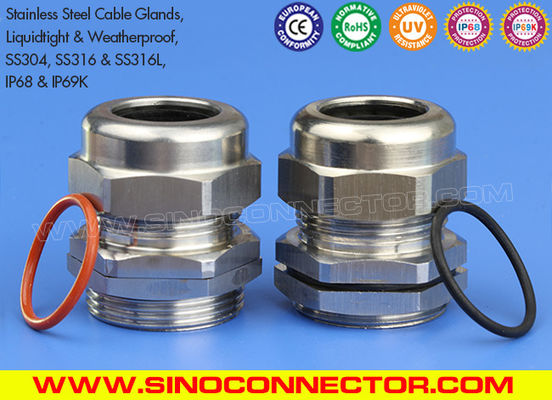

SS304, SS304L, SS316 & SS316L Stainless Steel Cable Glands Cable Joints with IP68 Rating

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, SGS, RoHS, IP68, IP69K
Model Number: PG series
Minimum Order Quantity: 100 pieces
Price: direct factory prices
Packaging Details: standard export packaging (special packaging is also available on request)
Delivery Time: normally 8-12 days
Payment Terms: T/T, L/C, Western union, Cash
Supply Ability: 1,000,000 pieces per month
Detail Information
Model: PG7 ~ PG48 Material: Stainless Steel SS304, SS316, SS316L
Color: Metallic IP Protection: IP68 & IP69K
PG Thread: EN DIN 40430 Advantages: Resistant To Liquid And Weather, Anti-aging, Flameproof

Product Description



Applications areas:
SS304, SS304L, SS316 & SS316L Stainless Steel Cable Glands Cable Joints with IP68 Rating have the main advantages of high impact resistance, wide clamping range, optimum strain relief, high sealing performance & resistant to liquid and weather, they are widely applied in the fields of electrical and electronic technologies, telecommunications, wireless networking ODUs, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, machineries, meters and instruments, etc.

Product details:
No. Item Description
1 Place of origin: Zhejiang, China
2 Manufacturer: Yueqing Sino Cable Gland Factory
3 Product name: SS304, SS304L, SS316 & SS316L Stainless Steel Cable Glands Cable Joints with IP68 Rating
4 Sizes available: PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48
5 Material: Stainless Steel SUS304, SUS316 or SUS316L
6 Seal & O-ring: Buna-N (also available in EPDM rubber, rubber or Silicone rubber)
7 Plastic insert: Polyamide 66 approved by UL, 94V-2 (also available in flame resistant 94V-0)
8 Surface treatment: Surface polishing
9 Standard colors: Metallic
10 Main features:

Provide excellent strain relief for cables and provide IP68 protection against the ingress of dirt, water and other liquids.

Anti-oxidation, resistant to aging and corrosion, resistant to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc.

11 Certifications: CE, ROHS, SGS, IP68, IP69K
12 IP protection: IP68/IP69K (when the cable diameter is within the clamping range and assemble the O-ring)
13 Thread length: Available in short thread and long thread
14 Thread standard: According to German standard DIN40430
15 Working temperature: Static:-40 ℃ to 100 ℃, short-term:120 ℃. Dynamic:-20 ℃ to 80 ℃, short-term:100 ℃ (nylon part & rubber part)
Non-magnetic, temperature range: -196 ℃ ~ 800 ℃ (stainless steel part)
16 Quality grade: High and stable quality & long service life
17 OEM service: Yes, available (special cable glands can be customized as per customer's original samples or technical drawings)
18 Supply capability: 100,000 pieces per month
19 Price advantage: Lowest direct factory prices
20 Minimum quantity: Negotiable
21 Sample availability: Yes, free samples are available upon request
22 Delivery time: 7-10 days after confirmation of orders
23 Payment terms: T/T, Western Union, Paypal, Cash, L/C at sight
24 Delivery terms: EXW, FCA, FOB, CIF, CNF
25 Shipping method: By courier (EMS, TNT, DHL, UPS or FEDEX)
By air (Shanghai / Ningbo)
By sea (Shanghai / Ningbo)
26 Export packing: 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label)
100 pieces per box, 50 pieces per box (white box or OEM color box)
Other special packaging also available on request

SS304, SS304L, SS316 & SS316L Stainless Steel Cable Glands Cable Joints with IP68 RatingLiquidtight and Weatherproof Stainless Steel Cable Glands (SS304, SS316 & SS316L)Liquidtight and Weatherproof Stainless Steel Cable Glands (SS304, SS316 & SS316L)Liquidtight and Weatherproof Stainless Steel Cable Glands (SS304, SS316 & SS316L)
