| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory or OEM |
| Certification: | CE, RoHS, REACH, IP68 |
| Model Number: | Series PG |
| Minimum Order Quantity: | 100 pieces |
| Price: | lowest prices from direct factory |
| Packaging Details: | standard export packing (special packing is also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 1,000,000 pieces per month |
| Product Name: | Stainless Steel EMC/EMV Cable Gland | Material: | NBR, EPDM, SILICONE, Viton (sealing Ring, O-ring) |
|---|---|---|---|
| Colors: | Metallic Silver | Cable Type: | Shielded Braided Cable |
| Model: | PG7 ~ PG48 | Protection: | IP68 |
| Thread: | According To German Standard DIN 40430 | Advantages: | Resistant To Liquid, Weatherproof, Anti-aging, Flameproof, EMC Protection |
Description and Applications:
EMC/EMV Cable Glands Stainless Steel SS304, SS316, SS316L for Shielded & Screened Cables have the ability of weather resistance, chemical resistance, aging and flame resistance, it also owns high breaking tensile strength, high tenacity and great liquid resistance ability. Besides, cable glands from our factory have long service time.

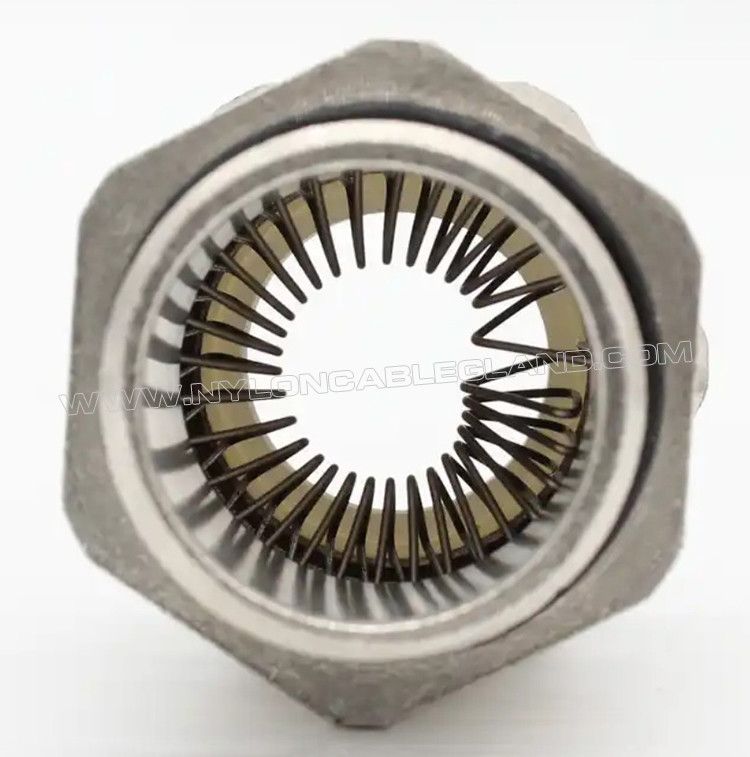

With its Stainless Steel Shielding Spring which can contact the screen of shielded cable, it helps to achieve an optimum low-resistance EMC bonding and to be attached to withstand electromagnetic interference. Due to this simple metal shielding contact, this cable gland can provide continuous EMC protection. They are widely applied in the fields of electrical and electronic technologies, telecommunications, wireless networking ODUs, renewable energy vehicles, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, machineries, meters and instruments, etc.
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |
| 3 | Product name: | EMC/EMV Cable Glands Stainless Steel SS304, SS316, SS316L for Shielded & Screened Cables |
| 4 | Models available: | PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 |
| 5 | Material: | Stainelss Steel 1.4301/1.4401/1.4404 |
| 6 | Seal & O-ring: | Buna-N (also available in EPDM rubber, Viton rubber or Silicone rubber) |
| 7 | Plastic insert: | Polyamide 66 approved by UL, 94V-2 (also available in flame resistant 94V-0) |
| 8 | Surface treatment: | Surface polishing |
| 9 | Standard colors: | Metallic silver |
| 10 | Main features: |
Provide excellent strain relief for cables and provide IP68 protection against the ingress of dirt, water and other liquids. Anti-oxidation, resistant to aging and corrosion, resistant to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. Provide continuous EMC protection. |
| 11 | Certifications: | CE, ROHS, REACH, IP68 |
| 12 | Protection: | IP68/IP69K (when the cable diameter is within the clamping range and mount the O-ring) |
| 13 | Length of thread: | Available in short thread and long thread |
| 14 | Thread standard: | According to German standard DIN40430 |
| 15 | Working temperature: | Static:-40 ℃ to 100 ℃, short-term:120 ℃. Dynamic:-20 ℃ to 80 ℃, short-term:100 ℃ (nylon part & rubber part) |
| Non-magnetic, temperature range: -196 ℃ ~ 800 ℃ (stainless steel part) | ||
| 16 | Quality grade: | High and stable quality & long service life |
| 17 | OEM services: | Yes, available (special cable glands can be customized as per customer's original samples or technical drawings) |
| 18 | Supply capability: | 100,000 pieces per month |
| 19 | Price advantage: | Lowest prices from direct factory |
| 20 | Minimum quantity: | Negotiable |
| 21 | Sample availability: | Yes, free samples are available upon request |
| 22 | Delivery time: | 7-10 days after confirmation of orders |
| 23 | Payment terms: | T/T, Western Union, Paypal, L/C |
| 24 | Delivery terms: | EXW, FCA, FOB, CIF, CNF |
| 25 | Shipping method: | By courier (EMS, TNT, DHL, UPS or FEDEX) |
| By air (Shanghai / Ningbo) | ||
| By sea (Shanghai / Ningbo) | ||
| 26 | Export packing: | 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label) |
| 100 pieces per box, 50 pieces per box (white box or OEM color box) | ||
| Other special packing also available on request |
