| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, SGS, RoHS, IP68, IP69K |
| Model Number: | NPT series |
| Minimum Order Quantity: | 100 pieces |
| Price: | lowest prices from direct factory |
| Packaging Details: | export packing (special packing is also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T, L/C, Western union, Cash |
| Supply Ability: | 1,000,000 pieces per month |
| Product Name: | Stainless Steel Cable Glands Cord Grip Fittings Connectors | Model: | NPT1/4" ~ NPT3" |
|---|---|---|---|
| Material: | Stainless Steel SS304, SS304L, SS316, SS316L | Plastic Insert: | UL-certified PA6 |
| Sealing Parts: | NBR, EPDM, FKM, SILICONE Rubber | Surface Treatment: | Polishing |
| Protection: | IP68 | Metric: | ANSI/ASME B 1. 20. 1 |
| Advantages: | Resistant To Liquid And Weather, Anti-aging, Flameproof |
Applications areas:
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |

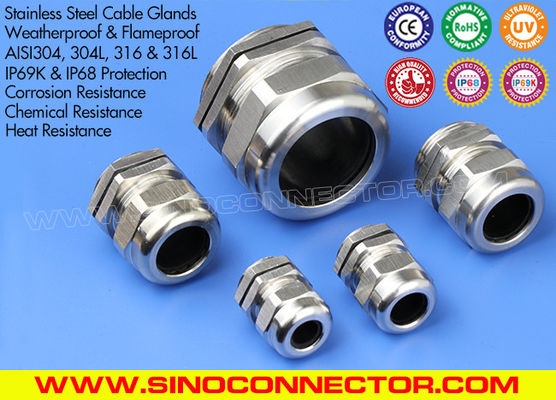

| 3 | Product name: | Weatherproof & Waterproof NPT Cable Glands (Cord Grips | Cable Grips) IP68 Stainless Steel Type 304, 316, 316L |
| 4 | Models: | NPT1/4, NPT3/8, NPT1/2, NPT3/4, NP1, NPT1-1/4, NPT1-1/2, NPT2, NPT2-1/2, NPT3 |
| 5 | Material: | Stainless Steel SS304, SS304L, SS316 or SS316L |
| 6 | Seal & O-ring: | Buna-N (also available in EPDM rubber, rubber or Silicone rubber) |
| 7 | Plastic insert: | polyamide 66 approved by UL, 94V-2 (also available in 94V-0) |
| 8 | Surface treatment: | polishing |
| 9 | Colors: | metallic silver |
| 10 | Features: |
provide excellent strain relief for cables and provide IP68 protection against the ingress of dirt, water and other liquids. anti-oxidation, resistant to aging and corrosion, resistant to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 11 | Certifications: | CE, ROHS, SGS, IP68 |
| 12 | Protection: | IP68 (when the cable diameter is within the clamping range and mount the O-ring) |
| 13 | Thread standard: | according to ANSI/ASME B 1. 20. 1 |
| 14 | Working temperature: | static:-40 ℃ to 100 ℃, short-term:120 ℃. Dynamic:-20 ℃ to 80 ℃, short-term:100 ℃ (nylon part & rubber part) |
| non-magnetic, temperature range: -196 ℃ ~ 800 ℃ (stainless steel part) | ||
| 15 | Quality grade: | high quality |
| 16 | OEM services: | available (special cable glands can be customized as per customer's original samples or technical drawings) |
| 17 | Supply capability: | 100,000 pieces per month |
| 18 | Price advantage: | lowest prices from direct factory |
| 19 | Minimum quantity: | negotiable |
| 20 | Sample availability: | yes, free samples are available upon request |
| 21 | Delivery time: | 7-10 days after confirmation of orders |
| 22 | Payment terms: | T/T, Western Union, Paypal, Cash, L/C at sight |
| 23 | Delivery terms: | EXW, FCA, FOB, CIF, CNF |
| 24 | Shipping ways: | by courier (EMS, TNT, DHL, UPS or FEDEX) |
| by air (Shanghai / Ningbo) | ||
| by sea (Shanghai / Ningbo) | ||
| 25 | Export packing: | 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label) |
| 100 pieces per box, 50 pieces per box (white box or OEM color box) | ||
| other special packings also available on request |
