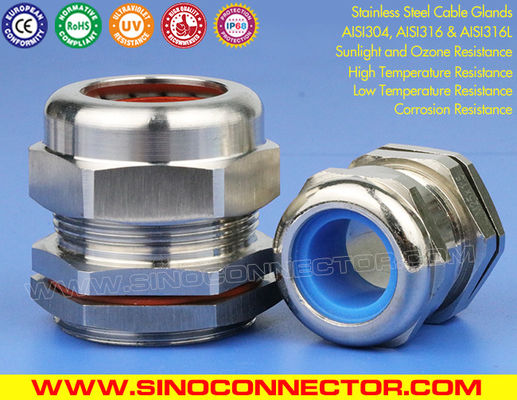

M50 Metric IP68 Cable Gland Stainless Steel Type 304, 316, 316L with EPDM Seal & O-ring for 22-32mm Cable

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, SGS, RoHS, IP68
Model Number: Metric Series
Minimum Order Quantity: 100 pieces
Price: competitive prices from direct factory
Packaging Details: export packing (special packing is also available on request)
Delivery Time: normally 8-12 days
Payment Terms: T/T, L/C, Western union, Cash
Supply Ability: 500,000 pieces per month
Detail Information
Model: M50x1.5 Material: Stainless Steel 304, 304L, 316 Or 316L
Color: Metallic Silver Protection: IP68
Metric: EN 60423 Advantages: Resistant To Sunlight And Ozone, Resistant To High And Low Temperature And Corrosion

Product Description

Advantages & Applications:

With advantages of high impact resistance, wide clamping range, high and low temperature resistance and resistance to sunlight and ozone, M50 Metric IP68 Cable Gland Stainless Steel Type 304, 316, 316L with EPDM Seal & O-ring for 22-32mm Cable has the ability of chemical and mechnical resistance, corrosion resistance and heat resistance, and it also has the ability of high breaking tensile strength, high tenacity and optimum water resistance and long service time.

It is resistant to dust, dirty, seawater, acid, alcohol, oil, grease and common solvent. Besides, it does well in insulation, it is secure and safe.
They are popular in the applications of shipbuilding, offshore platform and facility, paper making, sewerage treatment, electrical and electronic technologies, telecommunications, automatic control, power supplies, distribution boxes, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.

Product details:
No. Item Description
1 Place of origin: Zhejiang, China
2 Manufacturer: Yueqing Sino Cable Gland Factory
3 Product name: M50 Metric IP68 Cable Gland Stainless Steel Type 304, 316, 316L with EPDM Seal & O-ring for 22-32mm Cable
4 Models: M50x1.5 (clamping range: 22-32mm)
5 Material: Stainless Steel AISI304, AISI304L, AISI316 or AISI316L
6 Seal & O-ring: EPDM rubber
7 Plastic insert: Polyamide 66 approved by UL, 94V-2 (also available in 94V-0)
8 Surface treatment: Polishing
9 Colors: Metallic silver
10 Features:

provide excellent strain relief for cables and provide IP68 protection against the ingress of dirt, water and other liquids.

anti-oxidation, resistance to sunlight and ozone, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc.

11 Certifications: CE, ROHS, SGS, IP68
12 Protection: IP68 (when the cable diameter is within the clamping range and mount the O-ring)
13 Thread standard: According to EN 60423
14 Working temperature: Normal use: -40 ℃ to 100 ℃
Short term: -40 ℃ to 120 ℃
15 Quality grade: High quality
16 OEM services: Available
17 Supply capability: 500,000 pieces per month
18 Price advantage: Lowest prices from direct factory
19 Minimum quantity: Negotiable
20 Sample availability: Free samples are available upon request
21 Delivery time: 7-10 days after confirmation of orders
22 Payment terms: T/T, Western Union, Cash, L/C at sight
23 Delivery terms: EXW, FCA, FOB, CIF, CNF
24 Shipping ways: by courier (EMS, TNT, DHL, UPS or FEDEX)
by air (Shanghai / Ningbo)
by sea (Shanghai / Ningbo)
25 Export packing: 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label)
100 pieces per box, 50 pieces per box (white box or OEM color box)
other special packings also available on request
