| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, IP68, IP69K, Anti-UV |
| Model Number: | M12x1.5 ~ M75x2 |
| Minimum Order Quantity: | 500 pieces |
| Price: | competitive prices from direct factory |
| Packaging Details: | standard packing (special packing is also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 5,000,000 pieces each month |
| Features: | Weather Resistant & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, Anti-UV | Models: | Full Models (M12 ~ M75) |
|---|---|---|---|
| Protection: | IP68, IP69K | Material: | UL-approved PA66, 94V-2 (94V-0 Is Optional) |
| Standard Colors: | Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request) | Thread Standard: | According To The Standard EN60423 |
| Quality Grade: | High Quality (6-12 Years Of Long Life For Indoor Application) |

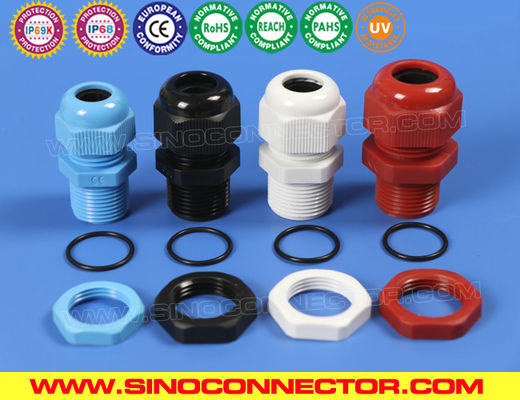

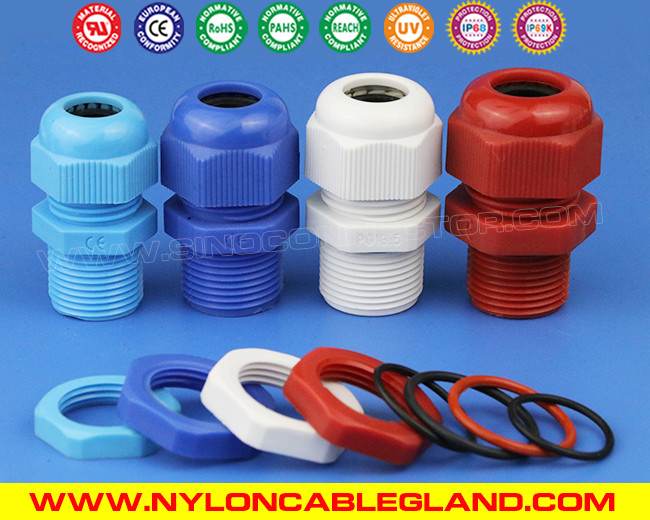

Elongated Thread Polyamide Cable Gland is recommended where the Cable Gland has to pass through a thick wall or the application just needs the extra thread length.
Eco-Friendly Waterproof Elongated Metric Thread Polyamide Cable Gland (IP68 & IP69K Rated) is a kind of mechanical cable entry device and can be constructed from metallic materials (mainly brass or stainless steel) or non-metallic materials (mainly polyamide, polymer, synthetic or PP). They are used throughout a number of industries in conjunction with cable and wiring used in electrical instrumentation and automation systems.
Eco-Friendly Waterproof Elongated Metric Thread Polyamide Cable Gland (IP68 & IP69K Rated) may be used as sealing and termination devices to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately. Having the features of wide clamping range, high strain relief, waterproof protection and anti-vibration mechanism, they are popularly applicable for solar, wind, oil & gas, pumps, filters, fans, transducers, sensors, scales, flow meters, lighting, motors, encoders, power supplies, antennas, harnesses for pool & spa, car wash, dairy, food & beverage, pharmaceutical, petro, telecom, automotive, traffic, robotics, medical, packaging, automation, marine and many more industries.
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | Eco-Friendly Waterproof Elongated Metric Thread Polyamide Cable Gland (IP68 & IP69K Rated) |
| Available sizes: | M12, M16, M18, M20, M25, M32, M40, M50, M63, M75 |
| Materials: | Plastic parts: UL-Polyamide 66, 94V-2 (contact us for 94V-0 material) |
| Rubber parts: NBR (available in EPDM, Silicone Rubber or Rubber) | |
| Colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Certifications: | CE, ROHS, PAHS, REACH, IP68, IP69K, UV |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Available in short connecting thread & long connecting thread |
| Thread system: | According to the standard EN60423 |
| Working temperature: |
Static: -40℃ to +100℃, short-term: +120℃. |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
| OEM services: | Yes, available |
| Supply capability: | 3,000,000 pieces each month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples are available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T, Western Union, L/C at sight |
| Shipment terms: | Shipped by EMS / TNT / DHL / UPS / FEDEX, by sea / by air |
| Export packing: |
100 pieces per bag + 100 pieces per color box, |
