| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, SGS, RoHS, IP68 |
| Model Number: | PG series |
| Minimum Order Quantity: | 100 pieces |
| Price: | Most competitive prices from direct factory |
| Packaging Details: | export packing (special packing is also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T, L/C, Western union, Cash |
| Supply Ability: | 500,000 pieces / month |
| Model: | PG7 - PG48 | Material: | Stainless Steel Grade 304, 304L, 316 Or 316L |
|---|---|---|---|
| Surface Treatment: | Polishing | Protection: | IP68 |
| PG Thread: | According To DIN 40430 | Advantages: | Resistant To Weather, Corrosion, Sunlight, Ozone And Temperature |
Advantages & Applications:

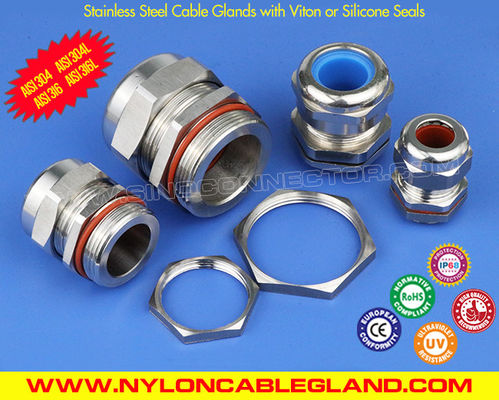

IP68 PG Cable Gland Stainless Steel Inox 304, 316, 316L with Seal & O-ring made in non-magnetic stainless steel material grade AISI304, AISI316 or AISI 316L is available with Metric, PG, NPT and G connecting threads. It is designed to permit the entry of cables into electrical equipment or component which provides earthing, bonding, insulation, sealing, retention and strain relief, and provides mechanical supports for the cables.
IP68 PG Cable Gland Stainless Steel (Inox) 304, 316, 316L with Seal & O-ring has the good capability of chemical resistance, corrosion resistance and heat resistance, and it has also the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. It is resistant to dust, dirty, seawater, acid, alcohol, oil, grease and common solvent and is widely used in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |
| 3 | Product name: | IP68 PG Cable Gland Stainless Steel Inox 304, 316, 316L with Seal & O-ring |
| 4 | Model: | PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 |
| 5 | Material: | Stainless Steel AISI304, AISI304L, AISI316 or AISI316L |
| 6 | Seal & O-ring: | NBR (also available in EPDM rubber, Silicone rubber or rubber) |
| 7 | Plastic insert: | UL-Polyamide 66, 94V-2 (also available in 94V-0) |
| 8 | Surface treatment: | Polishing |
| 9 | Color: | Metallic silver |
| 10 | Features: |
Provide excellent IP68 waterproof protection against the ingress of dirt, water and other liquids. Anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 11 | Certifications: | CE, ROHS, SGS, IP68 |
| 12 | Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| 13 | Thread: | According to DIN40430 |
| 14 | Temperatures: | Normal use: -20℃ to 260℃. |
| 15 | Quality grade: | High quality |
| 16 | OEM services: | Yes, available |
| 17 | Supply capacity: | 500,000 pieces each month |
| 18 | Prices: | Most competitive prices from direct factory |
| 19 | Minimum quantity: | Yes, negotiable |
| 20 | Samples: | Free samples are available on request |
| 21 | Delivery time: | 7-10 days after confirmation of orders |
| 22 | Payment terms: | T/T, Cash, L/C |
| 23 | Delivery terms: | EXW, FCA, FOB, CIF, CNF |
| 24 | Shipping methods: | By courier (EMS, TNT, DHL, UPS or FEDEX) |
| By air (Shanghai or Ningbo) | ||
| By sea (Shanghai or Ningbo) | ||
| 25 | Export packing: | 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label) |
| 100 pieces per box, 50 pieces per box (white box or OEM box) | ||
| other special packing is also available on request |
