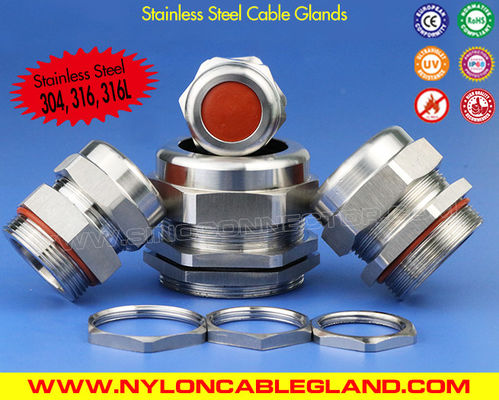

Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals

Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals
Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals

Large Image :  Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, SGS, RoHS, IP68
Model Number: SSCG series
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: lowest prices from direct factory
Packaging Details: export packing (special packing is also available on request)
Delivery Time: normally 8-12 days
Payment Terms: T/T, L/C, Western union, Cash
Supply Ability: 500,000 pieces / month
Detailed Product Description
Features: Resistant To Weather, Corrosion, Sunlight, Ozone, Fire And Temperature Model: SSCG-M20S-14
Material: Stainless Steel Type 304, 304L, 316 Or 316L Surface Treatment: Polishing (Mirror Finish Polishing Also Available)
Color: Metallic Protection: IP68
Thread Standard: According To EN 60423 Samples: Free Samples Are Available
Trade Terms: EXW, FCA, FOB, CIF, CNF

Advantages & Applications:

Ozone & Temperature Resistant 304,316,316L Stainless Steel Cable Gland IP68 with Silicone () Seal & O-ring is made in non-magnetic stainless steel material type AISI304, AISI316 or AISI 316L and are available in PG connecting thread. It is designed to permit the entry of cables into electrical equipment or component which provide earthing, bonding, insulation, sealing, retention and strain relief, and offer mechanical supports for the cables.



Ozone & Temperature Resistant 304,316,316L Stainless Steel Cable Gland IP68 with Silicone () Seal & O-ring has the good capability of chemical resistance, corrosion resistance and heat resistance, and they have also the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. They are highly resistant to dust, dirty, seawater, acid, alcohol, oil, fire, grease and common solvent and are popularly used in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.



Product details:
No. Item Description
1 Place of origin: Zhejiang, China
2 Manufacturer: Yueqing Sino Cable Gland Factory
3 Product name: Ozone & Temperature Resistant 304,316,316L Stainless Steel Cable Gland IP68 with Silicone () Seal & O-ring
4 Model: SSCG-M20S-14
5 Material: Stainless Steel Type AISI 304, AISI 304L, AISI 316 or AISI3 16L
6 Seal & O-ring: (Fluoroelastomer) rubber or Silicone rubber
7 Plastic insert: UL-Polyamide 66, 94V-2 (also available in UL94V-0)
8 Surface treatment: Polishing (mirror finish polishing also available)
9 Color: Metallic
10 Features:

It offers excellent IP68 waterproof protection against the ingress of dirt, water and other liquids.

Anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc.

11 Certifications: CE, ROHS, SGS, IP68, UV
12 Protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
13 Thread: According to EN 60423
14 Temperatures: Normal use: -20℃ to 260℃.
15 Quality grade: High quality
16 OEM services: Yes, available
17 Supply capacity: 500,000 pieces each month
18 Prices: Lowest prices from direct factory
19 Minimum quantity: Yes, negotiable
20 Samples: Free samples are available on request
21 Delivery time: 7-10 days after confirmation of orders
22 Payment terms: T/T, Cash, L/C
23 Delivery terms: EXW, FCA, FOB, CIF, C&F
24 Shipping methods: By courier (EMS, TNT, DHL, UPS or FEDEX)
By air (Shanghai or Ningbo)
By sea (Shanghai or Ningbo)
25 Export package: 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label)
100 pieces per box, 50 pieces per box (white box or OEM box)
other special packing is also available on request




Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals 0

Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals

Weather & Ozone Resistant 304,316,316L Stainless Steel IP68 Cable Gland with Silicone Seal & O-ring



Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals 3



































Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals 4



































































































Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals 5

Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals 6

Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals 7

Ozone & Temperature Resistant 304, 316, 316L Stainless Steel Cable Gland IP68 with Silicone Seals 8
