| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Factory or OEM / ODM |
| Certification: | CE, ROHS, REACH, IP68 |
| Model Number: | TSCG series |
| Minimum Order Quantity: | 500 pieces |
| Price: | factory direct sale |
| Packaging Details: | 100 pieces per bag (special packings are also available on request) |
| Delivery Time: | normally 10-14 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 50,000 pieces / month |
| Material: | Stainless Steel Inox 304/316/316L | Surface: | Polishing Treatment |
|---|---|---|---|
| Color: | Silver Gray | Plastic Insert: | UL-Polyamide (Nylon) 6 |
| Flammability: | V-2 Rating As Per UL94 | Seal: | FKM / FPM (FFKM / FFPM) Rubber |
| O-Ring: | FKM / FPM (FFKM / FFPM) Rubber | Protection: | IP68 Rated |
| Specs: | M16x1.5 (5-10mm) | Features:: | Waterproof, Acid & Oil Resistant, Pullout Resistance, UV Resistant, Anti-aging, Durable, Good Performance, Long-life. |
| Function: | Provide An Extra Resistance To Pull-out And Stron Strain Relief |
Main features:

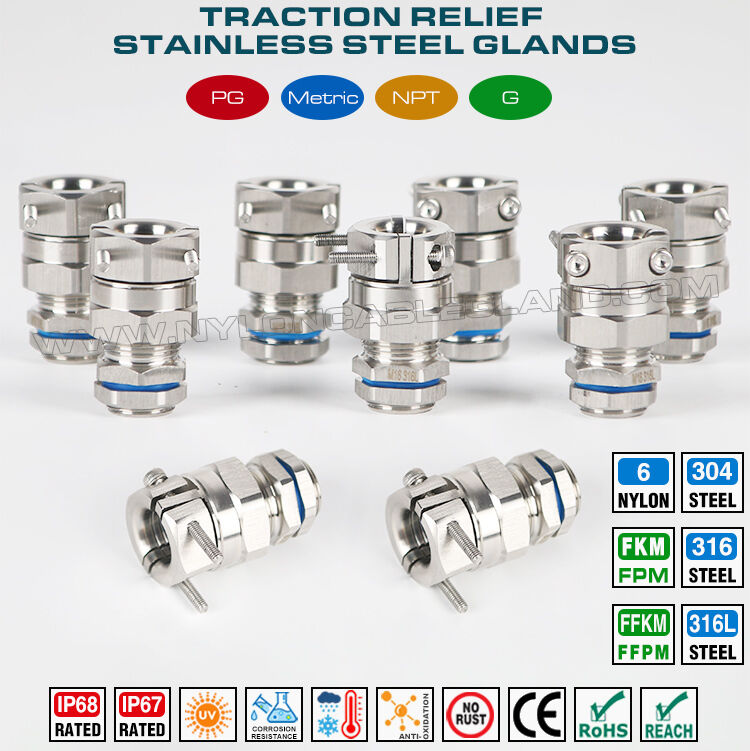

♦ Saddle clamp: a distinct U-shaped or two-part clamp that fastens around the cable, providing extra mechanical grip and strain relief, essentially "saddling" the cable for maximum security.
♦ Traction relief (strain relief, pull relief): the main purpose is to grip the cable firmly, preventing tension or pulling from damaging internal wires or disconnecting the cables.
♦ Sealing: creates a tight seal (IP68) to prevent dust, water, oil, and other contaminants from entering the enclosure.

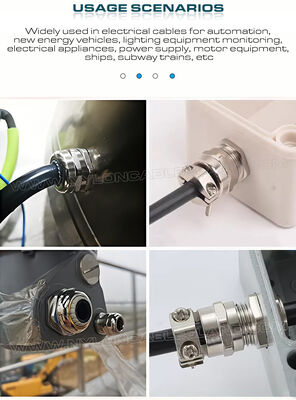

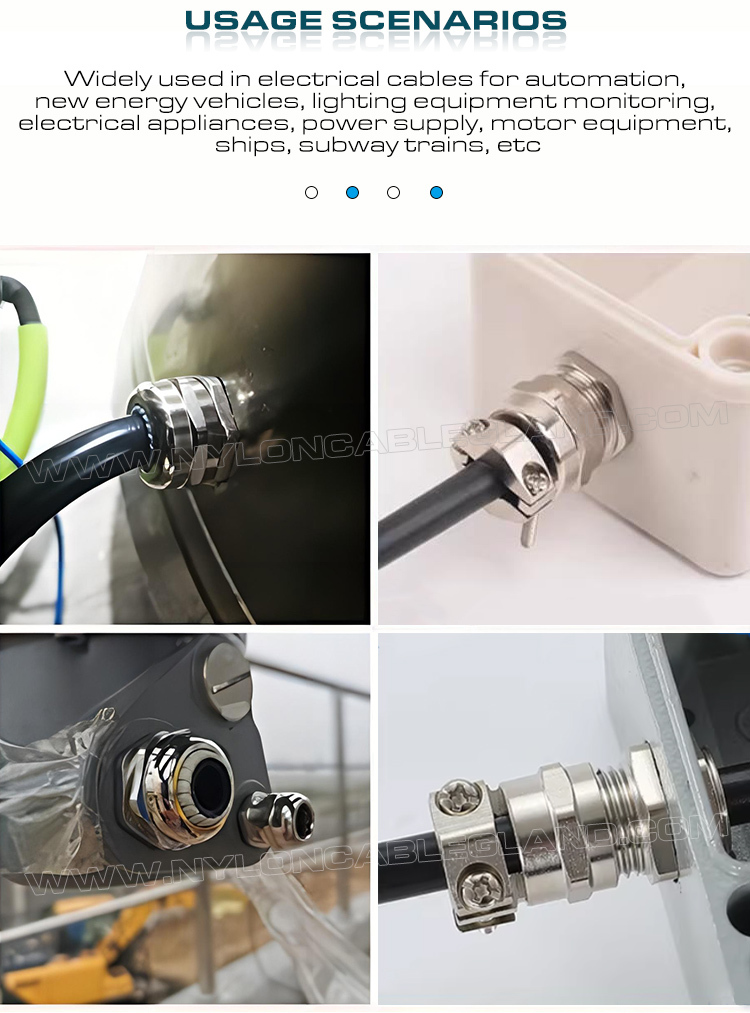

♦ Harsh environments: ideal for building sites, portable equipment, machinery, and electrical motors where vibration, impact, or rough handling is common.
♦ Mechanical security: secures the cable to the equipment or panel, providing a robust mechanical connection.
Information:
| Brand name: | Factory or OEM / ODM |
| Place of origin: | Zhejiang, China |
| Specification: | M16x1.5 (clamping range: 5-10mm) |

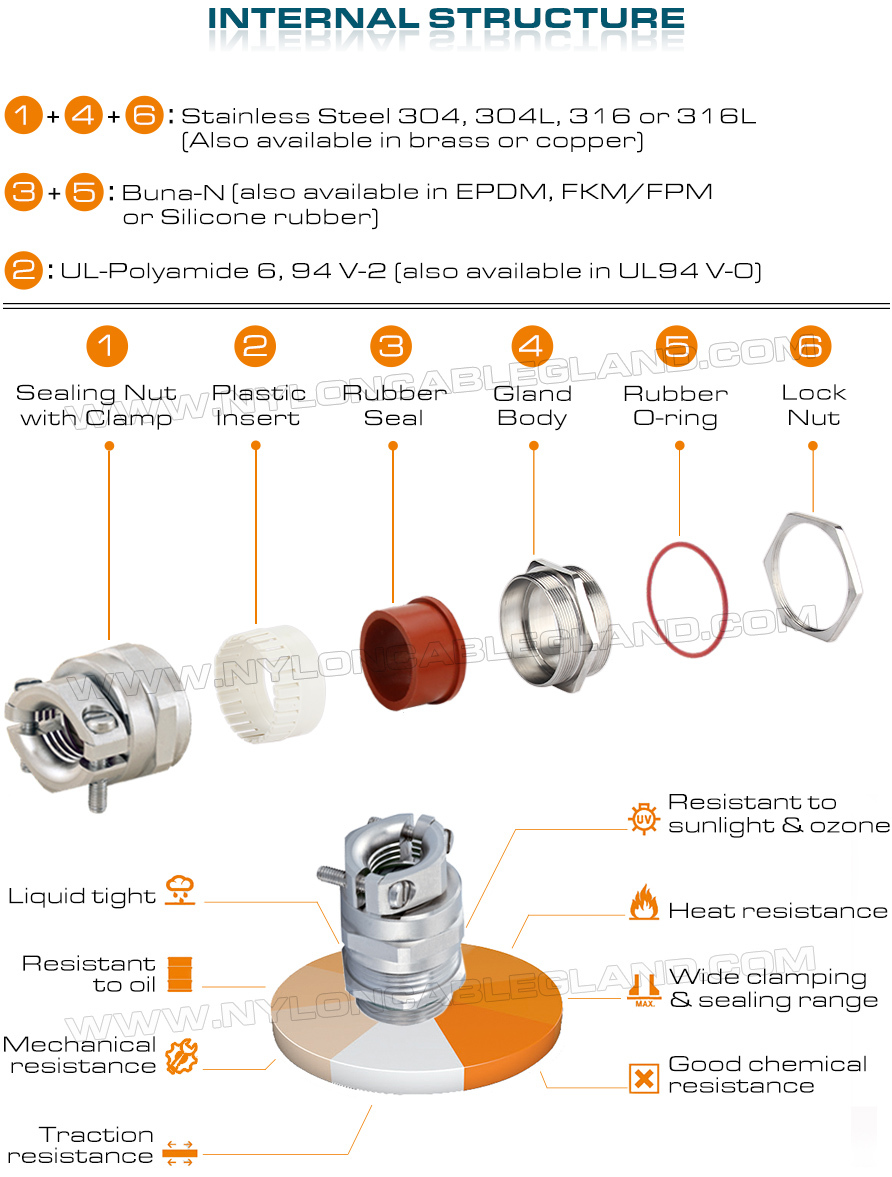

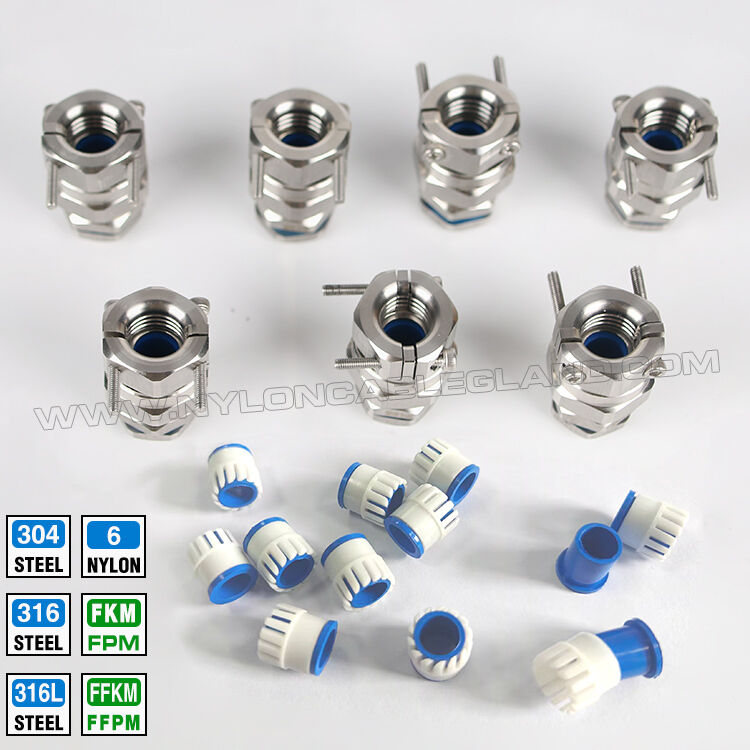

| Materials: | Stainless steel type 304, 316 or 316L for locknut, sealing nut and gland body |
| UL-polyamide 6, 94V-2 for plastic insert | |
| FKM / FPM (FFKM / FFPM) rubber for seals & O-rings | |
| Color: | Silver gray |
| Advantages: | Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Short thread or long thread, both are available |
| Operation temp.: | Static: -40℃ to 100℃, short-term:120℃. Dynamic: -20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 50,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Yes, available |
| Delivery time: | Normally 10-14 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air |
| Export packing: | 100 pieces / bag, 50 pieces / color box, special packing can be customized as requested |
