Material: | NBR Or EPDM Rubber For Seals & Washers | Colors: | Grey RAL7035, Black RAL9005, Other Colors Are Available |
---|---|---|---|
IP Protection: | IP68 | Functions: | Protect Cables From Excessive Bending To Reduce The Risk Of Break |
How to use:
Mount gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position.
Discriptions:
Brand name: | Sino Cable Gland Factory |
Place of origin: | Zhejiang, China |

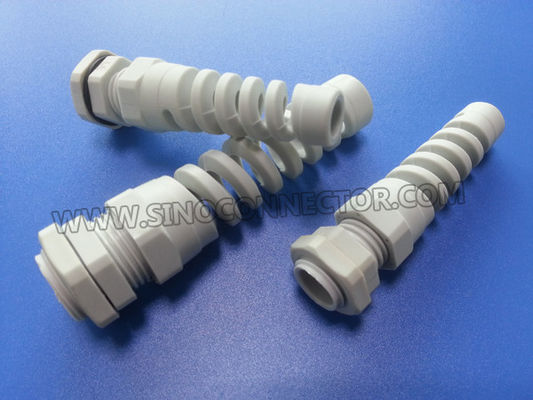

Product name: | Bend and Flex Protecting Cable Gland with NPT Connection Thread |
Sizes available: | * NPT1/4", NPT3/8", NPT1/2", NPT3/4" |
Raw material: | UL-approved new Polyamide 66, flammability 94V-2 for Spiral Protector, Locknut & Body (contact us for 94V-0 material). |
NBR rubber or Weatherproof EPDM rubber for Seal & Washer (O-ring) | |
Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
Main advantages: | Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range, it firmly holds and protects cables from excessive twist to reduce the risk of break. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer / O-ring) |
Thread lengths: | Short thread and long thread are available |
Thread system: | NPT: According to the standard ANSI/ASME B 1.20.1 |
Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
Quality grade: | High quality can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
OEM service: | Yes, available |
Supply capability: | 3,000,000 pieces per month |
Minimum quantity: | 500 pieces |
Samples available: | Free samples available upon request |
Delivery time: | Normally 5-7 days after confirmation of orders |
Payment terms: | T/T in advance, Western Union, L/C at sight |
Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
