| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory or OEM |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| Model Number: | BSC, G, BSP series |
| Minimum Order Quantity: | 200pcs |
| Price: | Best prices from direct factory |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 5000000pcs / month |
| Features: | Resistant To Dust, Water, Corrosion & Aging, Durable, Good Insulation | Material: | NBR, EPDM, FKM Rubber For Sealing Parts |
|---|---|---|---|
| Color: | Different Colors Available Upon Request | Protection: | IP68 |
| Product Name: | Nylon Polyamide Plastic Cable Glands Cord Grips Strain Reliefs |
How to use:

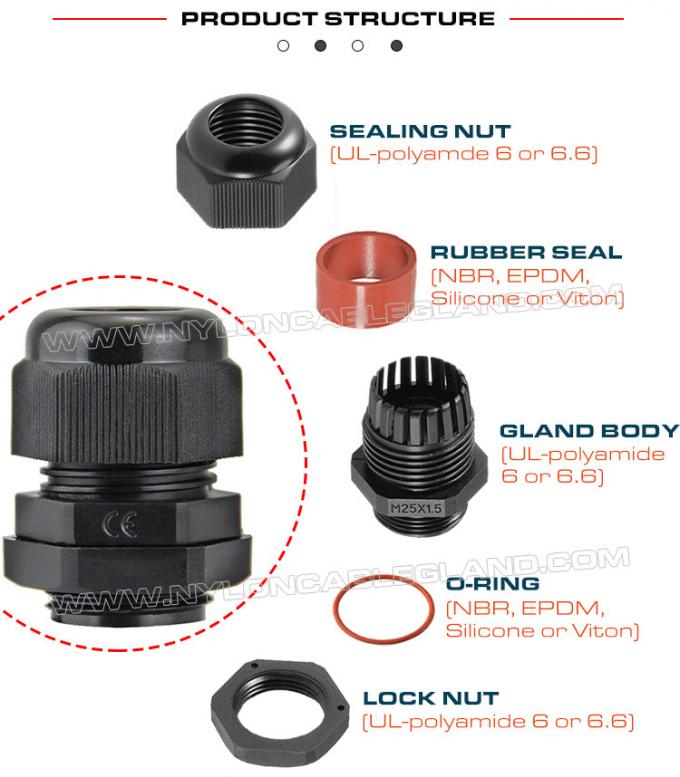

Mount gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position.
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | Dome Cap Cable Glands Hermetic IP68 Plastic Synthetic Nylon with BSC, G & BSP Threads |
| Sizes available: |
* BSC1/2", BSC5/8”, BSC3/4", BSC1", BSC1-1/4", BSC1-1/2", BSC2"
* BSP1/4", BSP3/8", BSP1/2", BSP3/4", BSP1", BSP1-1/4", BSP1-1/2"
* G1/4", G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2"
|
| Raw material: | UL-approved new Polyamide 66, flammability 94V-2 for Sealing Nut, Locknut & Body (94V-0 material is optional) |
| NBR or EPDM rubber for Seal & Washer | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Certifications: | CE, ROHS, PAHS, REACH, IP68, UV |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | Normal thread are available |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 1000 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
