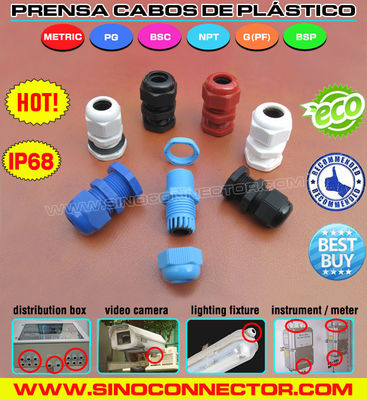

Red Hermetic Electrical Cable Gland Plastic (Nylon or Polyamide) IP68 with BSC Connection Thread

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory or OEM
Certification: CE, ROHS, PAHS, REACH, SGS, IP68
Model Number: BSC series
Minimum Order Quantity: 500 units
Price: at very competitive prices from direct factory
Packaging Details: standard export packing (special packing also available on request)
Delivery Time: normally 8-10 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 5000000pcs / month
Detail Information
Material: UL-approved PA66, 94V-2 Seal & Washer: NBR Rubber Or EPDM Rubber
Standard Colors: Light-grey RAL7035 Or Black RAL9005 IP Rating: IP68

Product Description


Applications:
With unique design, wide cable clamping range & excellent resistance against tensile strength, Red Hermetic Electrical Cable Gland Plastic (Nylon or Polyamide) IP68 with BSC Connection Thread is popularly applied for fixing and connecting cables or wires to provide effecitve protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc..

Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.

About us:
We are one of the most professional manufacturer of Cable Glands, Cable Ties, Pipe Fittings, Cable Accessories in China. Currently we manufacture and export Nylon Cable Glands & Metal Cable Glands with PG, Metric, NPT, G, BSC & BSP Threads. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!

Descriptions:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: Red Hermetic Electrical Cable Gland Plastic (Nylon or Polyamide) IP68 with BSC Connection Thread
Sizes available: * BSC1/2", BSC5/8”, BSC3/4", BSC1", BSC1-1/4", BSC1-1/2", BSC2"
Raw material: UL-approved new Polyamide 66, flammability 94V-2 for Sealing Nut, Locknut & Body (94V-0 material is optional)
NBR or weatherproof EPDM rubber for Seal & Washer (O-ring)
Standard colors: Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request)
Certifications: CE, ROHS, PAHS, REACH, SGS, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the Washer or O-ring)
Thread lengths: Short thread & long thread are available
Thread system: According to the standard EN60423
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
Quality grade: High quality can last 8-12 years of long service life for indoor applications (ordinary quality is available on request)
OEM service: Yes, available
Supply capability: 5,000,000 pieces per month
Minimum quantity: 500 pieces
Samples available: Free samples available upon request
Delivery time: Normally 5-7 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing: 100 pieces / bag, 100pieces /color box, special packing can be customized as requested
































Red Hermetic Electrical Cable Gland Plastic (Nylon or Polyamide) IP68 with BSC Connection Thread

Red Hermetic Electrical Cable Gland Plastic (Nylon or Polyamide) IP68 with BSC Connection Thread 1


Red Hermetic Electrical Cable Gland Plastic (Nylon or Polyamide) IP68 with BSC Connection Thread 2

Red Hermetic Electrical Cable Gland Plastic (Nylon or Polyamide) IP68 with BSC Connection Thread 3
