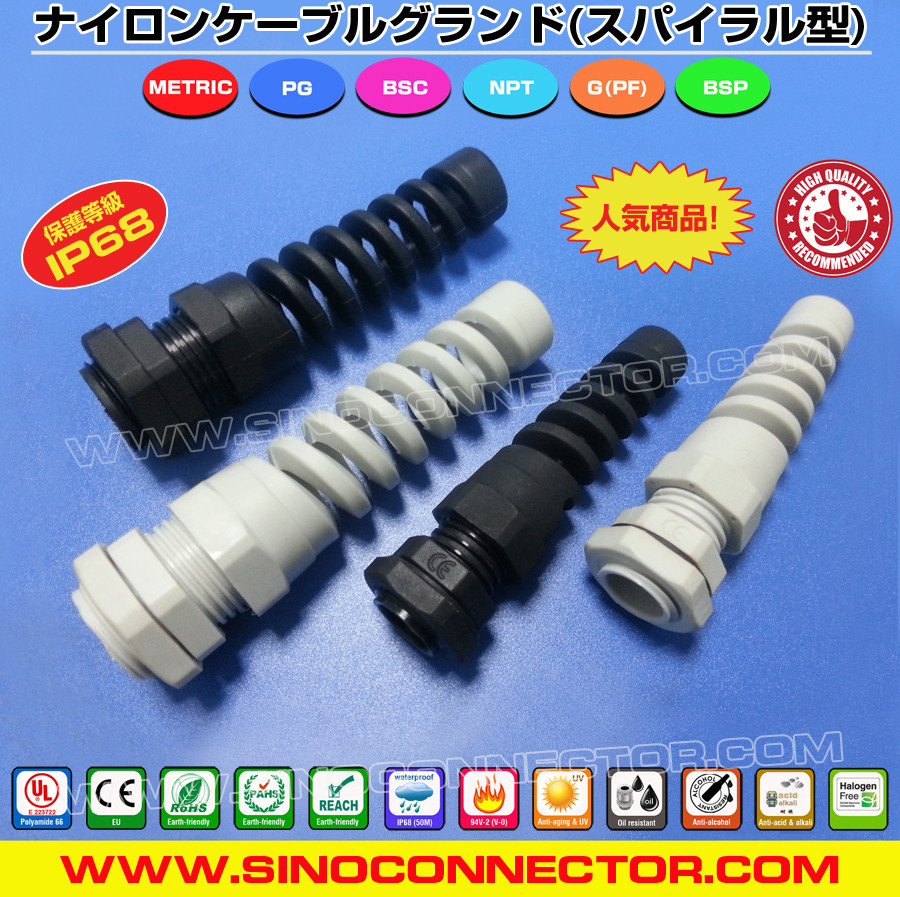

スパイラルナイロンケーブルグランド / スパイラルプラスチックケーブルグランド (PGネジ ・ Mネジ ・ NPTネジ)

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, ROHS, PAHS, REACH, SGS, IP68
Model Number: PG, Metric, NPT series
Minimum Order Quantity: 500pcs
Price: very competitive prices
Packaging Details: standard export packing (special packing also available on request)
Delivery Time: normally 5-8 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 5000000pcs / month
Detail Information
Material: UL-recognized Polyamide 66 (Nylon 66), 94V-2 (V-0 Is Optional) IP Protection: IP68 (when The Cable Diameter Is Within The Clamping Range And Assemble The Gasket Or O-ring)
Colors: Light-grey RAL7035, Black RAL9005 (other Colors Can Be Customized As Per Requirements) Certificates: CE, ROHS, PAHS, REACH, SGS, IP68

Product Description

(1) Raw Material:
* Sealing Nut, Locknut & Body: UL-approved new Polyamide 66,94V-2 (94V-0 is optional).
* Seal & O-ring (Washer): oil-resistant NBR (available in weatherproof EPDM, Natural Rubber & Silicone rubber).


(2) Standard Colors:
Light-grey RAL7035, black RAL9005 (also available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request).


(3) Protection Degree:
It can reach IP68 (only if assembled with O-ring or Washer within its specific cable range).


(4) Operating Temperature Range:
Static: -40 ℃ to 100 ℃, short-term:120 ℃. Dynamic:-20 ℃ to 80 ℃, short-term:100 ℃.


(5) Certificates & Approvals:
CE, ROHS, PAHS, REACH, SGS & IP68. These earth friendly non-metallic cable glands comply with the ROHS, PAHS, REACH directives of European Union.


(6) Main Properties:
Waterproof & liquid tight, resistant to weak acid & alkaline, corrosion-resistant, UV stabilized, anti-aging, insulating, durable, long-life, etc.


(7) How to Install:
Mount gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position.


(8) Functions & Applications:
Designed with anti-bending spiral spring & wide cable clamping range, such glands offer excellent cable protection against excessive twist at the bending point to reduce the risk of break to avoid electric leakage. With the characteristics of strong tensile strength, high sealing & anti-bending performance, good security and stability, they are widely applied for connecting and fastening cables or wires to provide effective protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.


(9) Specifications available:
* PG7, PG9, PG11, PG13. 5, PG16, PG21.
* M12, M16, M18, M20, M22, M25, M27.
* NPT1/4", NPT3/8", NPT1/2", NPT3/4".
