| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory or OEM |
| Certification: | CE, ROHS, REACH, IP68 |
| Model Number: | PG Type, Metric Type |
| Minimum Order Quantity: | 100 units |
| Price: | at very competitive prices from direct factory |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 2000000 units / month |
| Material: | Brass Or Copper | Seal & O-ring: | NBR (available In EPDM Or Silicon Rubber) |
|---|---|---|---|
| Plastic Insert: | UL-certified PA6, 94V-2 | Spiral Spring: | Stainless Steel AISI 301 |
| Size: | PG7~PG21 & M12 ~ M30 | Protection: | IP68 (when The Cable Diameter Is Within The Cable Range And Assemble The O-ring) |
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |

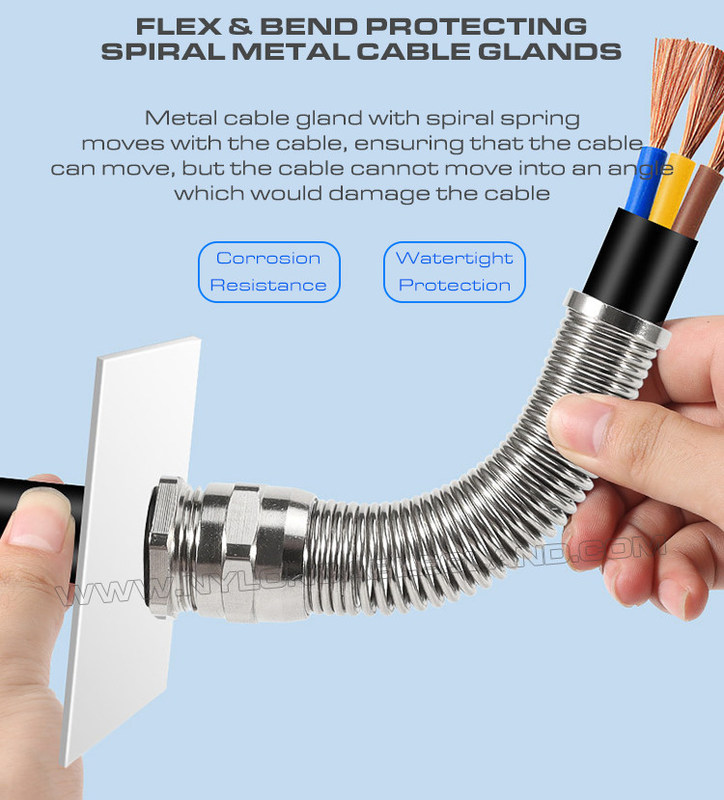

| Product name: | PG & Metric IP68 Unarmoured Cable Glands Nickel-plated Brass UV Resistant with Bend Protection |
| Sizes available: | PG7, PG9, PG11, PG13. 5, PG16, PG21 M12x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M25x1.5, M27x1.5, M28x1.5, M30x1.5 |
| Raw material: | Nickel-plated Brass for Locknut & Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw | |
| Stainless Steel 1.4310 / ASTM301 / SUS301 for Sealing Nut (Spiral Protector) | |
| NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber) | |
| Standard colors: | Metallic color |
| Main advantages: | Exquisite workmanship and beautiful good-looks, unique design of claws and seals can provide strong strain relief and protect cables from excessive bending and twisted to reduce the risk of failure. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread lengths: | Short thread & long thread are available |
| Thread system: |
PG: According to Germany standard DIN40430 Metric: according to the standard EN60423 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 2,000,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 50 pieces / bag, 50pieces /color box, special packing can be customized as requested |
