| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Yueqing Sino Cable Gland Factory |
| Certification: | CE, ROHS, IP68 |
| Model Number: | NPT Series |
| Minimum Order Quantity: | 500 pieces |
| Price: | at very competitive prices from direct factory |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 8-10 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 2000000 pieces / month |
| Material: | NBR For Sealing Parts | Color: | Black RAL9005 |
|---|---|---|---|
| IP Protection: | IP68 | Features:: | Waterproof, Acid & Oil Resistant, Pullout Resistance, UV Resistant, Anti-aging, Durable, Good Performance, Long-life. |

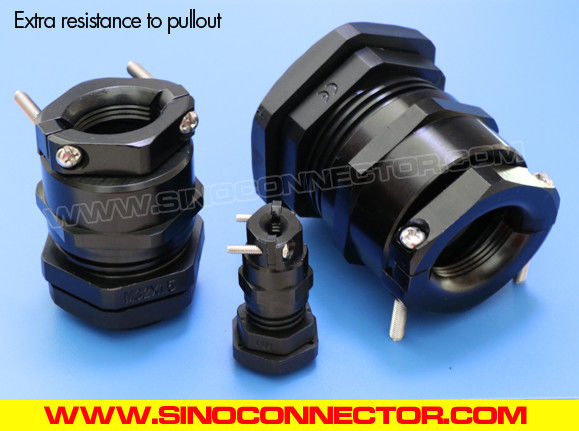

| Advantage: | Provide An Extra Resistance To Pull-out And Stron Strain Relief | Product Name: | Strain Relief Cable Gland |
How to use:
Mount the cable gland body to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position, finally tighten the two clamping screws.
Founded in 2005, we are one of the most professional manufacturer of cable accessories in China.
Currently we manufacture and export plastic cable glands, brass sealing glands, stainless steel cable glands, flexible tubes, pipe fittings, nylon cable straps, stainless steel cable ties, nail cable clips, etc.
With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!
Descriptions:
| Brand name: | Yueqing Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | IP68 Polyamide Cable Glands Black (RAL9005) NPT3/8"~NPT1-1/2" with External Clamp for Moving Cables |
| Sizes available: | NPT3/8", NPT1/2", NPT3/4", NPT1", NPT1-1/4", NPT1-1/2“ |

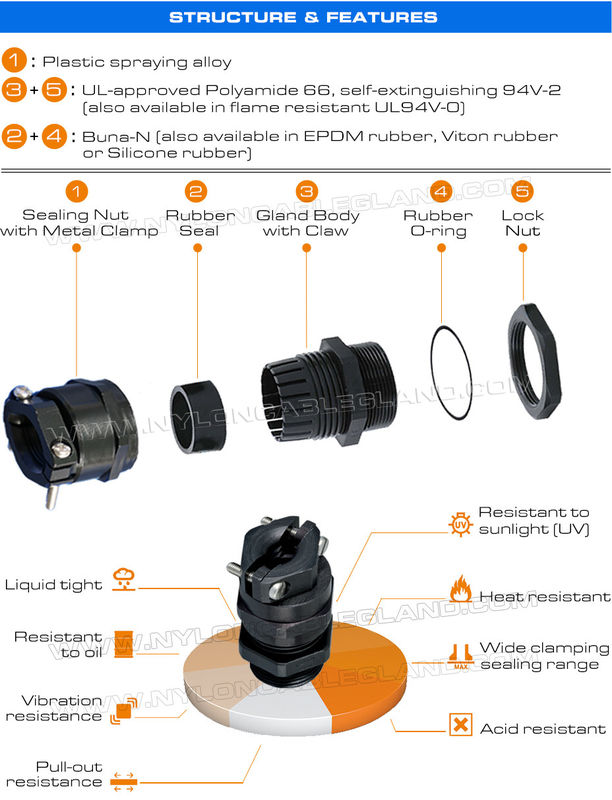

| Raw material: | UL-approved PA66 for locknut, gland body |
| Plastic-sprayed alloy for sealing nut | |
| NBR for hermetic seal & o-ring (also available in weatherproof EPDM or Silicone rubber) | |
| Standard colors: | Black RAL9005 |
| Main advantages: | Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread lengths: | Short thread & long thread are available |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 2,000,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air |
| Export packing: | 100 pieces / bag, 50pieces /color box, special packing can be customized as requested |
