| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| Model Number: | PG series / Metric series |
| Minimum Order Quantity: | 1000pcs |
| Price: | very competitive prices |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 3000000pcs / month |
| Standard Colors: | Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request) | Connection Thread Type: | PG Connecting Thread & Metric Connecting Thread |
|---|---|---|---|
| Quality Grade: | High Quality (6-10 Years Of Long Life For Indoor Application) | Main Advantages: | Waterproof & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, UV Stabilized, An |

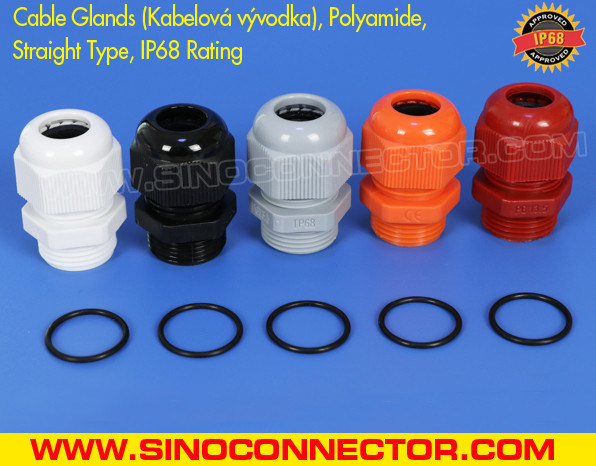

IP68 Rating Cable Glands (Kabelová vývodka IP68 / Kabelové vývodky IP68) in Plastic, Nylon or Polyamide arre a kind of cable entry system connecting cable to termina equipment (distribution box) to provide optimal strain relief to prevent the cable from pull-out and protect electrical or electronic components inside the equipment against the ingress of dust, water, weak acid & alkaline, oil, solvents, etc.
IP68 Rated Cable Glands (Kabelová vývodka IP68 / Kabelové vývodky IP68) in Plastic, Nylon or Polyamide are popularly used for connecting and fastening flexible cables or wire on electrical equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
How to use:
Mount gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position.
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | IP68 Rated Cable Glands (Kabelová vývodka IP68 / Kabelové vývodky IP68) in Plastic, Nylon or Polyamide |
| Sizes available: |
PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 |
| Raw material: | UL-approved new Polyamide 66, flammability 94V-2 for Sealing Nut, Locknut & Body (94V-0 material is optional) |
| NBR or weatherproof EPDM rubber for Seal & Washer | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | Short thread & long thread are available |
| Thread system: | According to german standard DIN40430. |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 1000 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
