Home ProductsFlex-Protecting Metal Brass Cable Glands

304 or 316 Stainless Steel Cable Glands (IP68 / IP69K) with Stainless Steel Protection

Good quality IP68 & IP69K Metal (Brass) Cable Glands for sales
Good quality IP68 & IP69K Metal (Brass) Cable Glands for sales
I'm Online Chat Now

304 or 316 Stainless Steel Cable Glands (IP68 / IP69K) with Stainless Steel Protection

China 304 or 316 Stainless Steel Cable Glands (IP68 / IP69K) with Stainless Steel Protection supplier
304 or 316 Stainless Steel Cable Glands (IP68 / IP69K) with Stainless Steel Protection supplier 304 or 316 Stainless Steel Cable Glands (IP68 / IP69K) with Stainless Steel Protection supplier

Large Image :  304 or 316 Stainless Steel Cable Glands (IP68 / IP69K) with Stainless Steel Protection

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, SGS, IP68, IP69K
Model Number: PG7~PG21

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: competitive prices (at the prices from direct factory)
Packaging Details: standard packing (special packing is also available on request)
Delivery Time: normally 14-20 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 1,000,000 pieces per month
Contact Now
Detailed Product Description
Material: Stainless Steel AISI304 And AISI316 Seal And O-ring: Oil-resistant NBR (EPDM Also Available On Request)
Plastic Insert: UL-approved PA66, 94V-2 Functions: Protect Cables Against Excessive Bending To Avoid The Breakage

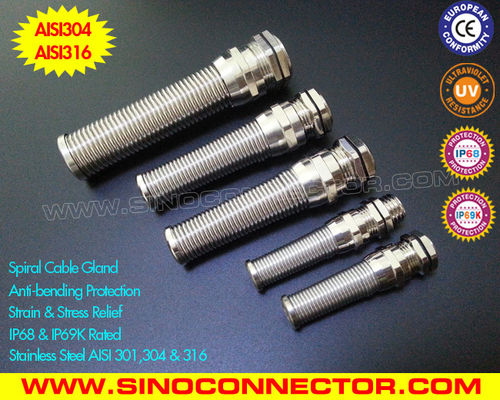

304 or 316 Stainless Steel Cable Glands (IP68 / IP69K) with Stainless Steel Protection


Functions & Applications:
304 or 316 Stainless Steel Cable Glands (IP68 / IP69K) with Stainless Steel Protection provide excellent cable protection against excessive twist at the bending point to reduce the risk of break to avoid electric leakage. Having the key features of strong tensile strength, high sealing performance, good security and stability, sustainable submersion and long service life, they are widely used for connecting and fastening flexible cables on electrical equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, surveillance cameras, plant engineerings, installations, meters and instruments, etc.

Our Advantages:
(1) Competitive prices from direct factory.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our cable glands reach IP68 waterproof protection.
(5) Timely delivery and good services are our principle.
(6) Free samples available.
(7) Special cable glands will be custom-made according to customer's original samples or drawings.
(8) OEM services can be available.

Product Discriptions
Thread Sealing Range AG (mm) Panel Mounting Hole (mm) GL (mm) H   (mm) d (mm) Spanner (mm) Packing (pieces/bag)
Min. (mm) Max. (mm)
PG7 3 6.5 12.5 12.7 5 55 6.8 14 50
PG7 2 5 12.5 12.7 5 55 6.8 14 50
PG9 4 8 15.2 15.4 6 66 8.2 17 50
PG9 2 6 15.2 15.4 6 66 8.2 17 50
PG11 5 10 18.6 18.8 6 77 10.3 20 20
PG11 3 7 18.6 18.8 6 77 10.3 20 20
PG13.5 6 12 20.4 20.6 6.5 88 12.3 22 20
PG13.5 5 9 20.4 20.6 6.5 88 12.3 22 20
PG16 10 14 22.5 22.7 6.5 98 14.3 24 20
PG16 7 12 22.5 22.7 6.5 98 14.3 24 20
PG21 13 18 28.3 28.5 7 111 18.4 30 10
PG21 9 16 28.3 28.5 7 111 18.4 30 10
















http://www.sinoconnector.com/product_read.asp?id=128&sid=50http://www.sinoconnector.com/prolist.asp?sid=50
