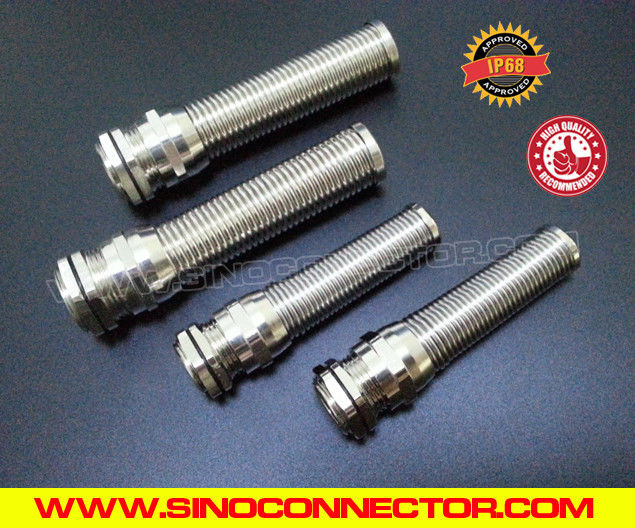

Metric Cable Glands Metal IP68 with Spiral Bending Protection
Functions & Applications:
Metric Cable Glands Metal IP68 with Spiral Bending Protection offer excellent cable protection against excessive twist at the bending point to reduce the risk of break to avoid electric leakage. With the characteristics of strong tensile strength, high sealing performance, good security and stability & sustainable submersion, they are widely used for connecting and fastening flexible cables on electrical equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
Our Advantages:
(1) Competitive prices from direct factory.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our cable glands reach IP68 waterproof protection.
(5) Timely delivery and good services are our principle.
(6) Free samples available.
(7) Special cable glands will be custom-made according to customer's original samples or drawings.
(8) OEM services can be available.
Product Discriptions
| Thread |
Cable Range |
AG (mm) |
Panel Mounting Hole (mm) |
GL (mm) |
H (mm) |
Spanner (mm) |
Packing (pcs/bag) |
| Min. (mm) |
Max. (mm) |
| M12*1.5 |
3 |
6.5 |
12 |
12.2 |
5 |
55 |
14 |
10 |
| M12*1.5 |
2 |
5 |
12 |
12.2 |
5 |
55 |
14 |
10 |
| M12*1.5 |
4 |
8 |
12 |
12.2 |
6 |
66 |
17 |
10 |
| M12*1.5 |
2 |
6 |
12 |
12.2 |
6 |
66 |
17 |
10 |
| M14*1.5 |
4 |
8 |
14 |
14.2 |
6 |
66 |
17 |
10 |
| M14*1.5 |
2 |
6 |
14 |
14.2 |
6 |
66 |
17 |
10 |
| M16*1.5 |
4 |
8 |
16 |
16.2 |
6 |
66 |
17 |
10 |
| M16*1.5 |
2 |
6 |
16 |
16.2 |
6 |
66 |
17 |
10 |
| M16*1.5 |
5 |
10 |
16 |
16.2 |
6 |
77 |
20 |
10 |
| M16*1.5 |
3 |
7 |
16 |
16.2 |
6 |
77 |
20 |
10 |
| M18*1.5 |
5 |
10 |
18 |
18.2 |
6 |
77 |
20 |
10 |
| M18*1.5 |
3 |
7 |
18 |
18.2 |
6 |
77 |
20 |
10 |
| M20*1.5 |
6 |
12 |
20 |
20.2 |
6.5 |
88 |
22 |
10 |
| M20*1.5 |
5 |
9 |
20 |
20.2 |
6.5 |
88 |
22 |
10 |
| M20*1.5 |
10 |
14 |
20 |
20.2 |
6.5 |
98 |
24 |
10 |
| M20*1.5 |
7 |
12 |
20 |
20.2 |
6.5 |
98 |
24 |
10 |
| M22*1.5 |
10 |
14 |
22 |
22.2 |
6.5 |
98 |
24 |
10 |
| M22*1.5 |
7 |
12 |
22 |
22.2 |
6.5 |
98 |
24 |
10 |
| M24*1.5 |
12 |
14 |
24 |
24.2 |
6.5 |
98 |
24/27 |
10 |
| M24*1.5 |
7 |
12 |
24 |
24.2 |
6.5 |
98 |
24/27 |
10 |
| M25*1.5 |
13 |
18 |
25 |
25.2 |
7 |
111 |
30 |
10 |
| M25*1.5 |
9 |
16 |
25 |
25.2 |
7 |
111 |
30 |
10 |
| M27*1.5 |
13 |
18 |
27 |
27.2 |
7 |
111 |
30 |
10 |
| M27*1.5 |
9 |
16 |
27 |
27.2 |
7 |
111 |
30 |
10 |
| M28*1.5 |
13 |
18 |
28 |
28.2 |
7 |
111 |
30 |
10 |
| M28*1.5 |
9 |
16 |
28 |
28.2 |
7 |
111 |
30 |
10 |
| M30*1.5 |
13 |
18 |
30 |
30.2 |
8 |
111 |
30/32 |
10 |
| M30*1.5 |
9 |
16 |
30 |
30.2 |
8 |
111 |
30/32 |
10 |
