Brass EMC (VSD) Shielded M20 Cable Gland, Adjustable 6-12mm EMV Screened Gland Connector for Automated System

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory or OEM
Certification: CE, ROHS, REACH, IP68
Model Number: M20x1.5
Minimum Order Quantity: 200pcs
Price: very competitive prices
Packaging Details: Normal packing: 100pcs per polybag ~ 5pcs per polybag (special packing is available on request)
Delivery Time: normally 8-10 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 2000000pcs / month
Detail Information
Material: NBR, EPDM, FPM For Sealing Parts Size: M20x1.5 (clamping Range: 6-21mm Or 10-14mm)
Protection Level: IP68 Color: Metallic Silver
Product Name: EMC Cable Gland, EMV Cable Gland, EMI Cable Gland

Product Description

Brass EMC (VSD) Shielded M20 Cable Gland, Adjustable 6-12mm Screened Gland Connector for Automated System

Product description:
EMC stands for Electromagnetic compatibility, such cable glands provide electromagnetic shielding to protect the cable and equipment at the point of attachment.

These glands also ensure the cables are not pulled out or twisted making the connection between the cable and the machine more secure and to ensure continued performance.

These EMC cable glands are made in brass and are metallic in color, they are highly durable and operate in temperatures that are expansive. These metal cable glands have different threads which provide good strain relief for cables, preventing them from breaking and ensuring their reliability and stability.

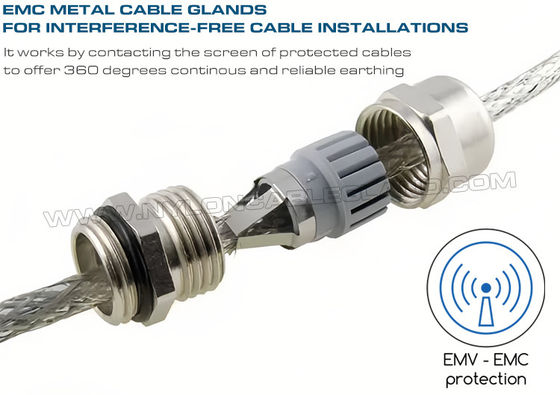

Equipped with its metal Intermediate Contact which can contact the screen of shielded cable, Brass EMC (VSD) Shielded M20 Cable Gland, Adjustable 6-12mm EMV Screened Gland Connector for Automated System help to achieve an optimum low-resistance EMC bonding and to be attached to withstand electromagnetic interference. Due to this simple metal earthing contact, the gland can provide continuous EMC protection. Such Glands are widely applied for connecting and fastening wires or cables on electrical equipments, machineries, telecommunications, network communication, automatic control, power supplies, LED solar lighting, machine manufacturing, automible manufacturing, plant engineerings, bulding installations, etc.

Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.

About us:
We are one of the most professional manufacturer of Cable Glands in China. Currently we manufacture and export Nylon Cable Glands & Metal Cable Glands with PG, Metric, NPT, G, BSC & BSP Threads. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!

Discriptions:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: Brass EMC (VSD) Shielded M20 Cable Gland, Adjustable 6-12mm EMV Screened Gland Connector for Automated System
Sizes available:

M20x1.5 (clamping range: 6-12mm or 10-14mm)

Raw material: Nickel-plated Brass for Locking Nut, Sealing Nut & Body
UL-approved nylon 66, 94V-2 for Clamping Claw
NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber)
Standard colors: Metallic color
Main advantages: Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and provide continuous EMC protection. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, ROHS, REACH, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths: Short thread & long thread are available
Thread system: Metric: according to the standard EN60423
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
OEM service: Yes, available
Supply capability: 2,000,000 pieces per month
Minimum quantity: 200 pieces
Samples available: Free samples available upon request
Delivery time: Normally 5-7 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing: 100 pieces / bag, 50pieces /color box, special packing can be customized as requested





























Pictures:

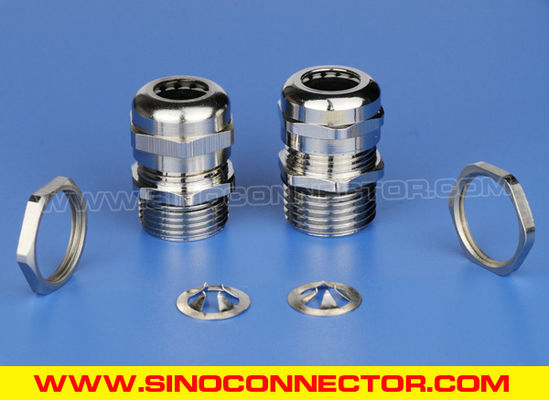

Brass EMC (VSD) Shielded M20 Cable Gland, Adjustable 6-12mm EMV Screened Gland Connector for Automated System

Brass EMC (VSD) Shielded M20 Cable Gland, Adjustable 6-12mm EMV Screened Gland Connector for Automated System 1


Brass EMC (VSD) Shielded M20 Cable Gland, Adjustable 6-12mm EMV Screened Gland Connector for Automated System 2
