| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, REACH, IP68, IP69K |
| Model Number: | PG series |
| Minimum Order Quantity: | 500 pieces |
| Price: | Best prices from direct factory |
| Packaging Details: | standard packing (special packing is also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 3,000,000 pieces / month |
| Features: | Weather And UV Resistance, Acid & Corrosion Resistance, Etc | Material: | Brass Or Copper |
|---|---|---|---|
| Plastic Insert: | UL-certified PA6, 94V-2 | Seal And O-ring: | NBR, EPDM, Viton, SILICONE Rubber |
| Protection Grade: | IP68 (when Assemble The O-ring On The Groove) |
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |

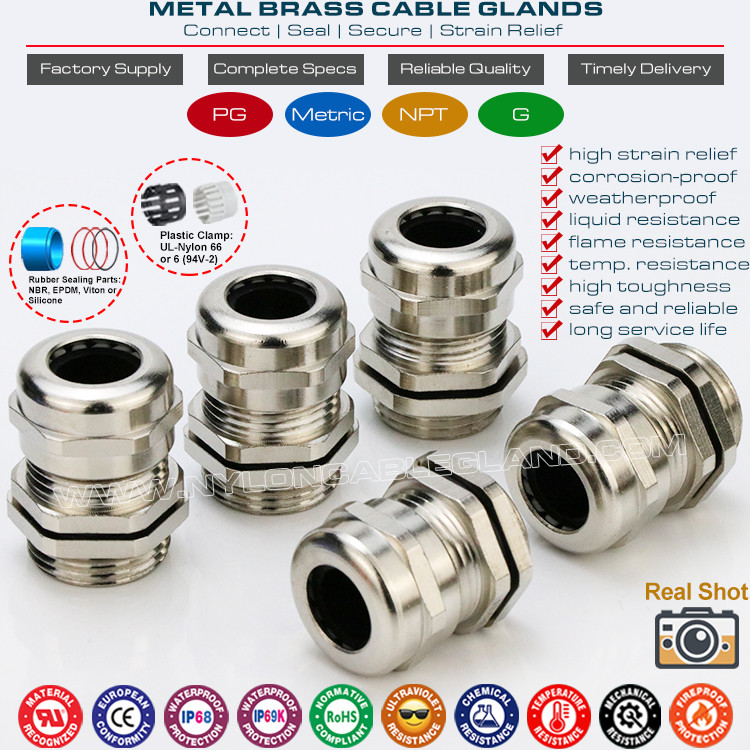

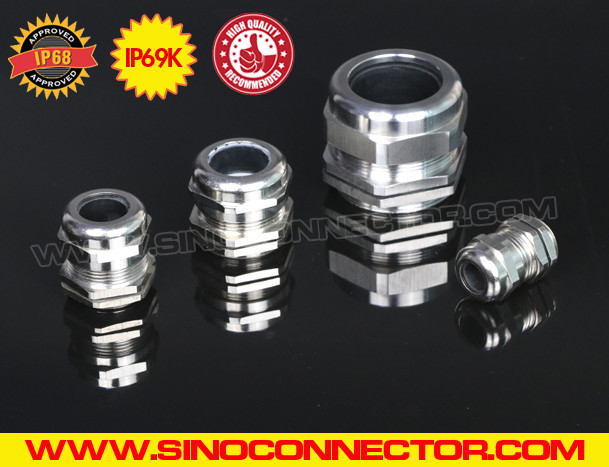

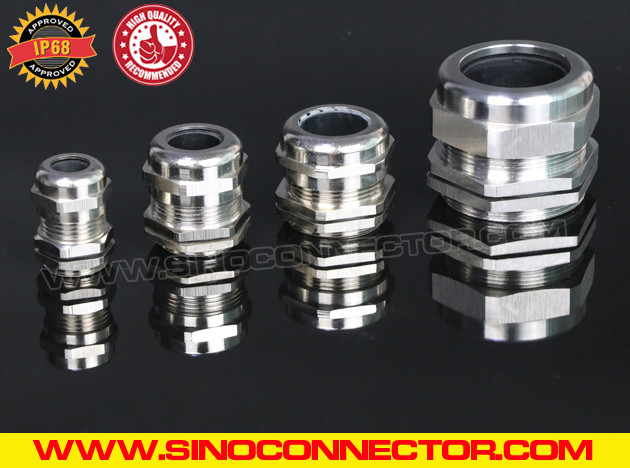

| Product name: | IP68 Watertight Copper Cable Glands, PG7~PG48 Adjustable Metallic Gland Connectors IP69K Waterproof Brass Cable Joints |
| Sizes available: | PG7,PG9,PG11,PG13.5,PG16,PG21,PG29,PG36,PG42,PG48 |

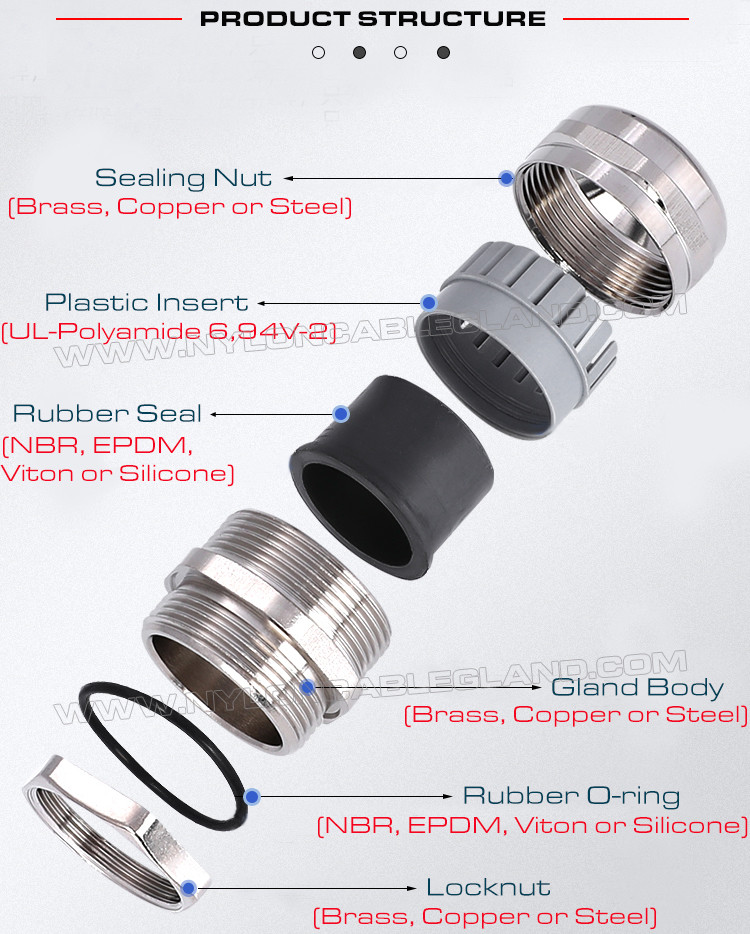

| Raw material: | Nickel-plated brass for Locking Nut, Sealing Nut and Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw | |
| NBR for Seal & O-Ring (available in EPDM or Silicone rubber) | |
| Standard colors: | Metallic silver color |
| Certifications: | CE, ROHS, REACH, IP68, IP69K |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Lengths of thread: | Short thread and long thread are available |
| Thread system: | According to DIN40430 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM services: | Yes, available |
| Supply capability: | 2,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples are available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | Shipment by EMS / TNT / DHL / UPS / FEDEX, By sea or By air |
| Export packing: | 100 pieces / bag, 50pieces /color box, special packing can be customized as requested |
