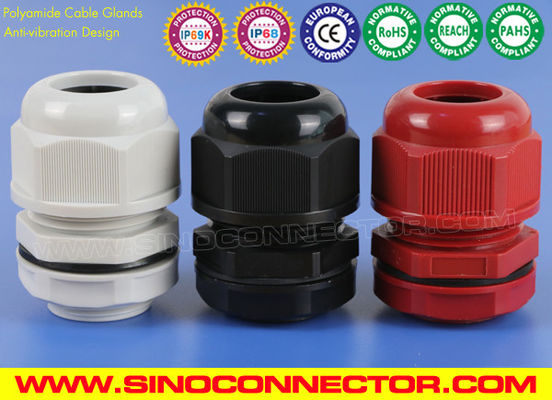

Polyamide IP68 Anti-Vibration Cord Cable Glands (Plastové Vývodky / Plastová Kabelová Vývodka)

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, ROHS, PAHS, REACH, SGS, IP68, IP69K
Model Number: M12x1.5 ~ M63x1.5
Minimum Order Quantity: 500 pieces
Price: at very competitive prices
Packaging Details: standard export packing (special packing also available on request)
Delivery Time: normally 5-8 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 3000000 pieces / month
Detail Information
Size: Full Sizes Protection Level: IP68, IP69K
Material: UL-approved PA66, 94V-2 (94V-0 Is Optional) Standard Colors: Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request)
Thread System: According To The Standard EN60423 Quality Grade: High Quality (6-12 Years Of Long Life For Indoor Application)
Main Advantages: Weather Resistant & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, Anti-UV

Product Description

Polyamide IP68 Anti-Vibration Cord Cable Glands (Plastové Vývodky / Plastová Kabelová Vývodka) has the features of wide clamping range, high stress and strain relief, waterproof function & anti-vibration mechanism, they are widely applied for connecting and sealing cables or wires to provide effecitve protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: Polyamide IP68 Anti-Vibration Cord Cable Glands (Plastové Vývodky / Plastová Kabelová Vývodka)
Sizes available: M12, M16, M18, M20, M25, M32, M40, M50, M63
Raw material: UL-approved new Polyamide 66, flammability 94V-2 for Sealing Nut, Locknut & Body (contact us for 94V-0 material)
Weatherproof EPDM rubber for Seal & Washer
Standard colors: Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request)
Main advantages: Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range, the anti-vibration sealing nut making a "click" sound provides anti-vibration mechanism and firmly holds and protects cables from becoming loose during the operation. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, ROHS, PAHS, REACH, SGS, IP68, IP69K
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the Washer)
Thread lengths: Short thread & long thread are available
Thread system: According to the standard EN60423
Operation temp.: Static: -40℃ to +100℃, short-term: +120℃. Dynamic: -20℃ to +80℃, short-term: 100 ℃
Quality grade: High quality can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications
OEM service: Yes, available
Supply capability: 3,000,000 pieces per month
Minimum quantity: 500 pieces
Samples available: Free samples available upon request
Delivery time: Normally 5-7 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: Shipment by EMS / TNT / DHL / UPS / FEDEX, shipment by sea or by air
Export packing: 100 pieces per bag, 100 pieces per color box, special packing can be customized as requested


Polyamide IP68 Anti-Vibration Cord Cable Glands (Plastové Vývodky / Plastová Kabelová Vývodka)Polyamide IP68 Anti-Vibration Cord Cable Glands (Plastové Vývodky / Plastová Kabelová Vývodka)
