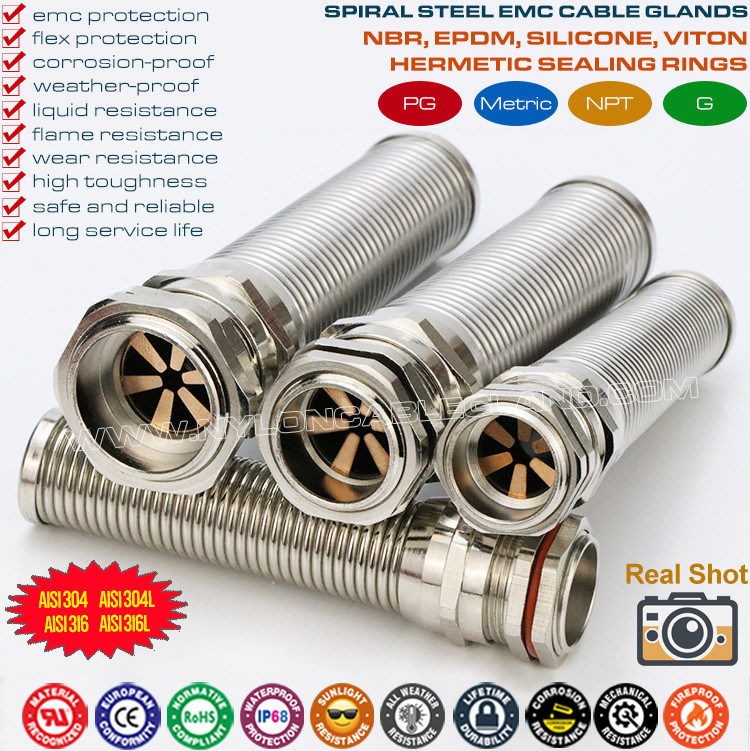

NPT Thread Stainless Steel EMC Cable Glands (Cord Grips) IP68 with Spiral Flex Protector

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory or OEM
Certification: CE, SGS, RoHS, IP68
Model Number: NPT series
Minimum Order Quantity: 100 pieces
Price: at most competitive prices from direct factory
Packaging Details: export packing (special packing is also available on request)
Delivery Time: normally 8-12 days
Payment Terms: T/T, L/C, Western union, Cash
Supply Ability: 200,000 pieces per month
Detail Information
Product Name: EMC Cable Glands Stainless Steel With Spiral Material: Stainless Steel Grade 304, 304L, 316 Or 316L
Clamping Claw: UL-certified PA6 (Nylon 6), 94V-2 Seal & O-ring: NBR, EPDM, Silicone, Viton Rubber
Color: Metallic Silver Model: NPT1/4", NPT3/8", NPT1/2", NPT3/4"
Protection: IP68 & Electromagnetic Compatibility (EMC) PG Thread: As Per ANSI/ASME B 1.20.1
Advantages: Resistant To Weather, High And Low Temperature & EMC Protection

Product Description

Description & Applications:

Equipped with internal metal Intermediate Contact Disc which can contact the screen of shielded cable to provide 360 degreeearthing, NPT Thread Stainless Steel EMC Cable Glands (Cord Grips) IP68 with Spiral Flex Protector helps to achieve an optimum low-resistance EMC bonding and to be attachedto withstand the interference of electromagnetic radiation from cables carrying high levels of harmonics.Due to this metal earthingcontact,such a gland can provide continuous EMC protection against electromagnetic interference and the cable range is the samewhen compared with a normal gland.In addition,EMC stainless steel cord grips with spiral pigtail limits the cable bending to avoidexcessive twist and protect the cable jacket against break at the bending point to reduce the risk of electric leakage.

It is resistant to dust, dirty, seawater, acid, alcohol, oil, grease and common solvent. Besides, it does well in insulation, it is secure and safe.
They are popular in the applications of shipbuilding, offshore platform and facility, paper making, sewerage treatment, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.

Product details:
No. Item Description
1 Place of origin: Zhejiang, China
2 Manufacturer: Yueqing Sino Cable Gland Factory
3 Product name: NPT Thread Stainless Steel EMC Cable Glands (Cord Grips) IP68 with Spiral Flex Protector
4 Model: NPT1/4", NPT3/8", NPT1/2", NPT3/4"
5 Material: Stainless Steel 304, 304L, 316 or 316L
6 Seal & O-ring: NBR (also available in EPDM rubber, Silicone rubber or rubber)
7 Plastic insert: Polyamide 66 approved by UL, 94V-2 (also available in 94V-0)
8 Surface treatment: Polishing
9 Colors: Metallic silver
10 Features:

provide excellent bending protection and IP68 waterproof protection against the ingress of dirt, water and other liquids.

anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc.

11 Certifications: CE, ROHS, SGS, IP68
12 Protection: IP68 (when the cable diameter is within the clamping range and mount the O-ring)
13 Thread standard: According to ANSI/ASME B 1.20.1
14 Working temperature: Static:-40 ℃ to 100 ℃, short-term:120 ℃. (nylon parts & rubber parts)
Dynamic:-20 ℃ to 80 ℃, short-term:100 ℃ (nylon parts & rubber parts)
15 Quality grade: High quality
16 OEM service: Yes, available
17 Supply capability: 200,000 pieces per month
18 Price advantage: Most competitive prices from direct factory
19 Minimum quantity: Yes, negotiable
20 Sample availability: Free samples are available on request
21 Delivery time: 7-10 days after confirmation of orders
22 Payment terms: T/T, Western Union, Cash, L/C
23 Delivery terms: EXW, FCA, FOB, CIF, CNF
24 Shipping methods: by courier (EMS, TNT, DHL, UPS or FEDEX)
by air (Shanghai or Ningbo)
by sea (Shanghai or Ningbo)
25 Export packing: 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label)
100 pieces per box, 50 pieces per box (white box or OEM color box)
other special packings also available on request



NPT Thread Stainless Steel EMC Cable Glands (Cord Grips) IP68 with Spiral Flex Protector

Stainless Steel Spiral Strain Relief EMC (EMV, EMI) Cable Glands Cable Cord Grip Connectors Joints Fittings

Stainless Steel Spiral Strain Relief EMC Cord Grips EMV Flexible Cable Gland Connectors

NPT Thread Stainless Steel EMC Cable Glands (Cord Grips) IP68 with Spiral Flex Protector 3

NPT Thread Stainless Steel EMC Cable Glands (Cord Grips) IP68 with Spiral Flex Protector 4
