| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, REACH, RoHS, IP68 |
| Model Number: | PG series |
| Minimum Order Quantity: | 100 pieces |
| Price: | lowest prices from direct factory |
| Packaging Details: | export packing (special packing is also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T, L/C, Western union, Cash |
| Supply Ability: | 500,000 pieces per month |
| Model: | PG7 ~ PG48 | Material: | Stainless Steel AISI304, AISI304L, AISI316 Or AISI316L |
|---|---|---|---|
| Color: | Metallic Silver | Protection: | IP68 |
| PG: | DIN EN40430 | Advantages: | Resistant To Sunlight And Ozone, Resistant To High And Low Temperature And Corrosion |
Advantages & Applications:
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |

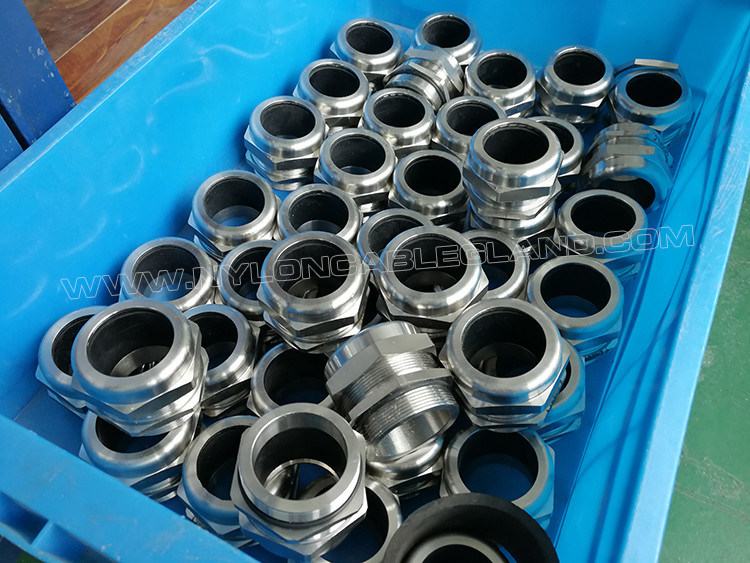

| 3 | Product name: | 304, 316, 316L Stainless Steel PG Cable Glands IP68 Watertight Metal Compression Glands with Fluoroelastomer Seals |
| 4 | Model: | PG7,PG9,PG11,PG13.5,PG16,PG21,PG29,PG36,PG42,PG48 |
| 5 | Material: | Stainless Steel AISI 304, AISI 304L, AISI 316 or AISI 316L |
| 6 | Seal & O-ring: | Fluoroelastomer rubber |
| 7 | Plastic insert: | Polyamide 66 approved by UL, 94V-2 (also available in 94V-0) |
| 8 | Surface treatment: | Polished |
| 9 | Color: | Metallic silver |
| 10 | Features: |
provide excellent strain relief for cables and provide IP68 protection against the ingress of dirt, water and other liquids. anti-oxidation, resistance to sunlight and ozone, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 11 | Certifications: | CE, ROHS, REACH, IP68 |
| 12 | Protection: | IP68 (when the cable diameter is within the clamping range and mount the O-ring) |
| 13 | Thread standard: | According to DIN EN40430 |
| 14 | Working temperature: | Normal use: -50 ℃ to 200 ℃ |
| Short term: -60 ℃ to 250 ℃ | ||
| 15 | Quality grade: | High quality |
| 16 | OEM services: | Available |
| 17 | Supply capability: | 500,000 pieces per month |
| 18 | Price advantage: | Lowest prices from direct factory |
| 19 | Minimum quantity: | Negotiable |
| 20 | Sample: | Free samples are available upon request |
| 21 | Delivery time: | 7-10 days after confirmation of orders |
| 22 | Payment terms: | T/T, Western Union, Cash, L/C at sight |
| 23 | Delivery terms: | EXW, FCA, FOB, CIF, CNF |
| 24 | Shipping methods: | by courier (EMS, TNT, DHL, UPS or FEDEX) |
| by air (Shanghai / Ningbo) | ||
| by sea (Shanghai / Ningbo) | ||
| 25 | Export packing: | 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label) |
| 100 pieces per box, 50 pieces per box (white box or OEM box) | ||
| other special packings also available on request |
