| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, SGS, RoHS, IP68 |
| Model Number: | NPT series |
| Minimum Order Quantity: | 200 pieces |
| Price: | lowest prices from direct factory |
| Packaging Details: | export packing (special packing is also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T, L/C, Western union, Cash |
| Supply Ability: | 500,000 pieces / month |
| Features: | Resistant To Weather, Corrosion, Sunlight, Ozone, Fire And Temperature | Model: | NPT3/4" - NPT2" |
|---|---|---|---|
| Material: | Stainless Steel Type 304, 304L, 316 Or 316L | Surface Treatment: | Polishing |
| Color: | Metallic | Protection: | IP68 |
| Thread Standard: | According To ANSI/ASME B 1.20.1 | Samples: | Free Samples Are Available |
| Trade Terms: | EXW, FCA, FOB, CIF, CNF |
Advantages & Applications:

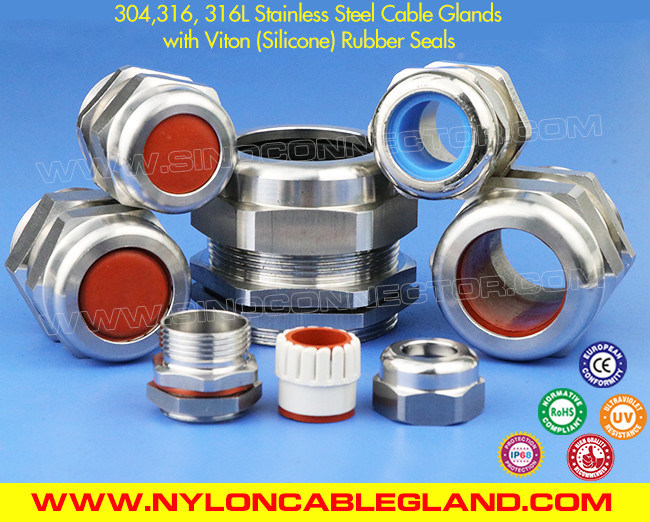

NPT Type IP68 Waterproof Metallic Stainless Steel Cable Glands with (Silicone) Seals are made in non-magnetic stainless steel material type AISI304, AISI316 or AISI 316L and are available in NPT tapered thread. Thy are designed to permit the entry of cables into electrical equipment or component which provide earthing, bonding, insulation, sealing, retention and strain relief, and offer mechanical supports for the cables.
IP68 Waterproof NPT Type Stainless Steel Dome Cable Glands with (Silicone) Seals have the good capability of chemical resistance, corrosion resistance and heat resistance, and they have also the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. They are highly resistant to dust, dirty, seawater, acid, alcohol, oil, fire, grease and common solvent and are popularly used in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |
| 3 | Product name: | NPT Type IP68 Waterproof Metallic Stainless Steel Cable Glands with (Silicone) Seals |
| 4 | Model: | NPT1/4", NPT3/8", NPT1/2", NPT3/4", NPT1", NPT1-1/4", NPT1-1/2", NPT2", NPT2-1/2" |
| 5 | Material: | Stainless Steel Type AISI304, AISI304L, AISI316 or AISI316L |
| 6 | Seal & O-ring: | (Fluoroelastomer) Rubber |
| 7 | Plastic insert: | UL-Polyamide 66, 94V-2 (also available in UL94V-0) |
| 8 | Surface treatment: | Polished |
| 9 | Color: | Metallic |
| 10 | Features: |
Provide excellent IP68 waterproof protection against the ingress of dirt, water and other liquids. Anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 11 | Certifications: | CE, ROHS, SGS, IP68, UV |
| 12 | Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| 13 | Thread: | According to ANSI/ASME B 1.20.1 |
| 14 | Temperatures: | Normal use: -20℃ to 260℃. |
| 15 | Quality grade: | High quality |
| 16 | OEM services: | Yes, available |
| 17 | Supply capacity: | 500,000 pieces each month |
| 18 | Prices: | Lowest prices from direct factory |
| 19 | Minimum quantity: | Yes, negotiable |
| 20 | Samples: | Free samples are available on request |
| 21 | Delivery time: | 7-10 days after confirmation of orders |
| 22 | Payment terms: | T/T, Cash, L/C |
| 23 | Delivery terms: | EXW, FCA, FOB, CIF, CNF |
| 24 | Shipping methods: | By courier (EMS, TNT, DHL, UPS or FEDEX) |
| By air (Shanghai or Ningbo) | ||
| By sea (Shanghai or Ningbo) | ||
| 25 | Export package: | 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label) |
| 100 pieces per box, 50 pieces per box (white box or OEM box) | ||
| other special packing is also available on request |
