| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory or OEM |
| Certification: | CE, ROHS, PAHS, REACH, IP68, IP69K, UV, HF |
| Model Number: | NCG series |
| Minimum Order Quantity: | 500 pieces |
| Price: | at most favorable prices from direct factory |
| Packaging Details: | standard packing (special packing is also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 5,000,000 pieces each month |
| Features: | Resistant To Weather, Water, Weak Acid, Alkaline, Corrosion & Ultraviolet Rays. | Model: | NCG-M20S-12 |
|---|---|---|---|
| Protection: | IP68, IP69K | Material: | UL-approved PA66, 94V-2 (94V-0 Is Optional) |
| Standard Colors: | Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request) | Thread Standard: | According To European Standard EN60423 |
| Quality Grade: | High Quality (6-12 Years Of Long Life For Indoor Application) |
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |

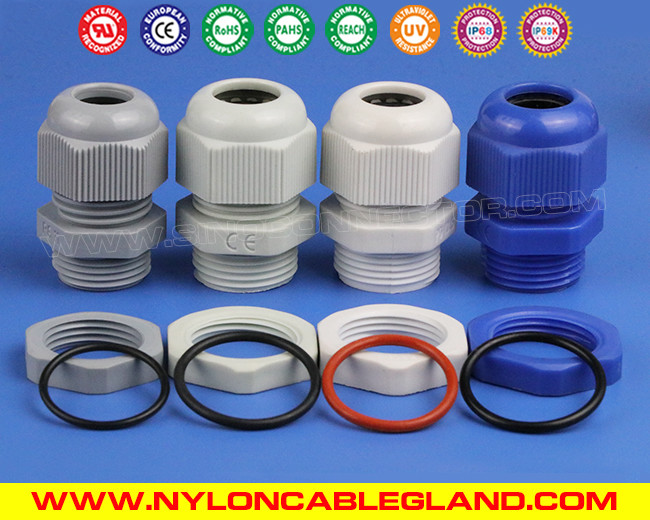

| Product name: | Plastic Metric Cable Gland, IP68 Watertight Cable Seal Joint Connector M20 (6-12mm) with O-ring for Junction Box |
| Available sizes: | M20x1.5 (cable range: 6-12mm) |
| Materials: | plastic parts: UL-polyamide 66, 94V-2 (contact us for 94V-0 material) |
| sealing parts: FPM (available in EPDM, Silicone or NBR) | |
| Colors: | grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, red RAL3031, white RAL9010, special colors can be customized according to customer's request) |
| Certifications: | CE, ROHS, PAHS, REACH, IP68, IP69K, UV, Halogen Free |
| IP protection: | IP68 / IP69K (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | available in short connecting thread & long connecting thread |
| Thread system: | according to the european standard EN60423 |
| Working temperature: |
static: -40℃ to +100℃, short-term: +120℃. |
| Quality grade: | high quality version can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
| OEM services: | yes, available |
| Supply capability: | 5,000,000 pieces each month |
| Minimum quantity: | 500 pieces |
| Samples available: | free samples are available upon request |
| Delivery time: | normally 5-8 days after confirmation of orders |
| Payment terms: | T/T, Western Union, L/C at sight |
| Shipment terms: | shipped by EMS / TNT / DHL / UPS / FEDEX, by sea / by air |
| Export packing: |
100 pieces per bag + 100 pieces per color box, |
