| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, REACH, IP68 |
| Model Number: | SCG series |
| Minimum Order Quantity: | 500 unities |
| Price: | lowest prices from professional factory in China |
| Packaging Details: | export packing (special packing is also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T, L/C, Western Union, Cash |
| Supply Ability: | 500,000 unities per month |
| Features: | Resistant To Weather, Corrosion, Sunlight, Ozone, Fire And Temperature | Model: | SCG Series |
|---|---|---|---|
| Material: | Stainless Steel Type 304, 304L, 316 Or 316L | Surface Treatment: | Polishing (Mirror Finish Polishing Also Available) |
| Color: | Metallic | Protection: | IP68 Rating |
| Thread Standard: | As Per EN60423 | Samples: | Free Samples Are Available |
| Trade Terms: | EXW, FCA, FOB, CIF, CNF |
Advantages & Applications:

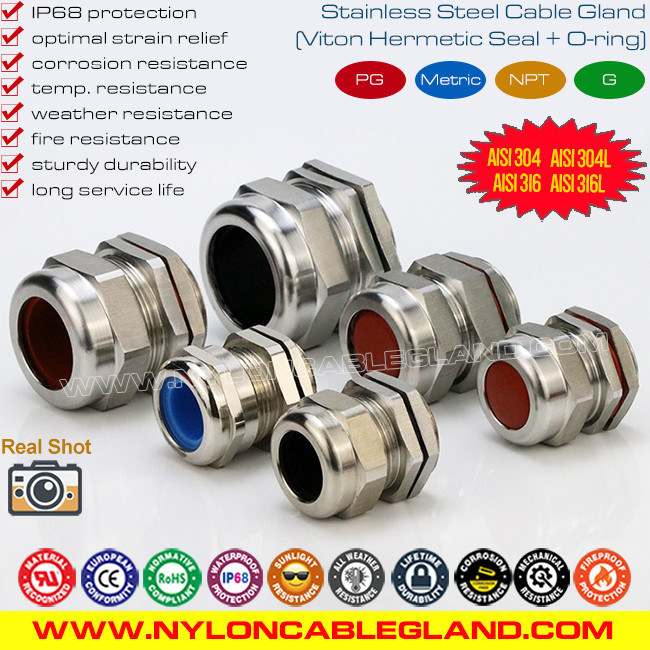

40mm Stainless Steel IP68 Cable Gland 304, 316, 316L M40x1.5 Thread with Silicone Seals for Cable O.D. 22-32mm is made in non-magnetic stainless steel material type AISI304, AISI316 or AISI 316L and is available with Metric connecting thread. It is designed to permit the entry of cables into electrical equipment or component which provide earthing, bonding, insulation, sealing, retention and strain relief, and offer mechanical supports for the cables.
It has the good capability of chemical resistance, corrosion resistance and heat resistance, and they have also the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. They are highly resistant to dust, dirty, seawater, acid, alcohol, oil, fire, grease and common solvent and are popularly used in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |
| 3 | Product name: | 40mm Stainless Steel IP68 Cable Gland 304, 316, 316L M40x1.5 Thread with Silicone Seals for Cable O.D. 22-32mm |
| 4 | Model: | M40x1.5 (cable range: 22-32mm) |
| 5 | Material: | Stainless Steel Type AISI 304, AISI 304L, AISI 316 or AISI3 16L |
| 6 | Seal & O-ring: | Silicone rubber |
| 7 | Plastic insert: | UL-Polyamide 66, 94V-2 (also available in UL94V-0) |
| 8 | Surface treatment: | Polishing (mirror finish polishing also available) |
| 9 | Color: | Metallic |
| 10 | Features: |
It offers excellent IP68 waterproof protection against the ingress of dirt, water and other liquids. Anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 11 | Certifications: | CE, ROHS, REACH, IP68 |
| 12 | Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| 13 | Thread: | According to EN 60423 |
| 14 | Temperatures: | Normal use: -20℃ to 260℃. |
| 15 | Quality grade: | High quality |
| 16 | OEM services: | Yes, available |
| 17 | Supply capacity: | 500,000 unities each month |
| 18 | Prices: | Lowest prices from direct factory |
| 19 | Minimum quantity: | Yes, negotiable |
| 20 | Samples: | Free samples are available on request |
| 21 | Delivery time: | 7-10 days after confirmation of orders |
| 22 | Payment terms: | T/T, Cash, L/C |
| 23 | Delivery terms: | EXW, FCA, FOB, CIF, C&F |
| 24 | Shipping methods: | By courier (EMS, TNT, DHL, UPS or FEDEX) |
| By air (Shanghai or Ningbo) | ||
| By sea (Shanghai or Ningbo) | ||
| 25 | Export package: | 100 unities per bag, 50 unities per bag (bag + neutral label or OEM label) |
| 100 unities per box, 50 unities per box (white box or OEM box) | ||
| other special packing is also available on request |
