| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Factory or OEM/ODM brands |
| Certification: | CE, UKCA, ROHS, REACH, PAHS, IP68, IP69K |
| Model Number: | NCG Series |
| Minimum Order Quantity: | 10,000 units |
| Price: | factory direct sales |
| Packaging Details: | standard packaging (special packaging also available on request) |
| Delivery Time: | normally 9-14 days |
| Payment Terms: | T/T,L/C,Western union |
| Supply Ability: | 2,000,000 units per month |

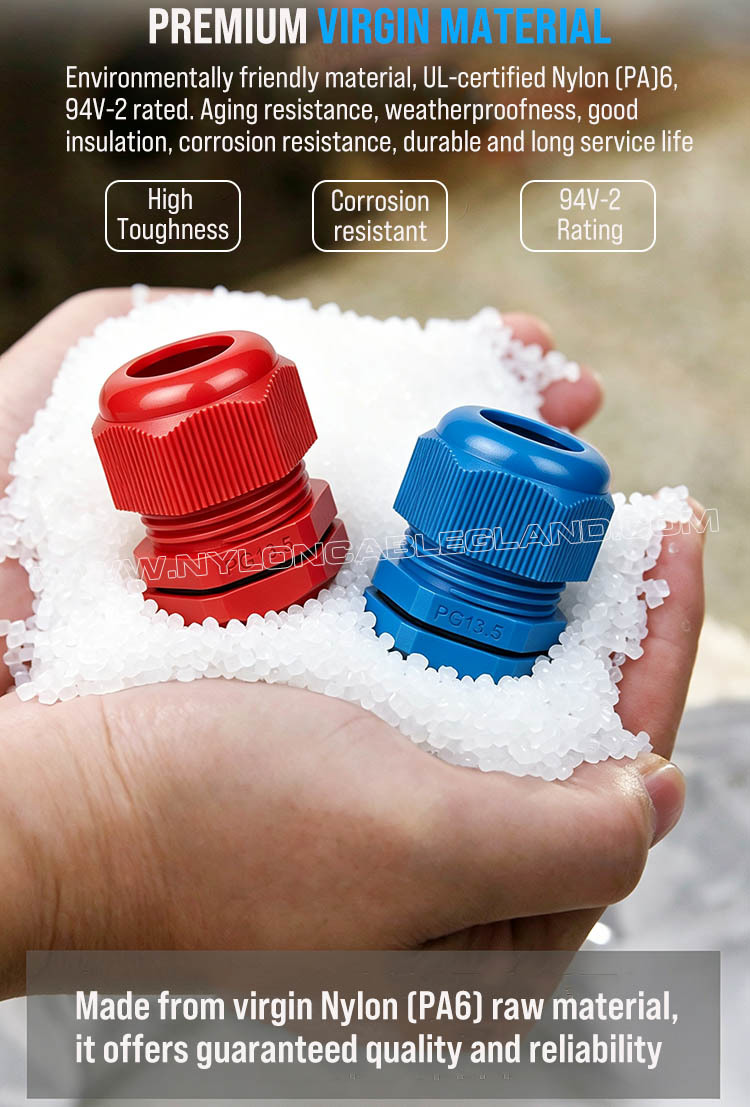

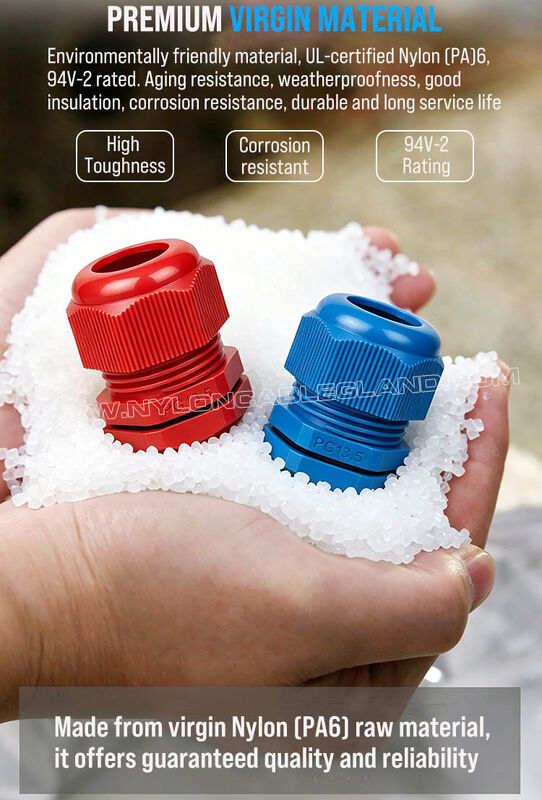

| Material: | UL-certified Polyamide 6 | Seal Ring: | NBR (also Available In EPDM, Silicone, FKM/FPM, FFKM/FFPM) |
|---|---|---|---|
| O-ring: | NBR (also Available In EPDM, Silicone, FKM/FPM, FFKM/FFPM) | Flammability: | V-2 Rating (as Per UL94) |
| PG Thread: | According To DIN 40430 | Test Standard: | EN 62444 / EN 50262 |
| Waterproofness: | IP68/IP69K | Specification: | PG13.5 (cable Range: 6-12 Mm & 5-9 Mm) |
| Keywords: | Colored Cable Glands, Colorful Cable Glands | Function: | Visual Identification And Cable Management |

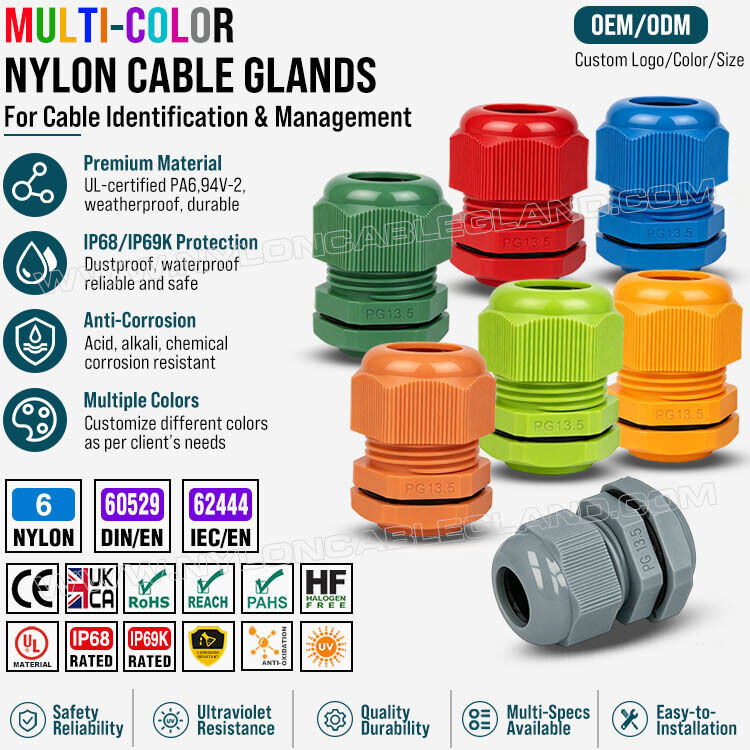

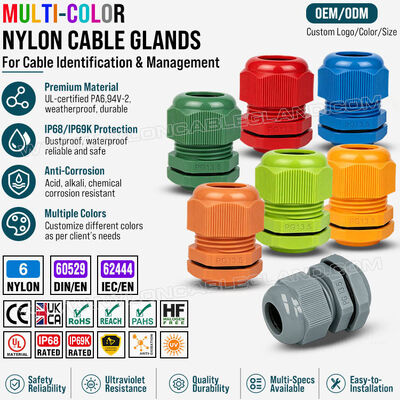

| Description: | Colorful Plastic Cable Gland, Nylon 6 (Polyamide 6, PA6), PG13.5 (6-12 Mm & 5-9 Mm), IP68/IP69K Version | Logo Custom: | Available |
| Size Custom: | Available | Color Custom: | Available |
| Brand Custom: | Available | Packaging Custom: | Available |
What Is a Colored Waterproof Nylon Cable Gland?
A colored waterproof nylon cable gland is a cable-entry and sealing device made primarily from engineering-grade nylon/polyamide (PA). It is used to securely pass electrical cables through an enclosure, control cabinet, junction box, machine housing, or other equipment while providing strain relief, sealing, and protection against water, dust, and environmental contaminants.

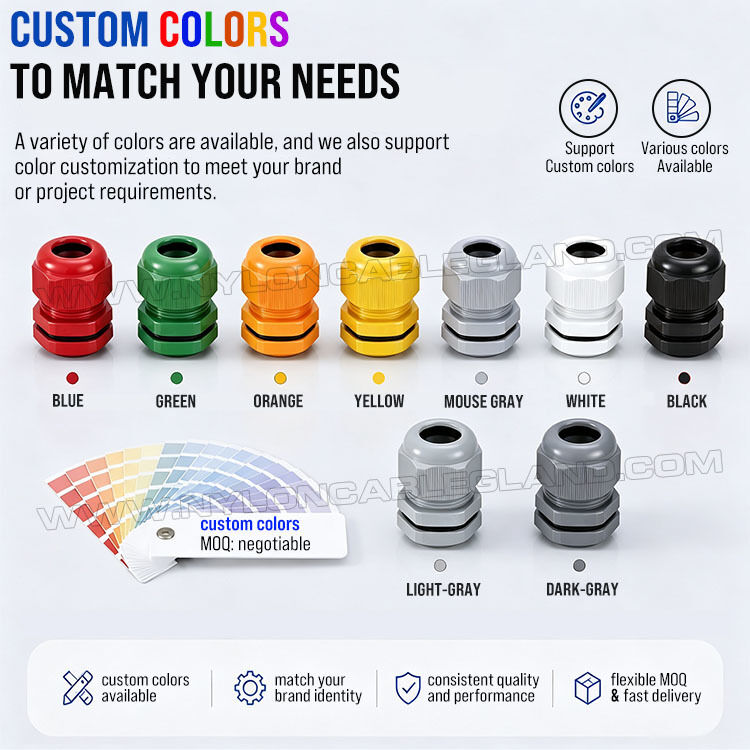

Unlike conventional black or gray cable glands, colored cable glands are available in colors such as red, blue, green, yellow, orange, white, and other customized colors. The color can be used for cable identification, circuit classification, product differentiation, or visual management.
Main Features & Advantages of the Colored Cable Glands
| Feature | Advantage |
|---|---|

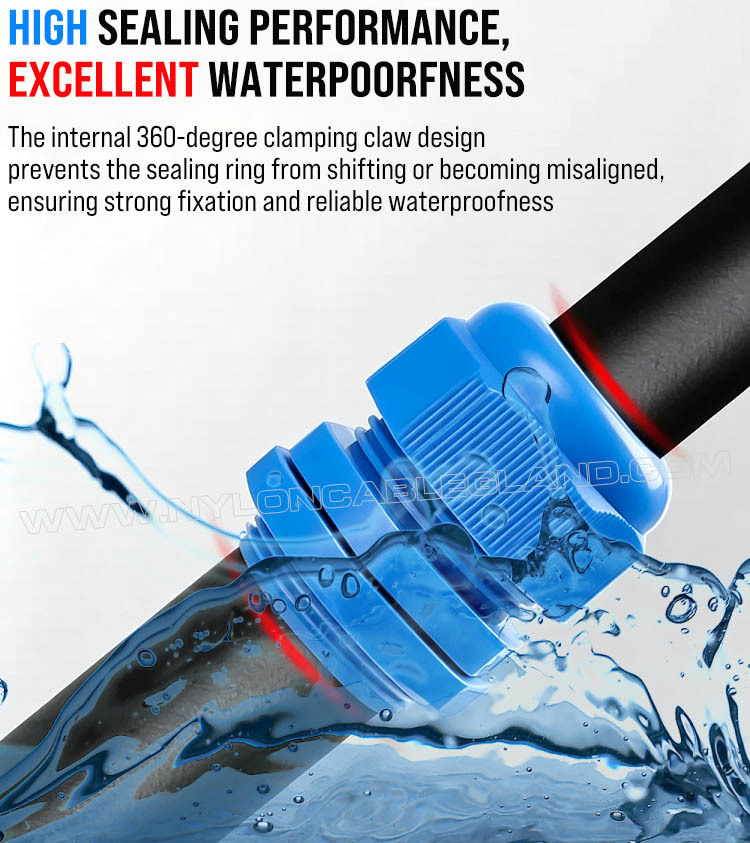

| Waterproof sealing | With an appropriate sealing ring and installation, many designs can achieve IP65/IP66/IP67/IP68 protection, depending on the specific product and test standard. |
| Lightweight | Nylon is considerably lighter than metal, helping reduce the overall weight of electrical equipment and cable assemblies. |
| Corrosion resistant | Nylon does not rust and is suitable for humid, wet, and many chemically exposed environments. |
| Excellent insulation | Nylon is electrically non-conductive, making it useful around electrical and electronic equipment. |
| Strain relief | The clamping mechanism grips the cable and helps prevent pulling, twisting, or vibration from being transferred to internal terminals. |
| Good mechanical strength | Engineering-grade nylon provides good impact resistance and dimensional stability for many industrial applications. |

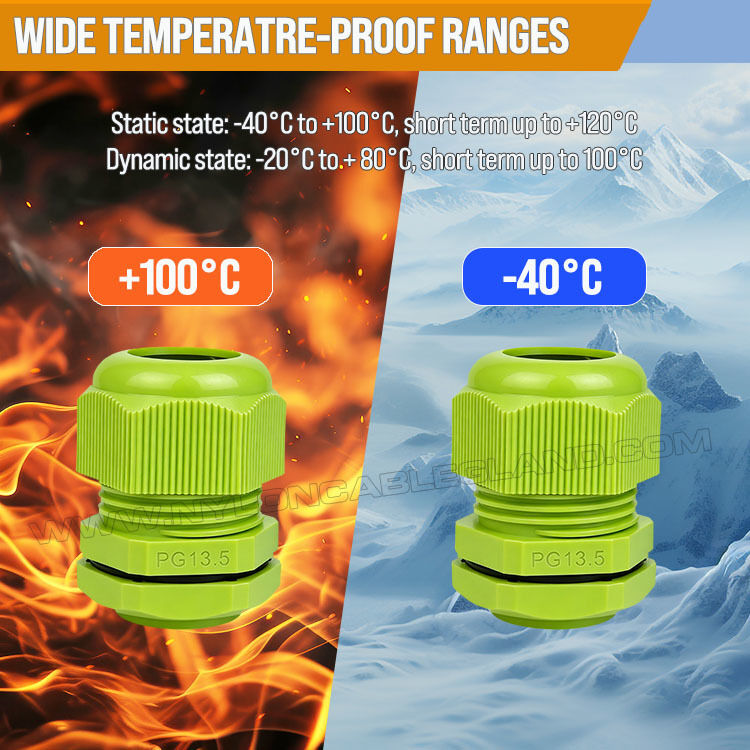

| Wide operating-temperature | The actual range depends on the nylon grade and sealing material; common industrial products are designed for approximately -40°C to +100°C, with some specialized versions rated higher. |
| Color identification | Different colors can identify different circuits, voltage classes, cable functions, equipment groups, or installation areas. |
| Easy installation | Typically consists of a gland body, locknut, sealing element, and clamping component, allowing relatively quick installation. |
| Cost effective | Generally less expensive and lighter than comparable brass or stainless-steel cable glands. |
| UV/weather resistance | UV-stabilized nylon grades can provide improved outdoor durability compared with ordinary unmodified nylon. |
| Customizable | Color, thread type, dimensions, sealing range, and materials can often be customized for OEM applications. |
Where Are Colored Nylon Cable Glands Used?
They are particularly useful where environmental protection and cable identification are both important.
Used on control cabinets, sensors, motors, PLC equipment, robotic systems, and automated production equipment.
Used for switch boxes, distribution cabinets, junction boxes, control panels, and electrical enclosures.
Common applications include solar/PV equipment, battery systems, energy-storage equipment, and charging equipment, subject to the required environmental and electrical specifications.
Suitable for outdoor control boxes, lighting equipment, monitoring systems, communication cabinets, and other weather-exposed equipment when the selected gland has the appropriate UV and IP rating.
Can be used in transportation equipment, railway-related electrical systems, traffic-control equipment, and infrastructure cabinets when the required mechanical, temperature, fire/smoke, and environmental specifications are met.
Used for cable entry and sealing in network cabinets, electronic enclosures, instrumentation, and communication equipment.
Corrosion-resistant nylon can be advantageous in humid environments, although marine applications may require specially qualified materials and glands.
Why Do We Use Different Colors?
Color is more than an aesthetic choice. For example:
Conclusion
A colored waterproof nylon cable gland combines the basic functions of a cable gland—cable sealing, strain relief, dust/water protection, and secure cable entry—with the additional benefit of color identification. Its low weight, corrosion resistance, electrical insulation, relatively low cost, easy installation, and wide range of colors make it particularly suitable for industrial automation, electrical equipment, control cabinets, renewable energy, outdoor equipment, communication systems, and electronic devices.
For demanding applications involving high mechanical loads, extreme temperatures, fire requirements, severe chemicals, or heavy industrial environments, the nylon grade, sealing material, IP rating, UV resistance, and applicable certifications should be checked carefully before selecting the gland.
