| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Factory or OEM Service |
| Certification: | CE, RoHS, REACH, LSHF |
| Model Number: | EBT Series |
| Minimum Order Quantity: | 2,000 pieces |
| Price: | direct factory supply |
| Packaging Details: | 100 pieces / bag (special packing is also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T, L/C, Western union, Cash |
| Supply Ability: | 5,000,000 pieces per month |
| Material: | 316L, 316 Or 304 Stainless Steel | Coating: | Epoxy / Polyester, Nylon 11 (Polyamide 11) |
|---|---|---|---|
| Color: | Black | Type: | Self-locking |
| Design: | Ball-locking Closure | Working Temperature: | -60℃ To +150℃ |
| Flammability: | UL 94V-0 | Process: | Electrostatic Spraying Of Epoxy Powder, High-temperature Cross-linking Curing (thermosetting) |
| Advantages: | Resistant To Acids, Alkalis, Salt Spray, Mineral Oils, And Most Solvents | Usage: | Organize Cables, Wires, Pipes, Plants, Etc |
| Application: | Widely Used For A Variety Of Corrosive Environments | Packaging: | 100 Pieces Per Bag |
| OEM/ODM Custom: | Available | Keywords: | Epoxy-coated Stainless Steel Cable Ties |
| Short Description: | 7.9mm X 150mm~1000mm Epoxy-coated Ball-locking Metal Cable Ties For Corrosive Environments |

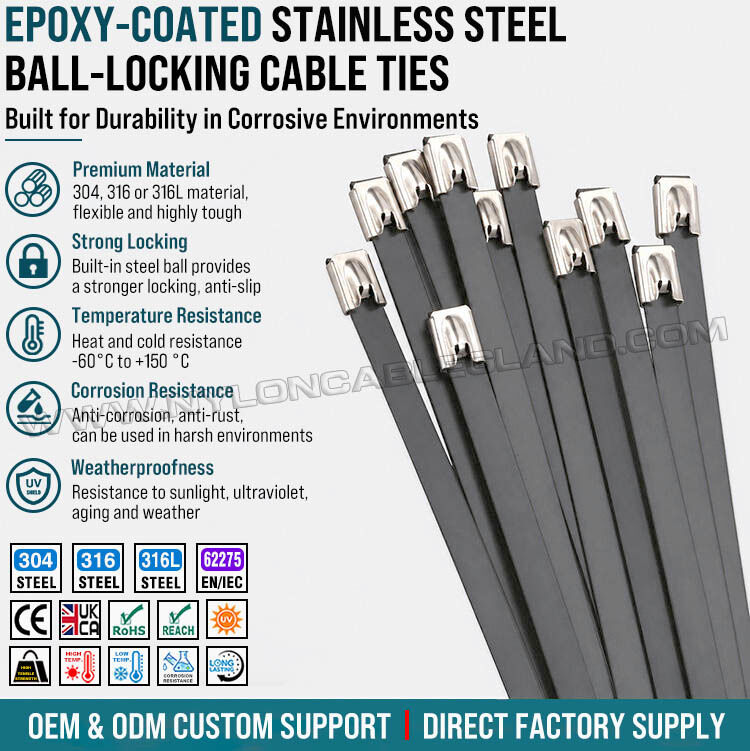

What Are Epoxy-Coated Metal Cable Ties?
The epoxy-coated metal cable ties (also known as epoxy-coated stainless steel cable ties) are metal fasteners made from stainless steel and covered with a protective epoxy resin coating applied via electrostatic powder spraying and high-temperature curing. The epoxy resin crosslinks into a rigid, thermoset protective layer firmly bonded to the steel surface. They are designed to bundle, secure, and organize cables, wires, hoses, and other components in corrosive environments.

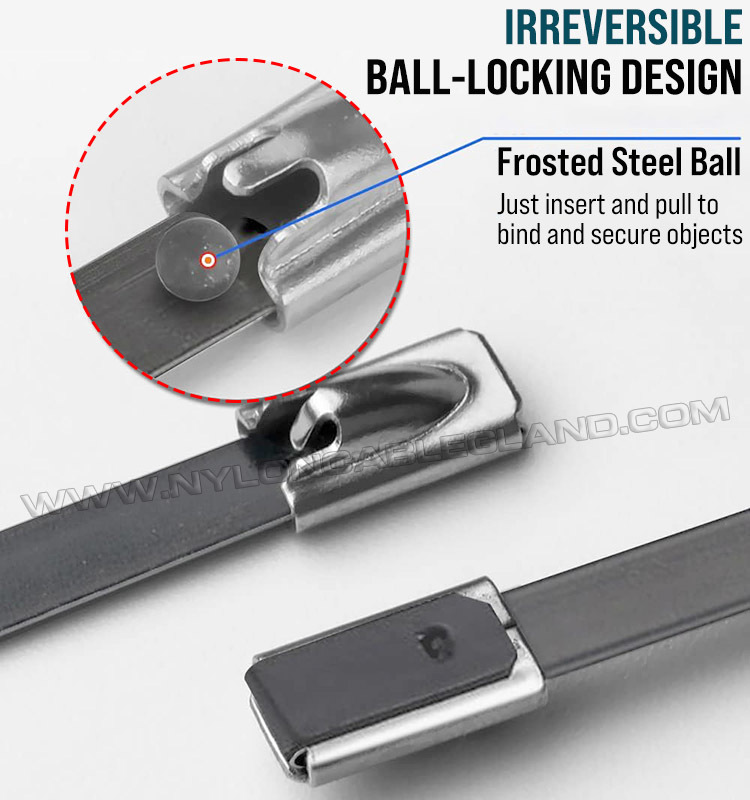

304, 316 or 316L stainless steel is used as the base material with a black epoxy resin coating over the stainless steel strap. A ball-lock mechanism secures the cable tie after installation, creating a strong, permanent fastening that cannot be released by the user under normal conditions.
The stainless steel material provides mechanical strength and corrosion resistance, while the epoxy coating adds a protective surface, helps reduce direct metal contact with bundled cables, and provides additional resistance to environmental exposure.
2. Basic Information
| Width: | 7.9 mm (0.311 inch) |
| Lengths: | 150mm ~ 1000mm (5.90 inch ~ 39.37 inch) |
| Thickness | 0.35mm (0.014 inch) |
| Maximum bundle diameter: | 37mm ~ 206mm (1.46 inch ~ 8.11 inch) |
| Tensile strength: | 270 lbs (1200 N / 122 kgs) |
| Material: | 316L/316/304 stainless steel |
| Coating: | epoxy / polyester, nylon 11 (polyamide 11) |
| Color: | black (other colors can be customized upon request) |
| Working temperature: | -60 ℃ to +150 ℃ |
| Type | ball-locking |
| Feature: | resistant to heat and cold, resistant to corrosion |
| Certificate: | CE, ROHS, REACH, LSHF |
| OEM/ODM: | available |
| Supply capability: | 5,000,000 pieces per month |
| Application: | electrical, electronic, shipbuilding, railway, petrochemical, etc. |
| Sample: | available |
| Delivery time: | normally 8-10 days after confirmation of orders |
| Payment mode: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | shipped by courier (EMS / TNT / DHL / UPS / FEDEX); shipped by sea or by air; |
| Export packaging: | (A) standard packaging: 100pcs per polybag + neutral label + export carton; (B) OEM packaging: 1: colorful printing poly bag + export carton 2: colorful inner box + export carton 3: OEM label, inner box, blister |
3. What Features & Properties Do They Have?
1. Corrosion resistance
The dense epoxy barrier provides excellent protection against salt spray, dilute acids, alkalis and most mineral oils. It isolates the stainless steel from corrosive media.
2. Temperature performance
Continuous operating temperature: -40 °C to +110 °C; short-term peak temperature up to 130 °C. The coating will not melt under heat, only degrade gradually if exceeding the rated long-term temperature.
3. Mechanical & coating
The epoxy coating is thin (around 60–100 μm), hard and smooth with high abrasion resistance. It has high rigidity, so the coating tends to crack or peel off under repeated sharp bending.

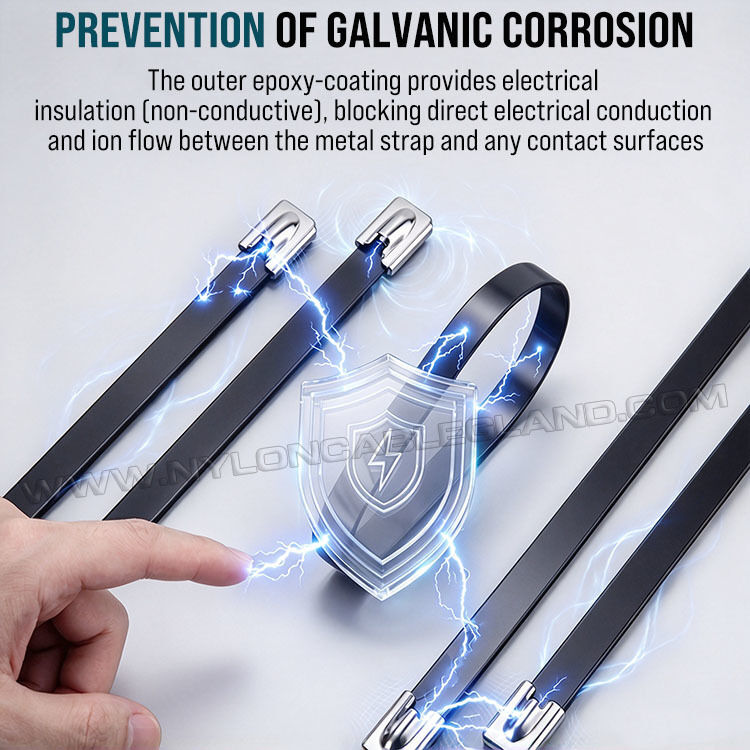

4. Electrical insulation
Offers good insulation to prevent accidental short circuits and separate dissimilar metals to avoid galvanic corrosion.
5. Weathering limitation
Poor UV resistance. Long-term outdoor exposure causes chalking, fading and coating degradation; not suitable for continuous sun exposure.
6. Flame retardancy
Custom formulations can reach UL94 V-0 flame rating. It is halogen-free in standard industrial grades.
7. Visual identification

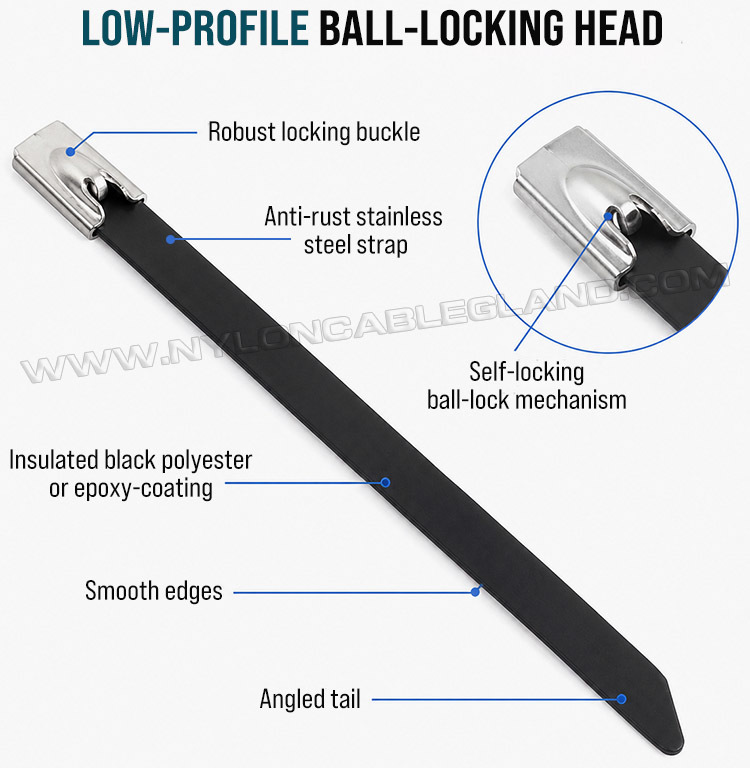

Designed with metallic self-locking ball-bearing head, the natural stainless steel buckle contrasts with the black-coated metal strap, making it instantly distinguishable from black plastic cable ties.
4. Where Are They Mainly Used?
The epoxy-coated stainless steel cable ties are primarily used in industries that require strong fastening, environmental protection, and dependable cable management.
1. Railway and Mass Transit
Used to secure electrical cables, wiring harnesses, and control-system cables in trains and related infrastructure. Coated edges help reduce damage to cable insulation, while metal construction supports demanding operating conditions.
2. Marine and Shipbuilding
Used for cable routing and fastening in ship compartments, engine rooms, and related marine installations. Stainless steel grade selection is important in saltwater environments, particularly where chloride exposure is significant.
3. Oil and Gas Industry
Used to organize electrical, instrumentation, and control cables on offshore platforms and industrial facilities. The required material grade, coating compatibility, and temperature rating should be matched to the actual operating environment.
4. Mining and Heavy Industry
Suitable for securing cables and protective tubing around machinery, structural steelwork, and industrial equipment where mechanical durability and environmental resistance are important.
5. Chemical and Process Industries
Used to fasten instrumentation cables, control wiring, and cable bundles around process equipment. The selected coating and stainless steel grade must be compatible with the chemicals present; epoxy coating alone does not guarantee resistance to every chemical.
6. Power, Electrical and Infrastructure Installations
Used in suitable electrical enclosures, cable trays, outdoor wiring systems, and industrial installations to organize and secure cable bundles. Product ratings must meet the requirements of the specific installation.
* Note: Not recommended for open-air solar, tower or long-term outdoor installations.
5. Summary
The epoxy-coated stainless steel cable ties combine the mechanical strength of stainless steel with the added protection of an epoxy resin coating. Their main advantages include strong fastening, corrosion protection, resistance to selected chemicals and weather conditions, protection of cable surfaces, and a secure locking design.
They are especially useful in railway transportation, shipbuilding, offshore oil and gas, mining, chemical processing, electrical infrastructure, and other demanding industrial environments. They are a practical solution for applications that require durable metal fastening with additional surface protection.
