| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Factory or OEM/ODM brands |
| Certification: | CE, UKCA, ROHS, REACH, PAHS, IP68, IP69K |
| Model Number: | NCG Series |
| Minimum Order Quantity: | 10,000 units |
| Price: | factory direct supply |
| Packaging Details: | 100pcs per bag (special packaging also available on request) |
| Delivery Time: | normally 8-12 days |
| Payment Terms: | T/T,L/C,Western union |
| Supply Ability: | 2,000,000 units per month |
| Material: | UL-certified Polyamide 6 (also Available In Polyamide 66) | Seal Ring: | NBR (also Available In EPDM, Silicone, FKM/FPM, FFKM/FFPM) |
|---|---|---|---|
| O-ring: | NBR (also Available In EPDM, Silicone, FKM/FPM, FFKM/FFPM) | Flammability: | V-2 Rating (as Per UL94) |
| PG Thread: | According To DIN 40430 | Thread Length: | 15mm (other Lengths Can Be Customized) |
| Test Standard: | EN 62444 / EN 50262 | Watertightness: | IP68 / IP69K |
| Specification: | PG13.5 (cable Range: 6-12 Mm & 5-9 Mm) | Function: | Visual Identification And Cable Organization |
| Color: | Blue, Red, Green, Orange, Yellow, White, Dark-gray, Silver Gray, Light-gray, Black | Keywords: | Color Cable Glands, Colorful Cable Compression Glands |
| Description: | Nylon 6 (polyamide 6) Colorful Cable Glands PG13.5 For 6-12 Mm Or 5-9 Mm Cables | Custom Logo: | Available |
| Custom Size: | Available | Custom Color: | Available |
| Custom Brand: | Available | Custom Packaging: | Available |

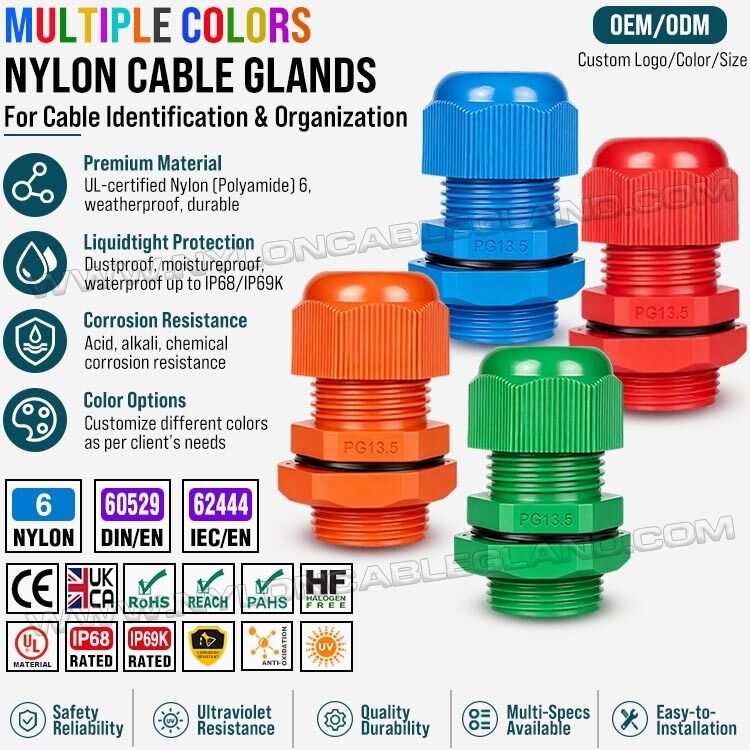

1. What Is A Color Plastic Cable Gland With Long Thread?
A color plastic cable gland with long thread is a kind of watertight connector designed to secure cables where they pass through an electrical enclosure, control panel, junction box, or equipment housing.
It is typically made from engineering nylon polyamide 6 (or nylon polyamide 66), and features an extended threaded mounting section. Compared with a standard-thread cable gland, the longer thread provides more mounting length, making it suitable for thicker enclosure walls, mounting plates, and panels.
Being a direct factory, colored version we can supply is available in black, grey, white, red, blue, green, yellow, orange, and other custom colors. The extended thread is designed to facilitate secure mounting, while the gland's clamping and sealing components help protect the cable-entry point against dust, moisture, cable pulling, and mechanical movement.
2. Typical Technical Characteristics
| Model | NCG-P13L-12 or NCG-P13L-9 |
| Specification | PG13.5 |
| Cable range | 6-12mm or 5-9mm |
| Thread length | 15mm (lengths can be customized as per client's requirements) |
| Appearance | Dome type |

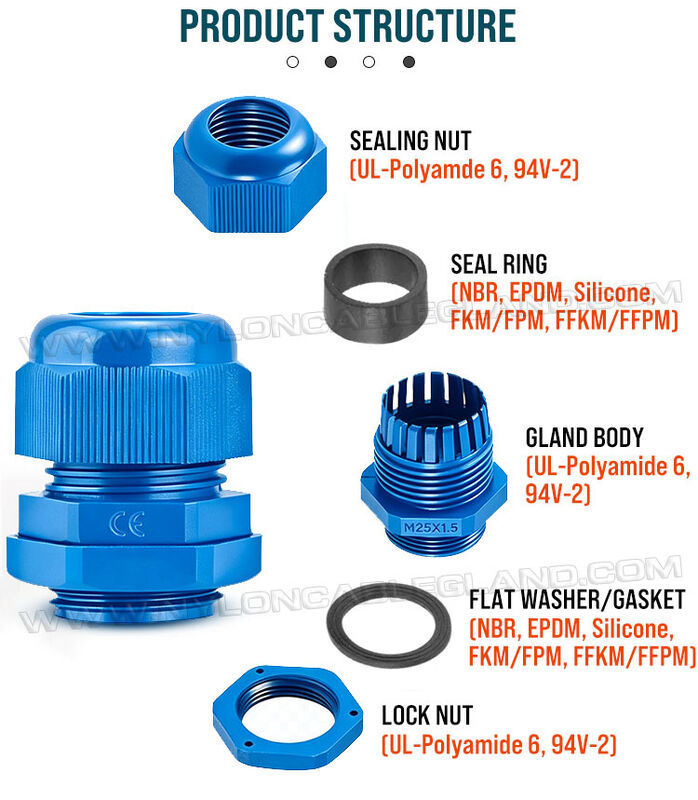

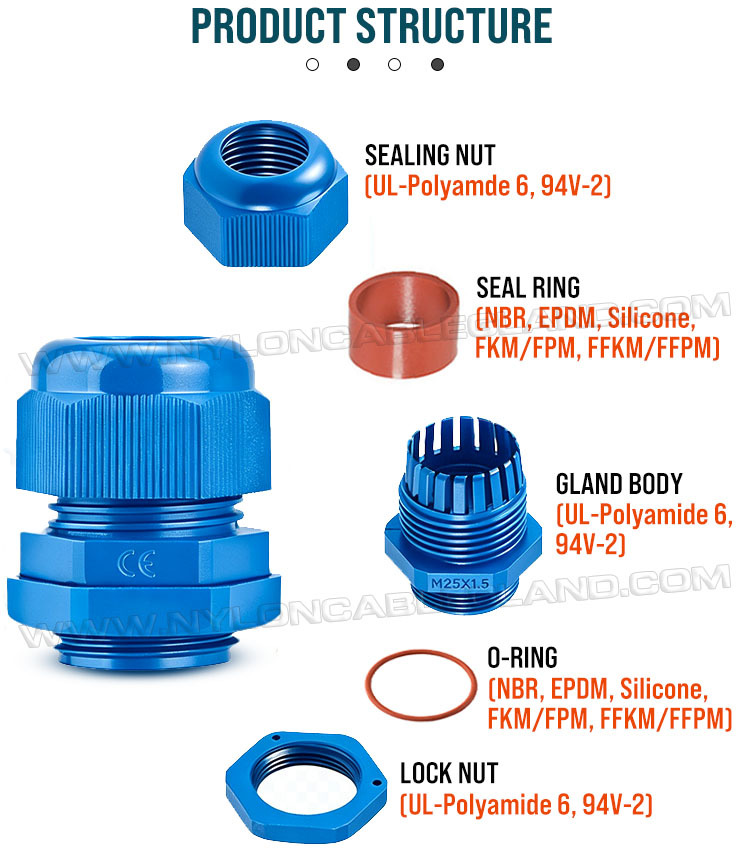

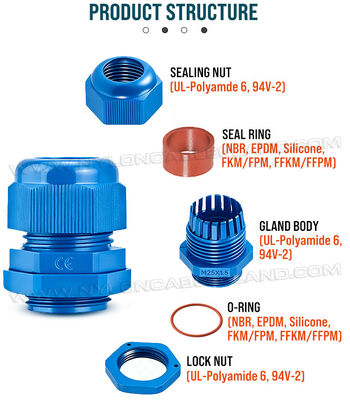

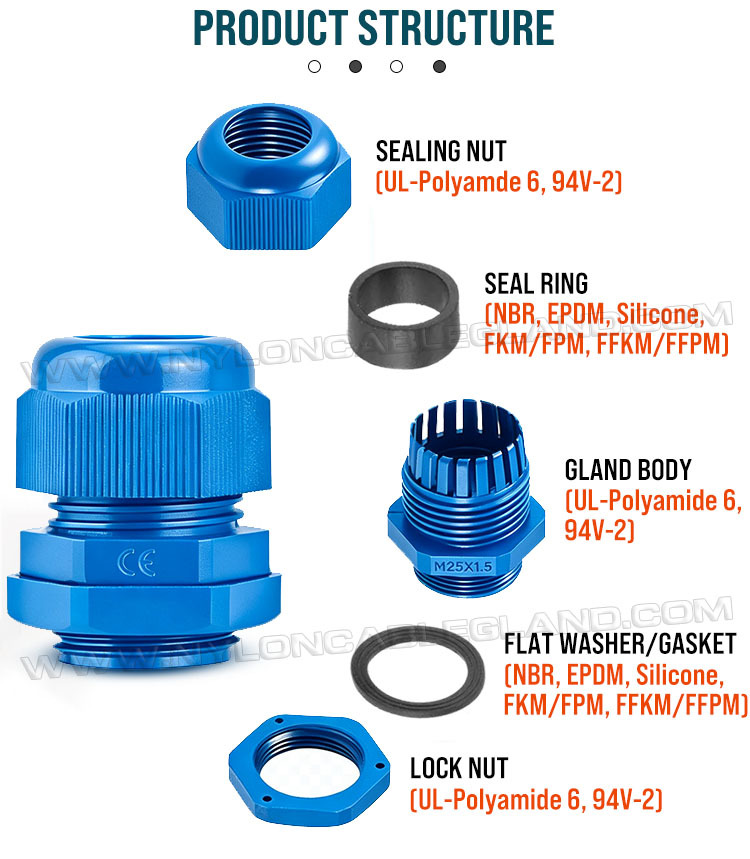

| Material | Polyamide 6 for plastic components (also available in Polyamide 66) |
| Material | NBR for rubber components (also available in EPDM, Silicone, FKM / FPM or FFKM / FFPM) |
| Protection | IP68 & IP69K |
| Color | blue, red, green, orange, yellow, dark-gray, white or black (other colors can be customized upon request) |
| Working temperature | -40 ℃ to +100 ℃ |
| Feature | insulation, high waterproofness, resistant to corrosion |
| Certificate | CE, UKCA, ROHS, REACH, PAHS, UV, IP68, IP69K |
| OEM/ODM | available |
| Supply capability | 2,000,000 pieces per month |
| Application | electrical, electronic, shipbuilding, railway, petrochemical, etc. |
| Sample | available |
| Delivery time | normally 8-12 days after confirmation of orders |
| Payment mode | T/T in advance, Western Union, L/C at sight |
| Shipment terms | shipped by courier (EMS / TNT / DHL / UPS / FEDEX); shipped by sea or by air; |
| Export packaging | (A) standard packaging: 100pcs per polybag + neutral label + export carton; (B) OEM packaging: 1: colorful printing poly bag + export carton 2: colorful inner box + export carton 3: OEM label, inner box, blister |
3. What Features And Properties Does It Have?
1. Extended connecting thread
The long threaded section provides more engagement with thick panels and enclosure walls. It can also make it easier to secure the gland using a locknut when the enclosure does not have a suitable internal thread.

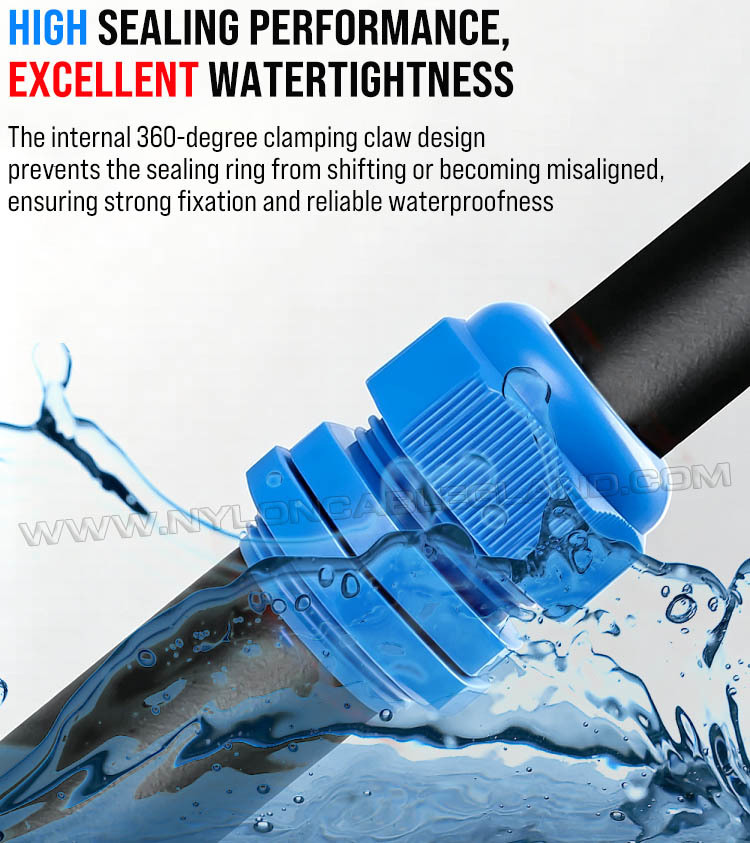

2. Water and dust protection
With a suitable sealing design and correct installation, all our models achieve IP68 / IP69K protection.
3. Cable clamping and strain relief
The compression mechanism grips the cable to help prevent accidental pulling, movement, and damage at the cable entry.
4. Electrical insulation and corrosion resistance
The non-metallic body provides electrical insulation and does not rust like metal. These properties make plastic glands useful in many electrical installations and humid environments.

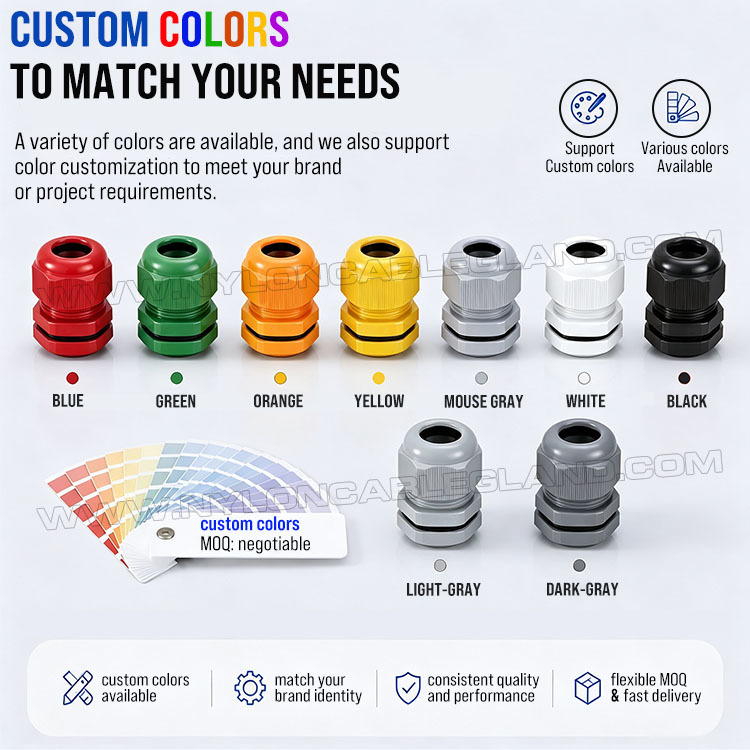

5. Multiple colors and easy identification
Different colors can distinguish circuits, cable functions, machine zones, or customer-specific wiring systems. They also allow equipment manufacturers to coordinate cable-entry components with enclosure designs.
6. Temperature and chemical resistance
Performance depends on the plastic grade, seals, and operating environment. Our long-thread version in PA66 has a wide temperature range from -40°C to +100°C.
4. Where Is It Mainly Used?
1. Electrical control panels and distribution cabinets
Used where power, signal, and control cables enter electrical cabinets. The long thread is useful when the panel wall is thicker than a standard gland can accommodate, while different gland colors may help technicians identify cable groups.
2. Industrial machinery and automation
Installed on machine housings, junction boxes, sensors, and control equipment. The gland helps secure cables and reduces movement at the entry point, supporting reliable electrical connections.
3. LED lighting and outdoor electrical equipment
Used in lighting housings, outdoor control boxes, and other equipment exposed to moisture or rain. Select UV-resistant materials and the appropriate IP-rated product for outdoor service.
4. Solar power and renewable energy systems
Used in suitable photovoltaic enclosures, monitoring equipment, and control boxes for cable routing and sealing. UV resistance, temperature limits, and enclosure certification are particularly important outdoors.
5. Telecommunications and networking equipment
Used in communication cabinets, network enclosures, and equipment housings. Color coding can help distinguish individual cable groups or system functions during installation and maintenance.
6. Instrumentation and electronic equipment
Suitable for instrument housings, monitoring devices, and electronic control boxes that require secure cable entry. The appropriate gland size, seal, and thread must match the cable and enclosure.
5. Summary
A color plastic cable gland nylon polyamide with a long thread is a practical cable-management and sealing component for electrical enclosures, particularly those with thick mounting walls or panels.
Its main body is commonly manufactured from nylon PA6, while NBR or EPDM seals provide the required sealing performance. Key advantages include extended mounting length, cable retention, electrical insulation, corrosion resistance, optional water and dust protection, and multiple color choices for visual identification.
6. FAQ
Are you a manufacturer?
We are manufacturers and traders, and we have rich experience in this industry for 20 years.
Can I get a sample?
Free samples will be available, but the shipping cost for samples needs to be covered by you.
What is your minimum order quantity (MOQ)?
Please tell me the details of what you want the requirements, such as product, size and quantity, and once we get it from you, I will tell you the MOQ.
How long does the delivery take after I place my order?
Usually, our delivery time is 4-8 days after receiving the deposit.
What about quality and warranty?
We have a strict quality inspection system from raw materials to finished products. We can send you samples first to check the quality. We guarantee sample quality and mass production as well.
What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Can you customize products and packaging?
Sure. We can customize products and packaging as you need, including logo, design and size.
Do you have any inventory products?
According to your request, we have stock of standard models. Some special products will be newly produced based on your order.
