| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68, IP69K |
| Model Number: | PG13.5 / M20x1.5 |
| Minimum Order Quantity: | 500pcs |
| Price: | very competitive prices |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 5000000pcs / month |
| Material: | UL-approved PA6, 94V-2 | Size: | Full Sizes |
|---|---|---|---|
| Standard Colors: | Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request) | Thread Type: | PG Thread |
| Protection Level: | IP68 | Quality Grade: | High Quality (8-15 Years Of Long Life For Indoor Application) |
| Main Advantages: | Waterproof & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, UV Stabilized, An |
| Place of origin: | Zhejiang, China |

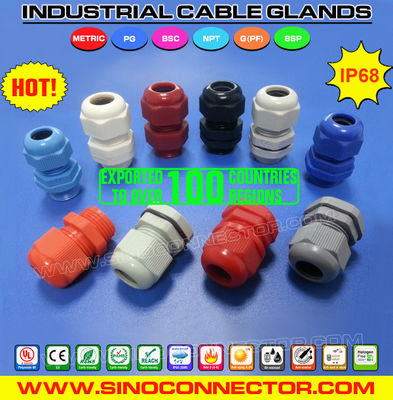

| Product name: | Cable Gland PG13.5 (M20) Nylon IP69K, Adjustable 6-12mm Cable Gland IP68 Waterproof Connector with O-ring |
| Sizes available: |
PG13.5 / M20x1.5 (clamping range: 6-12mm) |
| Raw material: | UL-approved new Polyamide 66, flammability 94V-2 for Sealing Nut, Locknut & Body (94V-0 material is optional) |
| NBR or weatherproof EPDM rubber for Seal & Washer (O-ring) | |
| Standard colors: | grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer or O-ring) |
| Thread lengths: | Short thread or long thread is available |
| Thread system: | According to the standard DIN40430 / EN 60423 |
| Operation temp.: |
Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications (ordinary quality is available on request) |
| OEM service: | Yes, available |
| Supply capability: | 5,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
