IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, ROHS, REACH, IP68
Model Number: PG7~PG21 / M12x1.5 ~ M30x1.5
Minimum Order Quantity: 200pcs
Price: factory prices
Packaging Details: standard export packing (special packing also available on request)
Delivery Time: normally 8-10 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 500000pcs / month
Detail Information
Material: Stainless Steel For Spiral Protector Color: Metallic Tone
Size: Full Sizes Protection Level: IP68

Product Description

IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector !

Applications:
Designed with anti-bending spiral spring & wide cable clamping range, IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector offer excellent cable protection against excessive twist at the bending point to reduce the risk of break to avoid electric leakage. With the characteristics of strong tensile strength, high sealing performance, good security and stability & sustainable submersion in the water 50 meters, such Glands are widely applied for connecting and fastening flexible cables or wire on electrical equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, surveillance cameras, plant engineerings, installations, meters and instruments, etc.

Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.

About us:
Founded in 2005, we are one of the most professional manufacturer of Cable Glands, Conduit Fittings, Cable Ties in China, we have had more than 18 years of rich production experience and technology in the industry of cable accessories. With strong strength, reasonable prices, complete specs and good services, our products have been exported to more than 100 countries and regions and have won good reputation among customers. Welcome customers from home and abroad to work with us!

Descriptions:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector
Sizes available:

PG7, PG9, PG11, PG13. 5, PG16, PG21
M12x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M25x1.5, M27x1.5, M28x1.5, M30x1.5

Raw material: Nickel-plated Brass for Locknut &Body
UL-approved nylon 66, 94V-2 for Clamping Claw
Stainless Steel 1.4310 / ASTM301 / SUS301 for Sealing Nut (Spiral Protector)
NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber)
Standard colors: Metallic color
Main advantages: Exquisite workmanship and beautiful good-looks, unique design of claws and seals can provide strong strain relief and protect cables from excessive bending and twisted to reduce the risk of failure. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, ROHS, REACH, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths: Short thread & long thread are available
Thread system: PG: According to Germany standard DIN40430 & Metric: according to the standard EN60423
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
OEM service: Yes, available
Supply capability: 1,000,000 pieces per month
Minimum quantity: 200 pieces
Samples available: Free samples available upon request
Delivery time: Normally 5-7 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing: 50 pieces / bag, 50pieces /color box, special packing can be customized as requested































Pictures:

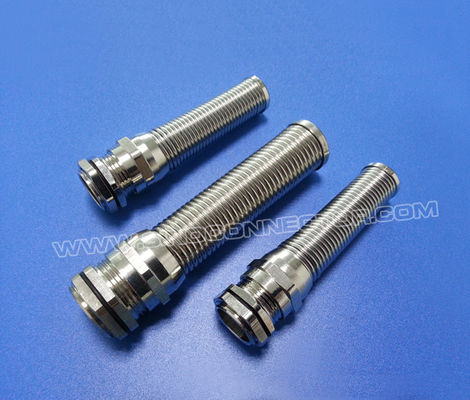

IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector

IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector 1

IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector 2

IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector 3

IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector 4

IP68 Liquid Tight Metal (Brass) Strain Relief Cable Glands with Spiral Flex Protector 5
