Nickel-plated Brass IP68 Watertight G Thread Cable Gland with Traction Relief (Pull Relief) for Machines

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Sino Cable Gland Factory
Certification: CE, ROHS, REACH, IP68
Model Number: G series
Minimum Order Quantity: 500pcs
Price: very competitive prices
Packaging Details: standard export packing (special packing also available on request)
Delivery Time: normally 8-10 days
Payment Terms: T/T, L/C, Western union
Supply Ability: 2000000pcs / month
Detail Information
Features: Firmly Hold Cables To Provide Extra Pullout Resistance Material: UL-approved PA6 For Plastic Insert
Size: G Series Protection Level: IP68

Product Description

Nickel-plated Brass IP68 Watertight G Thread Cable Gland with Traction Relief (Pull Relief) for Machines

Applications areas:
Strain relief (traction relief) cable glands with 2 cable clamps and 2 pressing screws provides extra resistance to pullout, mainly for connecting and securing flexible cables or wires to provide an extra protection against pull-out & traction, dust, water, oil, etc. With its outstanding ability in weather resistance, wide clamping range, strong strain relief, high sealing performance, such glands are widely used in the electrical distribution boxes/ cabinets, moving machines parts, automatic control, plant engieering, etc.


How to use:
Mount gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position, finally tighten the two clamping screws.



Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.

About us:
We are one of the most professional manufacturer of Cable Glands in China. Currently we manufacture and export Nylon Cable Glands & Metal Cable Glands with PG, Metric, NPT, G, BSC & BSP Threads. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!

Description:
Brand name: Sino Cable Gland Factory
Place of origin: Zhejiang, China
Product name: Nickel-plated Brass IP68 Watertight G Thread Cable Gland with Traction Relief (Pull Relief) for Machines
Sizes available:

G1 / 4", G3 / 8", G1 / 2", G3 / 4", G1", G1-1 / 4", G1-1 / 2", G2"

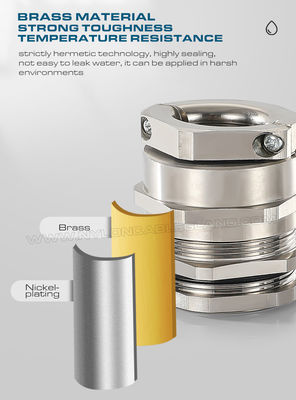

Raw material: Nickel-plated Brass for Locking Nut, Sealing Nut & Body
UL-approved nylon 66, 94V-2 for Clamping Claw
NBR for Seal & O-Ring (also available in weatherproof EPDM rubber or Silicone rubber)
Standard colors: Metallic color
Main advantages: Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications: CE, REACH, ROHS, IP68
IP protection: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths: Short thread & long thread are available
Operation temp.: Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
OEM service: Yes, available
Supply capability: 2,000,000 pieces per month
Minimum quantity: 200 pieces
Samples available: Free samples available upon request
Delivery time: Normally 8-10 days after confirmation of orders
Payment terms: T/T in advance, Western Union, L/C at sight
Shipment terms: EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air
Export packing: 100 pieces / bag, 50pieces /color box, special packing can be customized as requested






























Pictures:
Nickel-plated Brass IP68 Watertight G Thread Cable Gland with Traction Relief (Pull Relief) for Machines

Nickel-plated Brass IP68 Watertight G Thread Cable Gland with Traction Relief (Pull Relief) for Machines 1

Nickel-plated Brass IP68 Watertight G Thread Cable Gland with Traction Relief (Pull Relief) for Machines 2

Nickel-plated Brass IP68 Watertight G Thread Cable Gland with Traction Relief (Pull Relief) for Machines 3
