| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| Model Number: | SNCG-M20L-12 |
| Minimum Order Quantity: | 200pcs |
| Price: | very competitive prices |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 5000000pcs / month |
| Features: | Resistant To Dust, Water, Corrosion & Aging, Durable, Good Insulation | Product Name: | Elongated Cable Gland, Lengthened Cable Gland |
|---|---|---|---|
| Material: | NBR, EPDM, Viton, SILICONE For Sealing Parts | Size: | M20x1.5 (clamping Range: 6-12mm) |
| Protection Level: | IP68 / IP69K | Color: | Different Colors Available Upon Request |

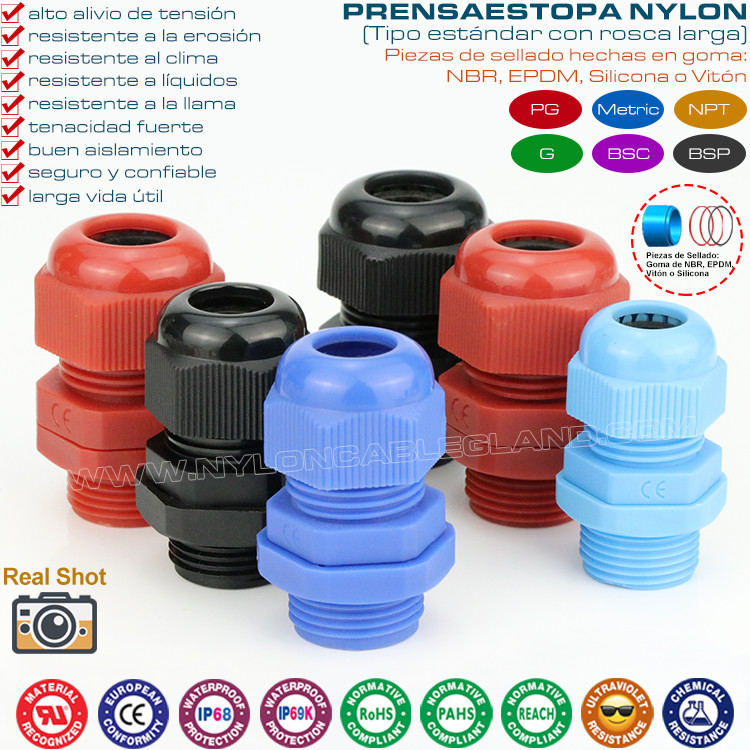

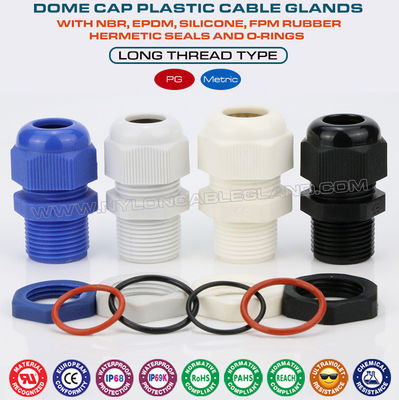

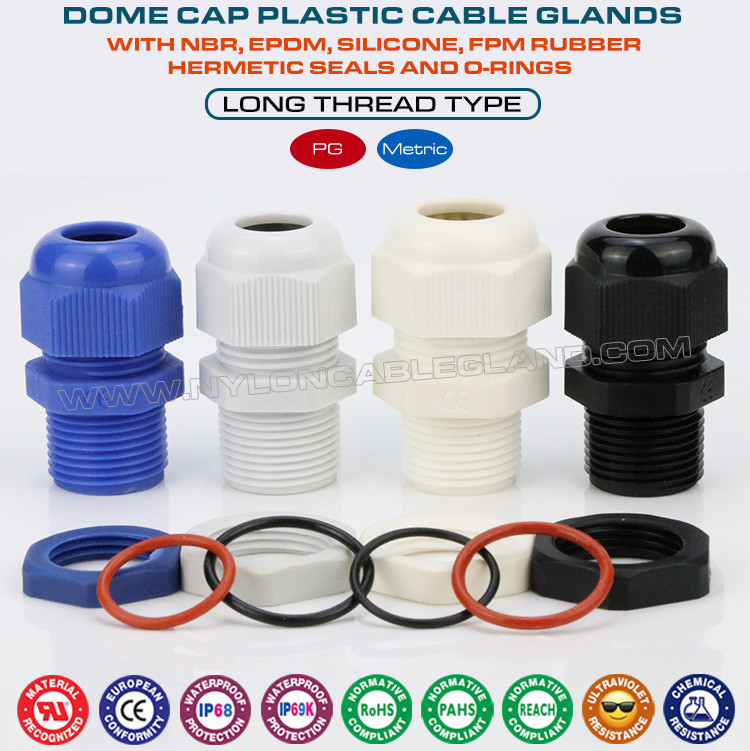

Nylon Elongated M20 Cable Gland, IP68 Waterproof 6-12mm Lengthened Cable Gland Protector Long Thread Gland Connector

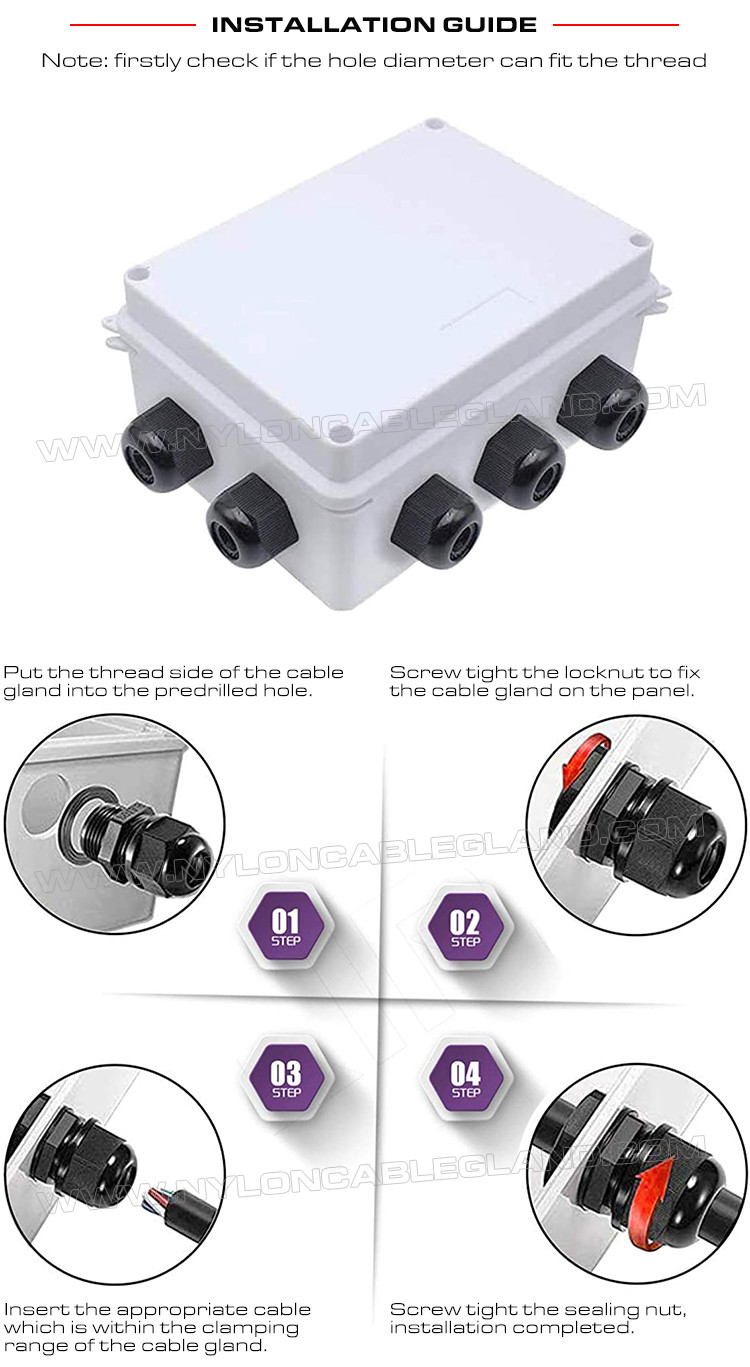

How to use:
Mount gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position.
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | Nylon Elongated M20 Cable Gland, IP68 Waterproof 6-12mm Lengthened Cable Gland Protector Long Thread Gland Connector |
| Sizes available: | M20x1.5 (clamping range: 6-12mm) |

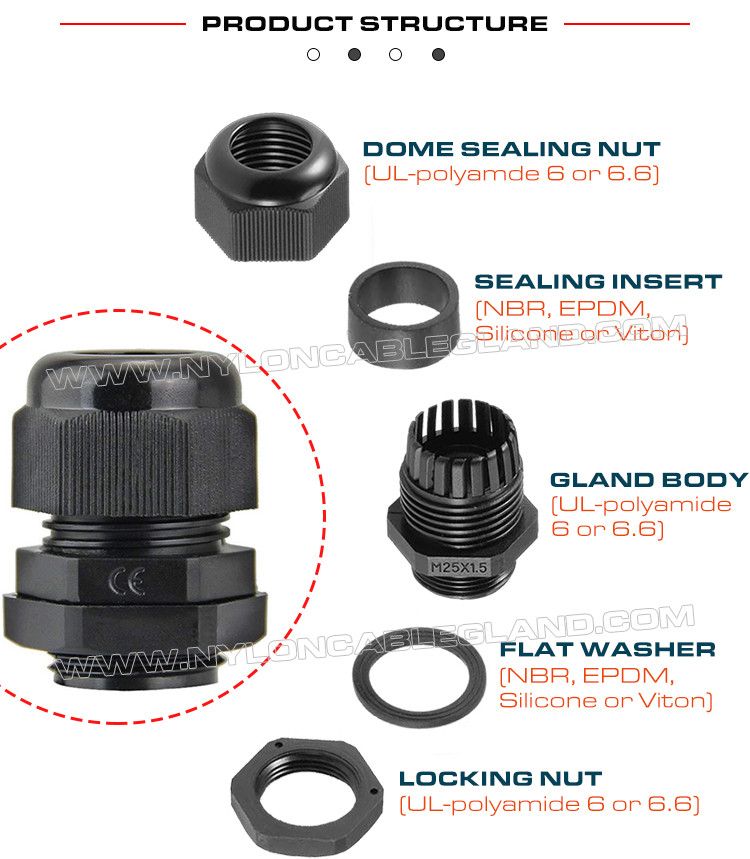

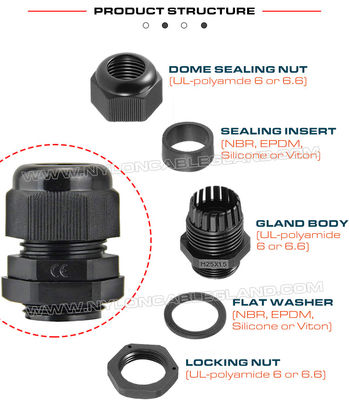

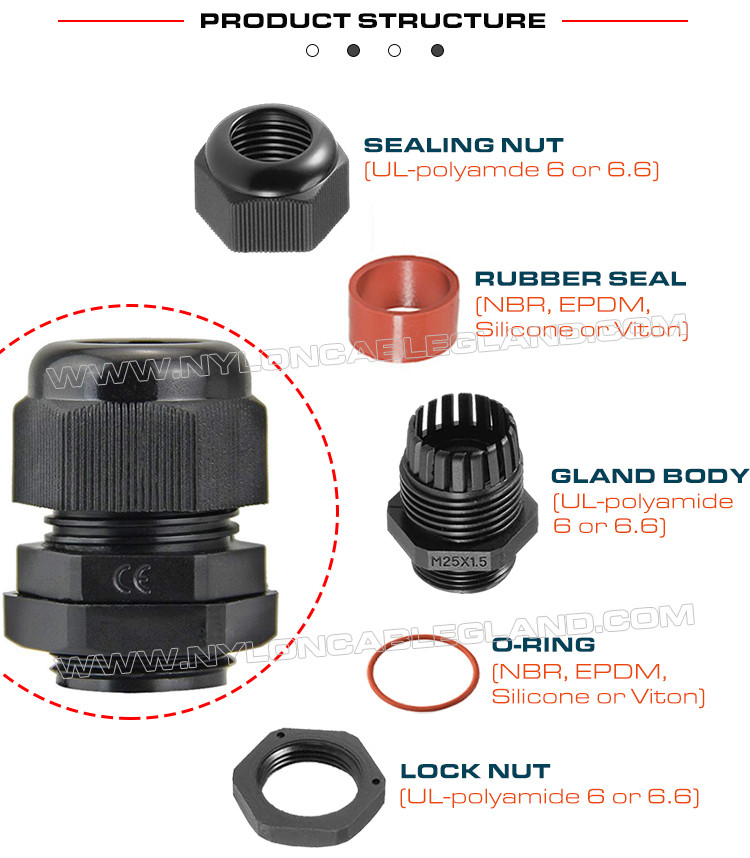

| Raw material: | UL-approved new Polyamide 66, 94V-2 for Sealing Nut, Locknut & Body (94V-0 material is optional) |
| NBR or EPDM rubber for Seal & Washer | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Certifications: | CE, ROHS, PAHS, REACH, IP68, IP69K, UV, HF |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | 15mm long thread |
| Thread system: | According to the standard EN 60423 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 1000 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
