Place of Origin: | Zhejiang, China |
---|---|
Brand Name: | Sino Cable Gland Factory or OEM |
Certification: | CE, ROHS, REACH, IP68, IP69K |
Model Number: | M20x1.5 |
Minimum Order Quantity: | 200pcs |
Price: | Direct sales prices from factory |
Packaging Details: | Standard export packing (special packing also available on request) |
Delivery Time: | Normally 8-10 days |
Payment Terms: | T/T, L/C, Western union |
Supply Ability: | 3000000pcs / month |
Features: | Resistant To Salt Water, Mild Acids, Alcohols, Oils, Greases And Common Solvents | Name: | Metal Waterproof Cable Gland |
---|---|---|---|
Material: | Brass Or Copper | Seal & O-ring: | NBR, EPDM, FKM Or SILICONE Rubber |
Clamping Claw: | UL-approved PA6, 94V-2 | Protection Level: | IP68/IP69K |
Thread System: | According To The Standard EN60423 | Operating Temp.: | Static:-40℃ To100℃, Short-term:120℃. Dynamic:-20℃ To 80℃, Short-term:100 ℃ |
【High-quality Material】: Made from high-quality brass or copper material, with clear tension thread, strong toughness, strong water resistance, long-lasting use. This product is not only waterproof, anti-air, salt-proof, but also resistant to acids and alkalis, alcohol, grease and general solvents, and is resistant to corrosion.
【Waterproof Peformance】: The cable gland waterproof rating of IP68, It has good water resistance and will not seep through long-term use. Resistant to salt water, mild acids, alcohols, oils, greases and common solvents. Provides long-term protection for your indoor and outdoor applications.

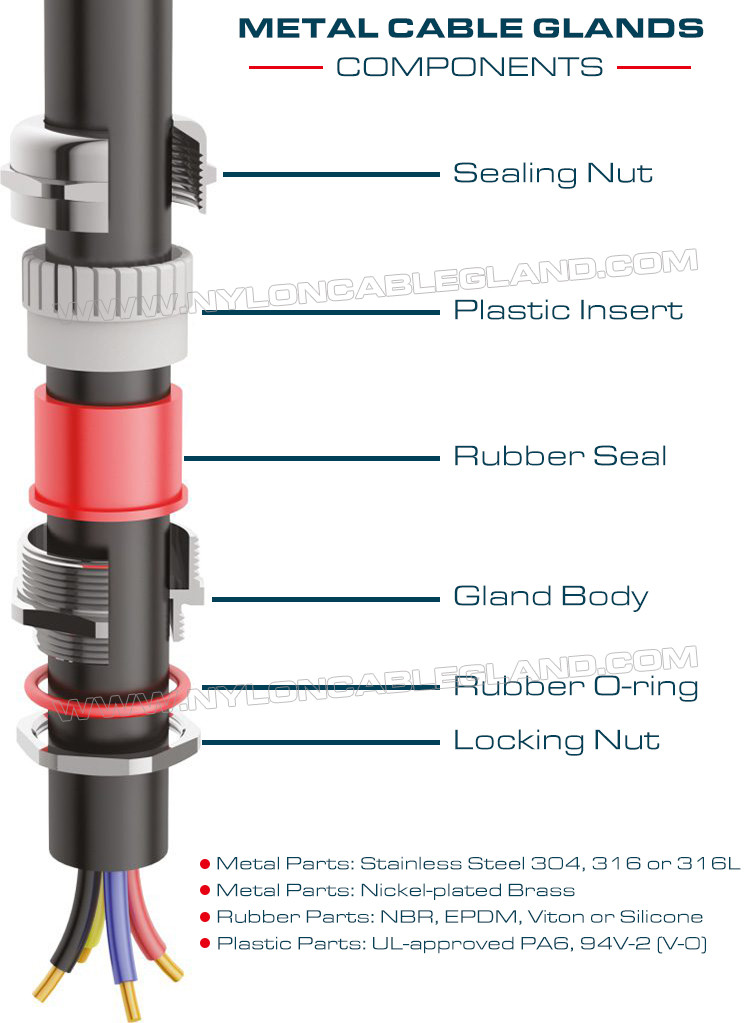

【Perfect Design】: The joint structure consists of tight cap, waterproof inner core, main body and nut, the clamping range is large, the tightening cap is specially designed, the cable fixing tension is strong, and no damage is caused to the motor. Waterproof structure design, rigorous thread, exquisite technology.
【Easy To Install】: It is not necessary to disassemble the fixing head of the waterproof connector, and the cable can be directly inserted into the tightness, which is convenient and efficient.
【Applications】Waterproof cable glands are made of brass or copper with nickel plating, which also passed the salt spray test, widely used in control motors, generators, navigation, aviation, transportation, surveillance systems, audio-visual audio, LED lighting equipment, transportation, office equipment wire and cable fixing, small size can be used in small cabinets, space shortage, refrigeration and air conditioning, household appliances, measuring mechanical equipment, vehicle/marine equipment, communication equipment, and outdoor Harsh environment such as wire and cable engineering matching.
Founded in 2005, we are one of the most professional manufacturer of Cable Accessories in China. Currently we manufacture and export plastic cable glands, metal cable glands, stainless steel cable glands, corrugated tubes, pipe fittings, plastic cable ties, metal cable ties, cable clips, etc. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us !
Brand name: | OEM Brand Supplier |
Place of origin: | Zhejiang, China |
Product name: | Nickel-Plated Brass M20 Metric Cable Gland, IP68 Adjustable Waterproof Cable Connector for 6-12mm Cable |
Sizes available: | M20x1.5 (clamping range: 6-12mm) |
Raw material: | Nickel-plated Brass for Locking Nut, Sealing Nut & Body |
UL-approved nylon 66, 94V-2 for Clamping Claw | |
NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber) | |
Standard colors: | Metallic silver color |
Certifications: | CE, ROHS, REACH, IP68, IP69K |
IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
Thread lengths: | Short thread & long thread are available |
Thread system: | According to the standard EN60423 |
Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
OEM service: | Yes, available |
Supply capability: | 3,000,000 pieces per month |
Minimum quantity: | 500 pieces |
Samples available: | Free samples available upon request |
Delivery time: | Normally 5-7 days after confirmation of orders |
Payment terms: | T/T in advance, Western Union, L/C at sight |
Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
Export packing: | 100 pieces / bag, 50pieces /color box, special packing can be customized as requested |
