| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| Model Number: | PG7~PG48 |
| Minimum Order Quantity: | 500pcs |
| Price: | very competitive prices |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 5000000pcs / month |
| Size: | Full Sizes | Protection Level: | IP68 |
|---|---|---|---|
| Material: | Nylon | Standard Colors: | Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request) |
| Thread System: | According To The Standard DIN40430 | Quality Grade: | High Quality (6-12 Years Of Long Life For Indoor Application) |
| Main Advantages: | Weather Resistant & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, UV Stabili |
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | IP68 Watertight PG7~PG48 Nylon Insulated Electrical Cable Glands with Integral PG Screw Thread |
| Sizes available: | PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 |
| Raw material: | UL-approved Polyamide 66, 94V-2 for Sealing Nut, Locknut & Body (contact us for 94V-0 material). |
| Weatherproof and anti-aging EPDM rubber for Seal & Washer | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |

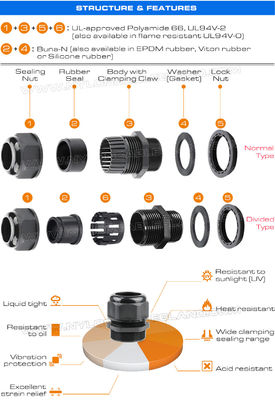

| Main advantages: | Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range, the anti-vibration sealing nut making a "click" sound can firmly hold and protect cables from becoming loose during the operation. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | Short thread and long thread are available |
| Thread system: | According to Germany standard DIN40430 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
| OEM service: | Yes, available |
| Supply capability: | 5,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
Specifications:
