| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, PAHS, REACH, SGS, IP68, IP69K |
| Model Number: | PG series |
| Minimum Order Quantity: | 1000pcs |
| Price: | very competitive prices from factory |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 5-8 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 3000000pcs / month |
| Product Name: | Nylon Waterproof Cable Gland | Material: | UL-approved PA66 |
|---|---|---|---|
| Flammability: | 94V-2 | Standard Colors: | Light-grey RAL7035, Black RAL9005 (other Colors Also Available On Request) |
| Connection Thread Type: | PG Connecting Thread | Quality Grade: | High Quality (6-10 Years Of Long Life For Indoor Application) |
| Main Advantages: | Waterproof & Liquid Tight, Resistant To Weak Acid & Alkaline, Corrosion-resistant, UV Stabilized, An |
How to use:

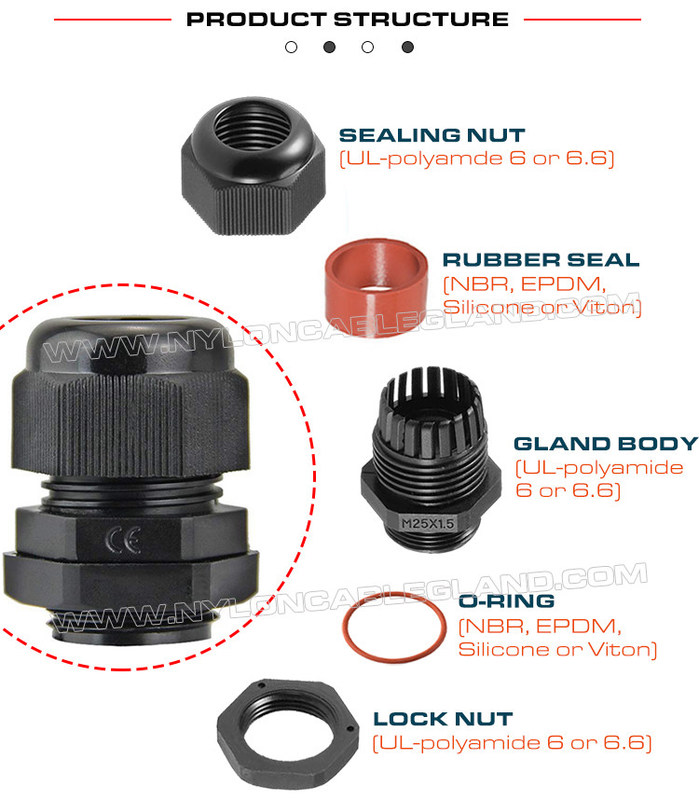

Mount cable gland body to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position.
| Producer: | OEM brand supplier |
| Place of origin: | Zhejiang, China |

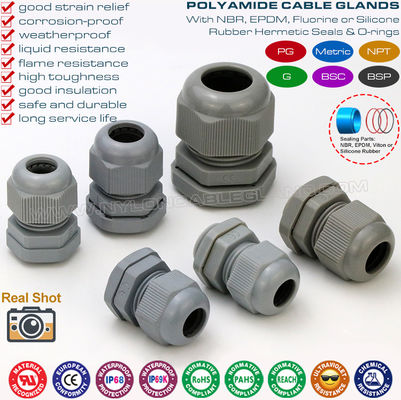

| Product name: | Waterproof PG Cable Glands, Nylon Polyamide, PG7-PG48, IP68 & IP69K, Grey RAL7035 / RAL7001 / RAL7005 |
| Sizes available: |
PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 |
| Raw material: | UL-approved new Polyamide 66, flammability 94V-2 for plastic parts (94V-0 material is optional) |
| NBR or EPDM rubber for sealing rings | |
| Colors: | Grey RAL7035, gray RAL7001, gray RAL7005 |
| Certificates: | CE, ROHS, PAHS, REACH, IP68, IP69K |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | Short thread & long thread are available |
| Thread system: | according to DIN 40430 |
| Operation temp.: |
Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 1000 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
