| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Sino Cable Gland Factory |
| Certification: | CE, ROHS, REACH, IP68 |
| Model Number: | PG & Metric Series |
| Minimum Order Quantity: | 200pcs |
| Price: | very competitive prices |
| Packaging Details: | standard export packing (special packing also available on request) |
| Delivery Time: | normally 8-10 days |
| Payment Terms: | T/T, L/C, Western union |
| Supply Ability: | 2000000pcs / month |
| Material: | Brass Or Copper | Seal & O-ring: | NBR, EPDM, VITON Or SILICONE Rubber |
|---|---|---|---|
| Plastic Insert: | UL-certified PA6, 94V-2 | Color: | Metallic Silver |
| IP Protection: | IP68 | Surface Treatment: | Nickel-plating |
| Advantage: | Provide An Extra Resistance To Pull-out And Stron Strain Relief |
How to use:
Mount cable gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position, finally tighten the two clamping screws.
Descriptions:
| Brand name: | OEM brand supplier |
| Place of origin: | Zhejiang, China |

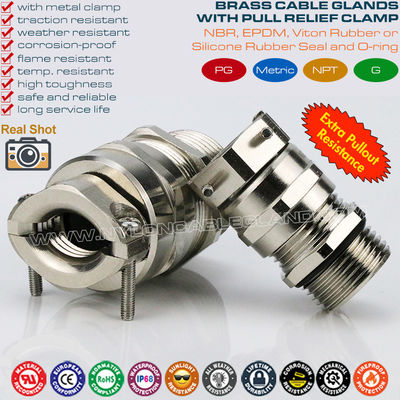

| Product name: | Metal Strain Relief Stress Relief PG Cable Gland, Brass Metric Cable Gland with Traction Relief (Pull Relief) |
| Sizes available: | * PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48. * M12, M14, M16, M18, M20, M22, M24, M25, M27, M30, M32, M36, M37, M40, M42, M47, M48, M50, M54, M56, M60, M63, M64. |
| Raw material: | Nickel-plated Brass for Locking Nut, Sealing Nut & Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw | |
| NBR for Seal & O-Ring (also available in weatherproof EPDM rubber or Silicone rubber) | |
| Standard colors: | Metallic silver color |
| Main advantages: | Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread lengths: | Short thread & long thread are available |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 2,000,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air |
| Export packing: | 100 pieces / bag, 50pieces /color box, special packing can be customized as requested |
Product pictures:
